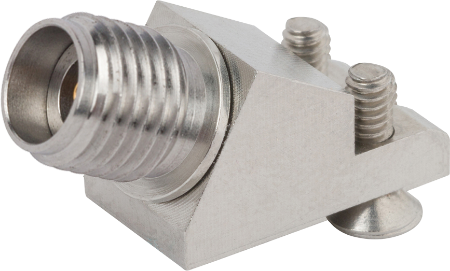

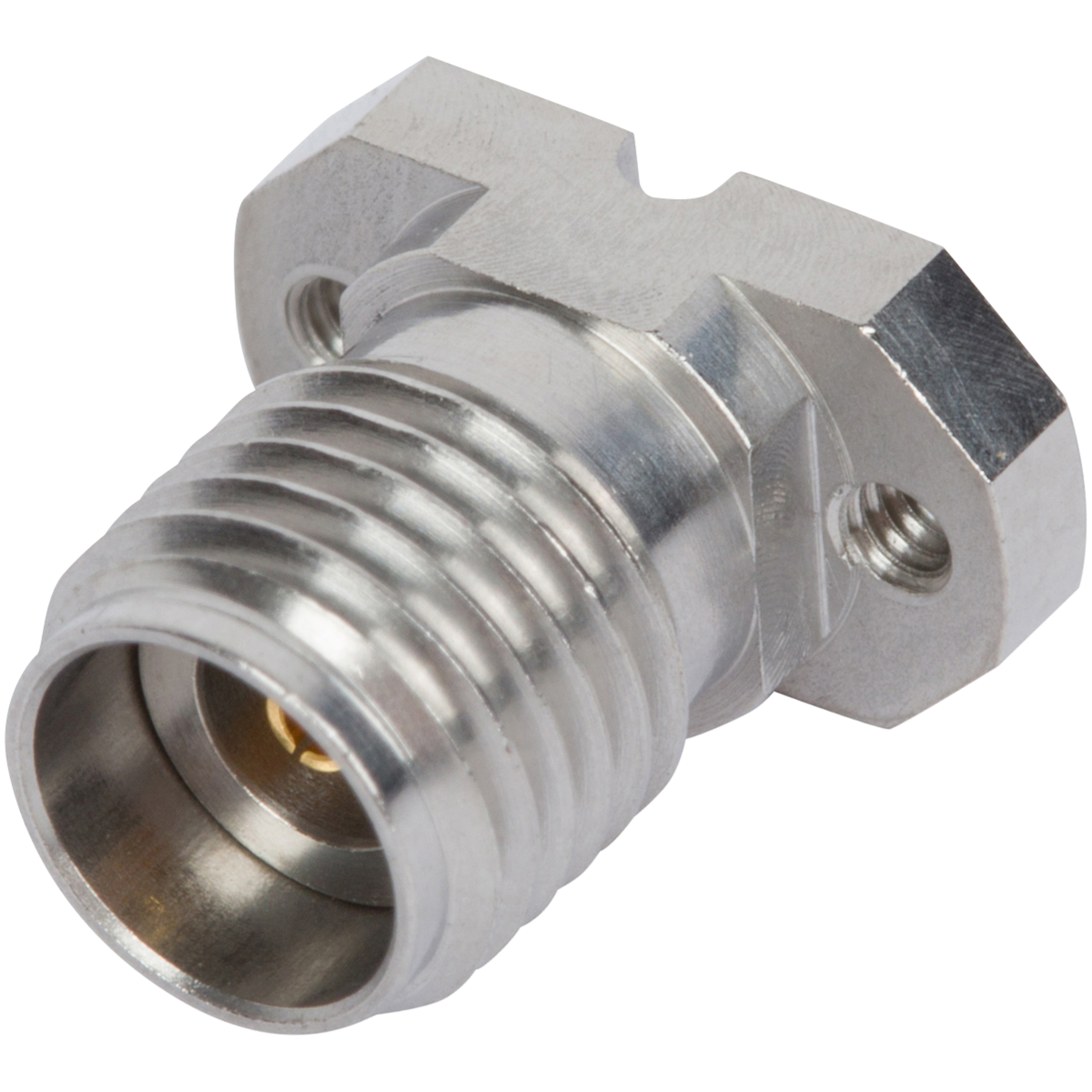

Attribute name | Attribute value |
---|---|
RF Series | 2.92 mm |
Gender | Jack (Female) |
Body Style | 2 Hole |
Orientation (Body) | 30° |
Mounting Type | PCB Vertical Launch |
Coupling | Threaded |
Number of Ports | Single |
Termination Style | Solder-free |
Finish | Passivated |
Electrical | |
Frequency | 40 GHz |
Impedance | 50 ohms |
Shielding Effectiveness | ≥ -100 dB |
Dielectric withstanding Voltage | 750 VRMS |
Mechanical | |
Mating Cycles | 500 |
Mating Torque | 7 - 10 in - lbs |
Intermateability | SMA |
Environmental | |
Temperature Rating | -65°C to +165°C |
Shock | MIL-STD-202, Method 213, Condition I |
Vibration | MIL-STD-202, Method 204, Condition D |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
