3mm Male PCB Solderless Surface Mount Shroud, SB
P/N: 012-80-487/020

In stock at Qty Order
Newark 93
Farnell 93
Mouser Electronics 80
Interstate Connecting Components 75
Heilind Electronics 25
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 3.4 lbs
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

EU REACH Regulation (EC) No. 1907/2006 Does not contain REACH SVHC

These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 3/18/2023 1:14:20 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family 3mm Board-to-Board
RF Series 3 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 3.4 lbs
Mating Cycles 500
Insertion Force - SB 2.8 lbs
Withdrawal Force - SB 2.5 lbs
Withdrawal Force - FD 3.0 lbs
Axial Misalignment .005
Radial Misalignment .007
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   1180-4009

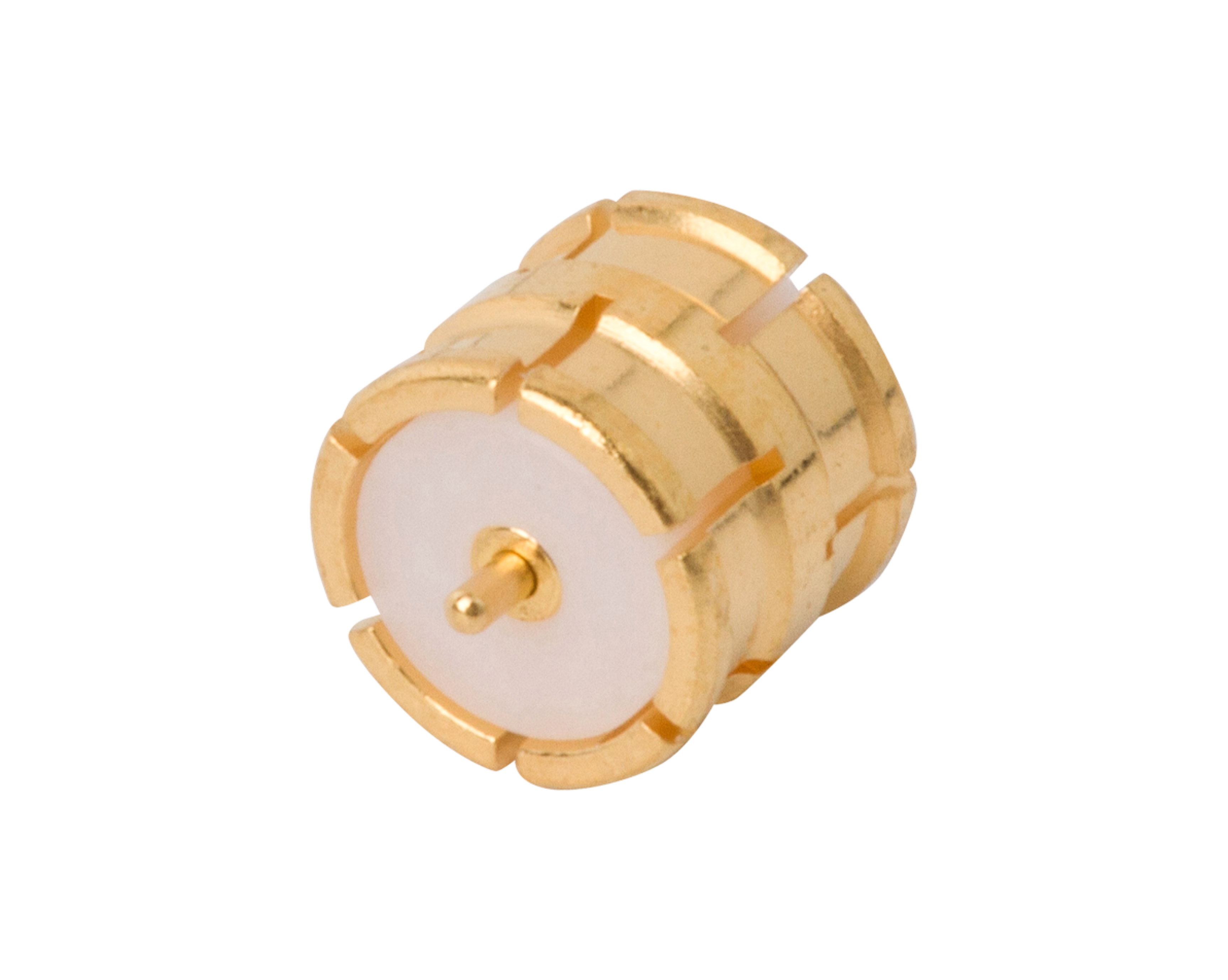

3mm Female to Female Bullet

Available Inventory: 209
1180-4009
3mm Adapters 1180-4009
Datasheet
Part #   012-80-488/020

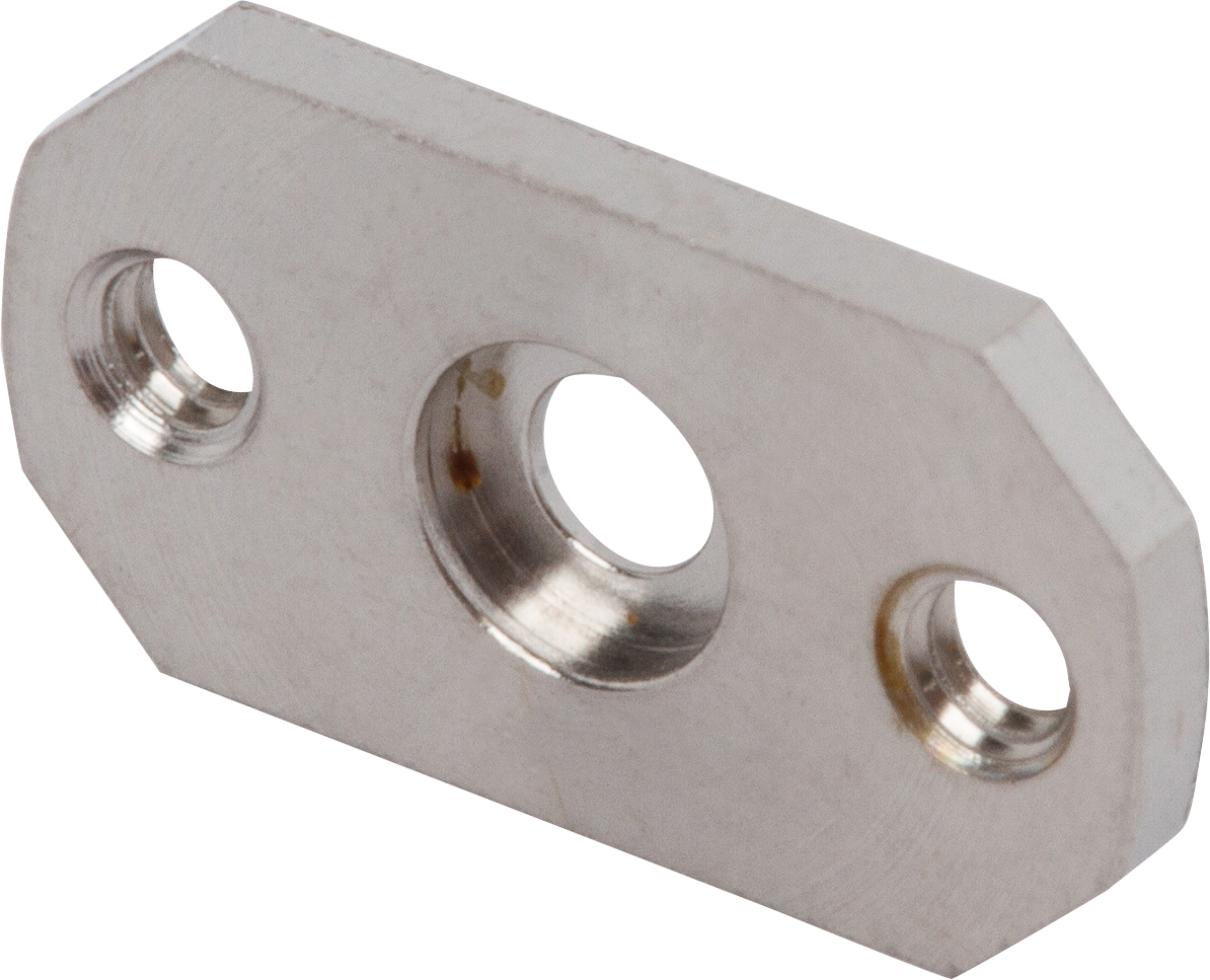

3mm Male PCB Solderless Surface Mount Shroud, FD

Available Inventory: 363
012-80-488/020
3mm Connectors 012-80-488/020
Datasheet
Part #   012-80-485/185

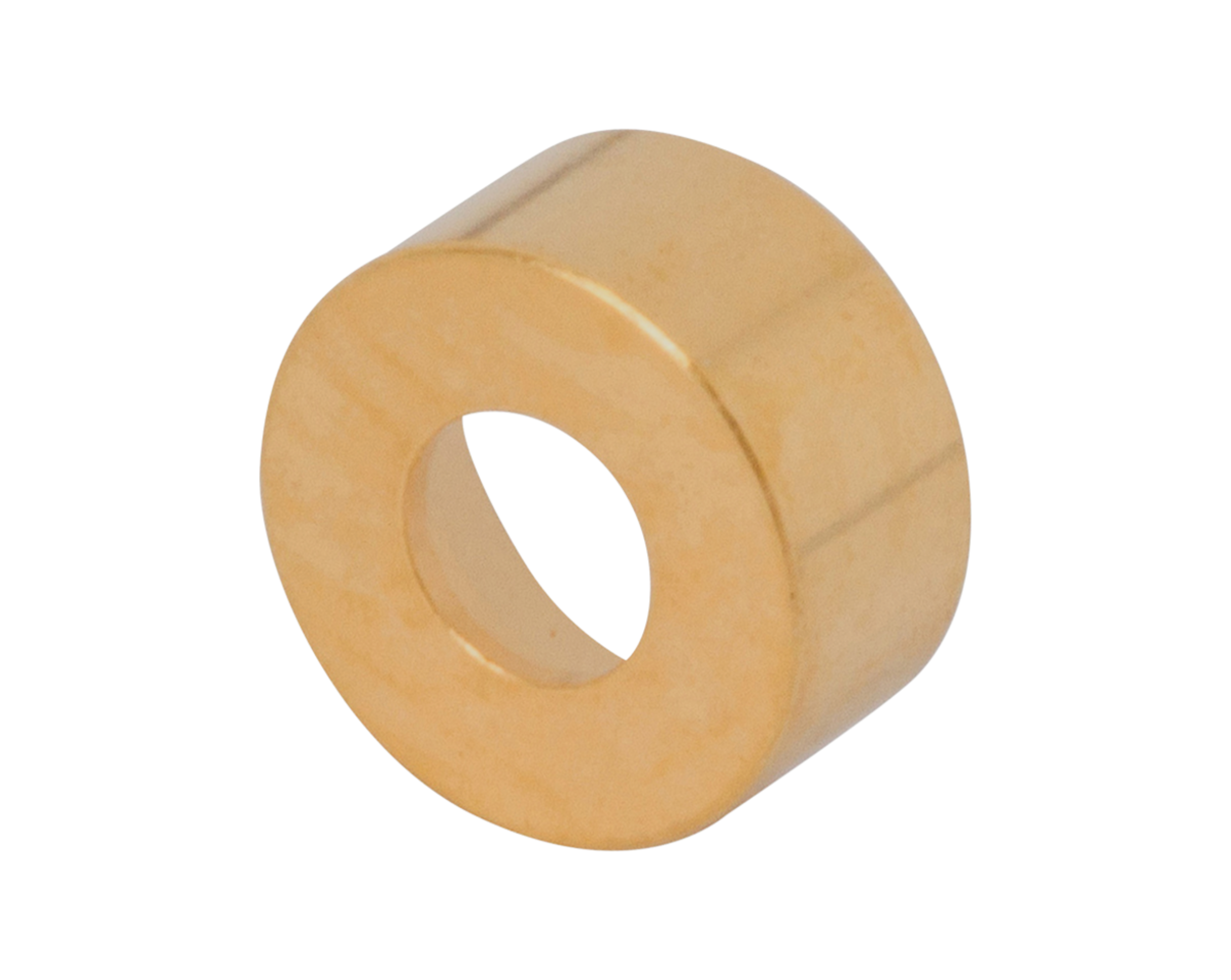

3mm Male PCB Surface Mount Shroud (Solder-On), SB
