P/N: 012-80-484/185

3mm Male PCB Surface Mount Shroud (Solder-On), FD

In stock at Qty Order
Interstate Connecting Components 44
Digi-Key Electronics 27
Newark 14
Heilind Electronics 14
Farnell 14
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 3 mm
Coupling Push-on
Termination Style Solder
Detent Full Detent
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Family 3mm Board-to-Board
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles 500
Radial Misalignment .007, .007
Insertion Force - SB 2.8 lbs, 2.8 lbs
Axial Misalignment .005, .005
Withdrawal Force - SB 2.5 lbs, 2.5 lbs
Insertion Force - FD 3.4 lbs, 3.4 lbs
Withdrawal Force - FD 3.0 lbs, 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Compliant

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 3 mm
Coupling Push-on
Termination Style Solder
Detent Full Detent
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Family 3mm Board-to-Board
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles 500
Radial Misalignment .007, .007
Insertion Force - SB 2.8 lbs, 2.8 lbs
Axial Misalignment .005, .005
Withdrawal Force - SB 2.5 lbs, 2.5 lbs
Insertion Force - FD 3.4 lbs, 3.4 lbs
Withdrawal Force - FD 3.0 lbs, 3.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

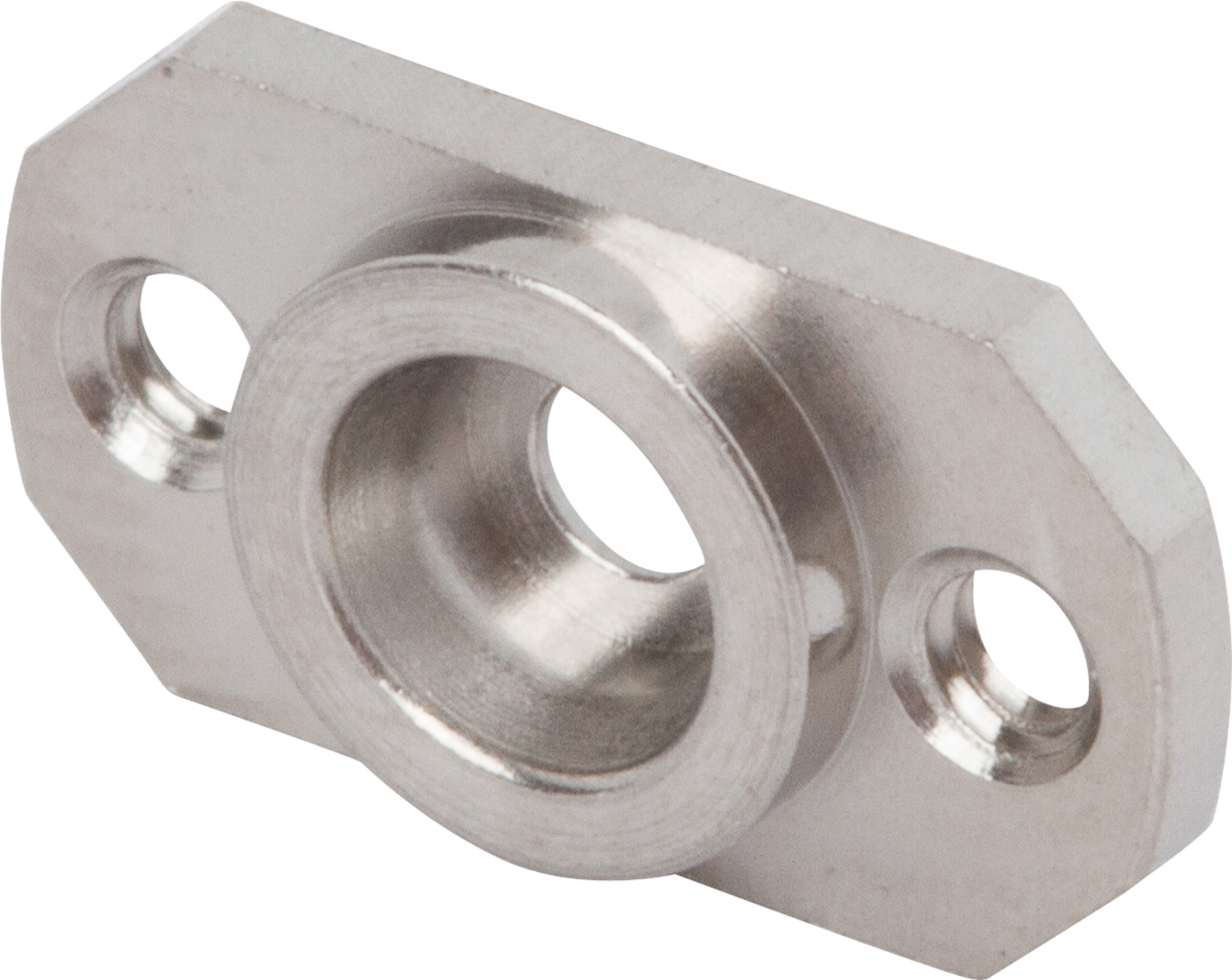

Part #   012-80-487/020

3mm Male PCB Solderless Surface Mount Shroud, SB

Available Inventory: 271
012-80-487/020
3mm Connectors 012-80-487/020
Datasheet

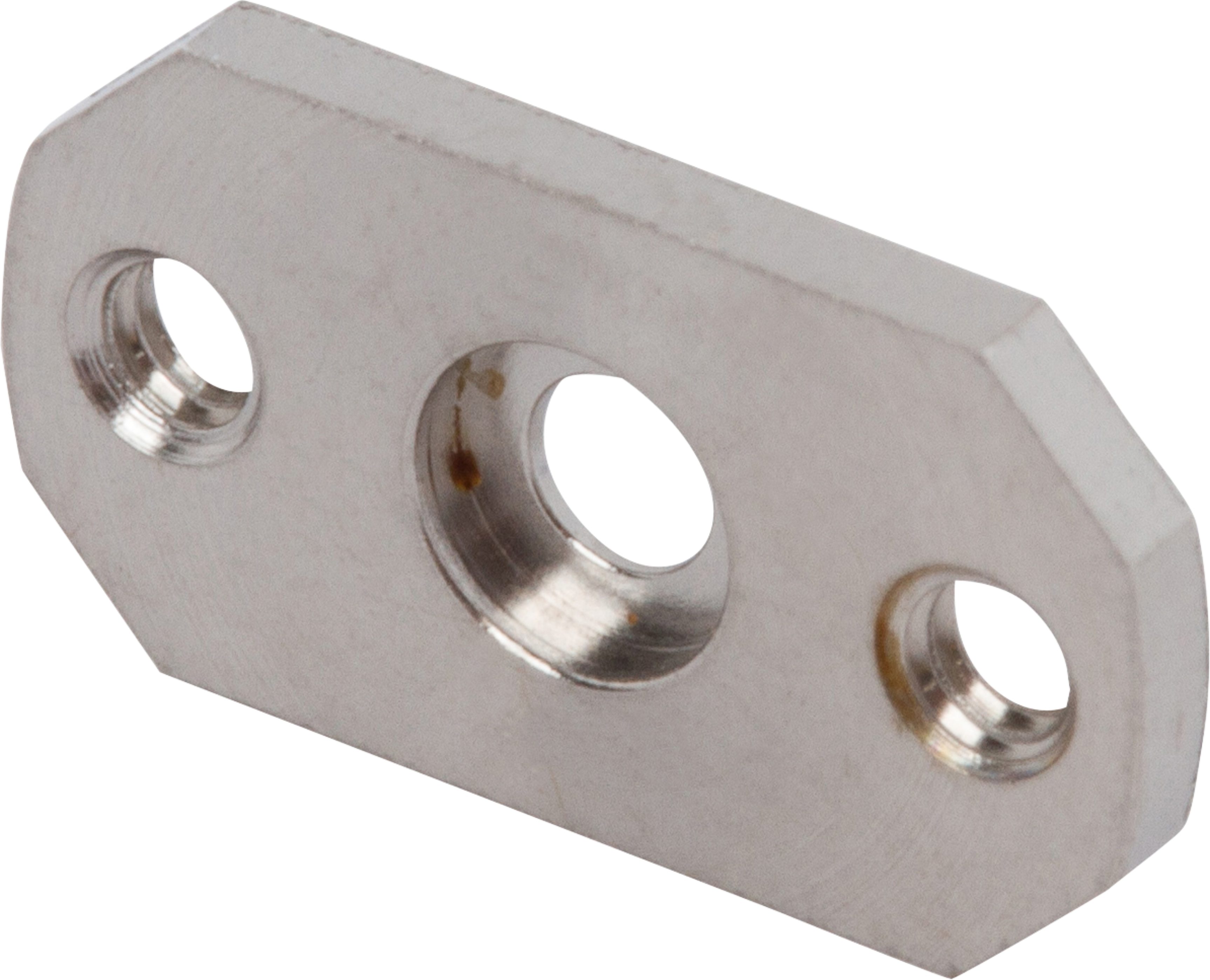

Part #   012-80-488/020

3mm Male PCB Solderless Surface Mount Shroud, FD

Available Inventory: 272
012-80-488/020
3mm Connectors 012-80-488/020
Datasheet

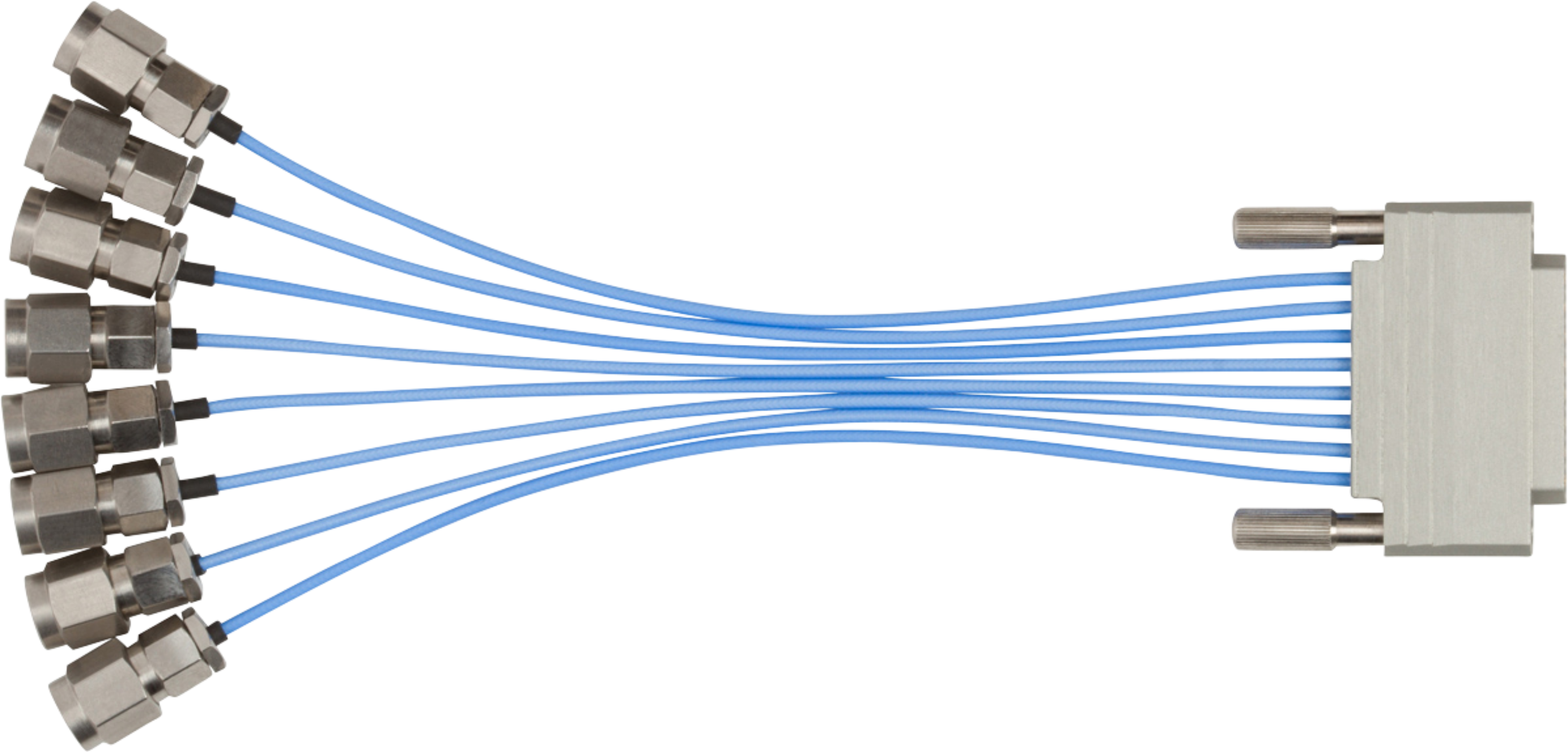

7038-0211
