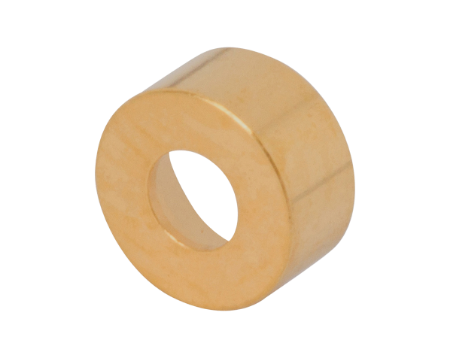

| Attribute name | Attribute value |
|---|---|
| Family | 3mm Board-to-Board |
| RF Series | 3 mm |
| Orientation (Body) | Straight |
| Gender | Plug (Male) |
| Coupling | Push-on |
| Detent | Smooth Bore |
| Mounting Type | PCB Vertical Launch |
| Termination Style | Solder |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force - SB | 2.8 lbs |
| Insertion Force - FD | 3.4 lbs |
| Withdrawal Force - SB | 2.5 lbs |
| Withdrawal Force - FD | 3.0 lbs |
| Axial Misalignment | .005 |
| Radial Misalignment | .007 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| EU RoHS Directive 2011/65/EU | Compliant These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds. |
| EU REACH Regulation (EC) No. 1907/2006 | Does not contain REACH SVHC These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:22:04 AM | |
