P/N: 7093-0185

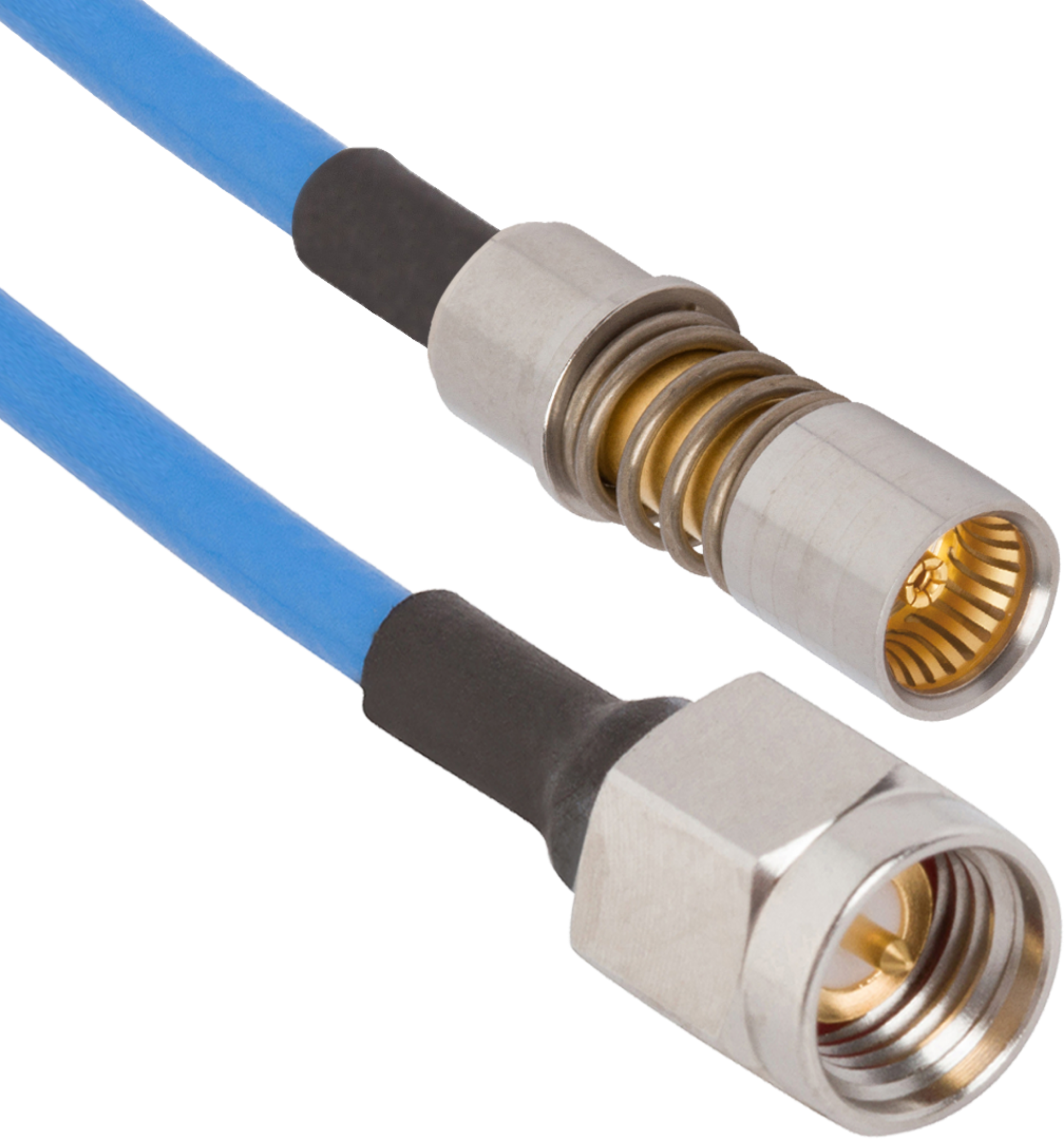

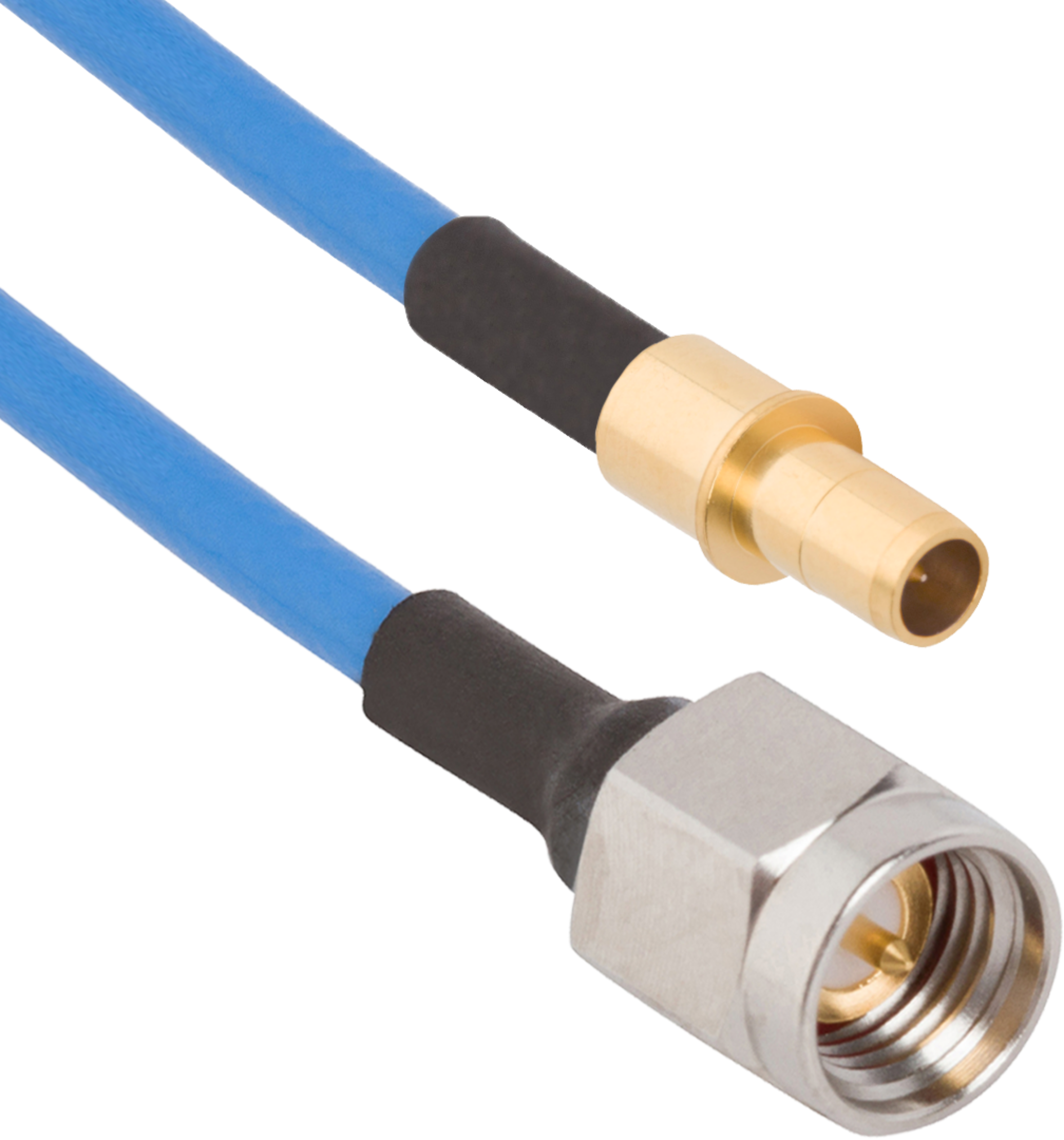

BMA (Size 8) D38999 Pin Contact to SMA Male 24" Cable Assembly for .141 Cable

In stock at Qty Order
Newark 25
PEI-Genesis 25
Farnell 25
Digi-Key Electronics 20
Mouser Electronics 19
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Pin
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Termination Style Solder
Frequency 18 GHz
Number of Ports Single
RF Series 2 SMA
Impedance 50 ohms
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.140 Flexible Coax
Cable Length 24"
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 5000
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
