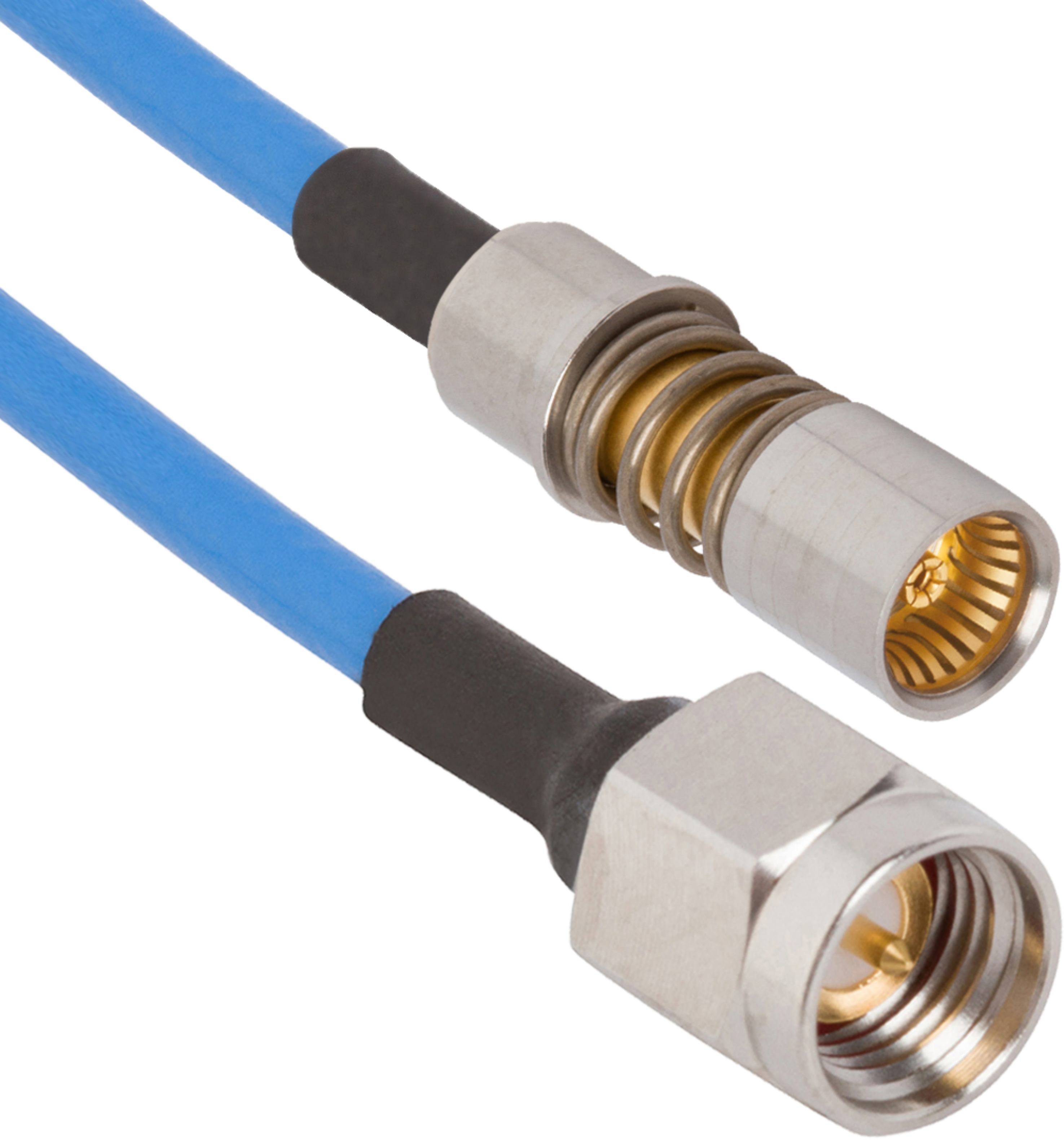

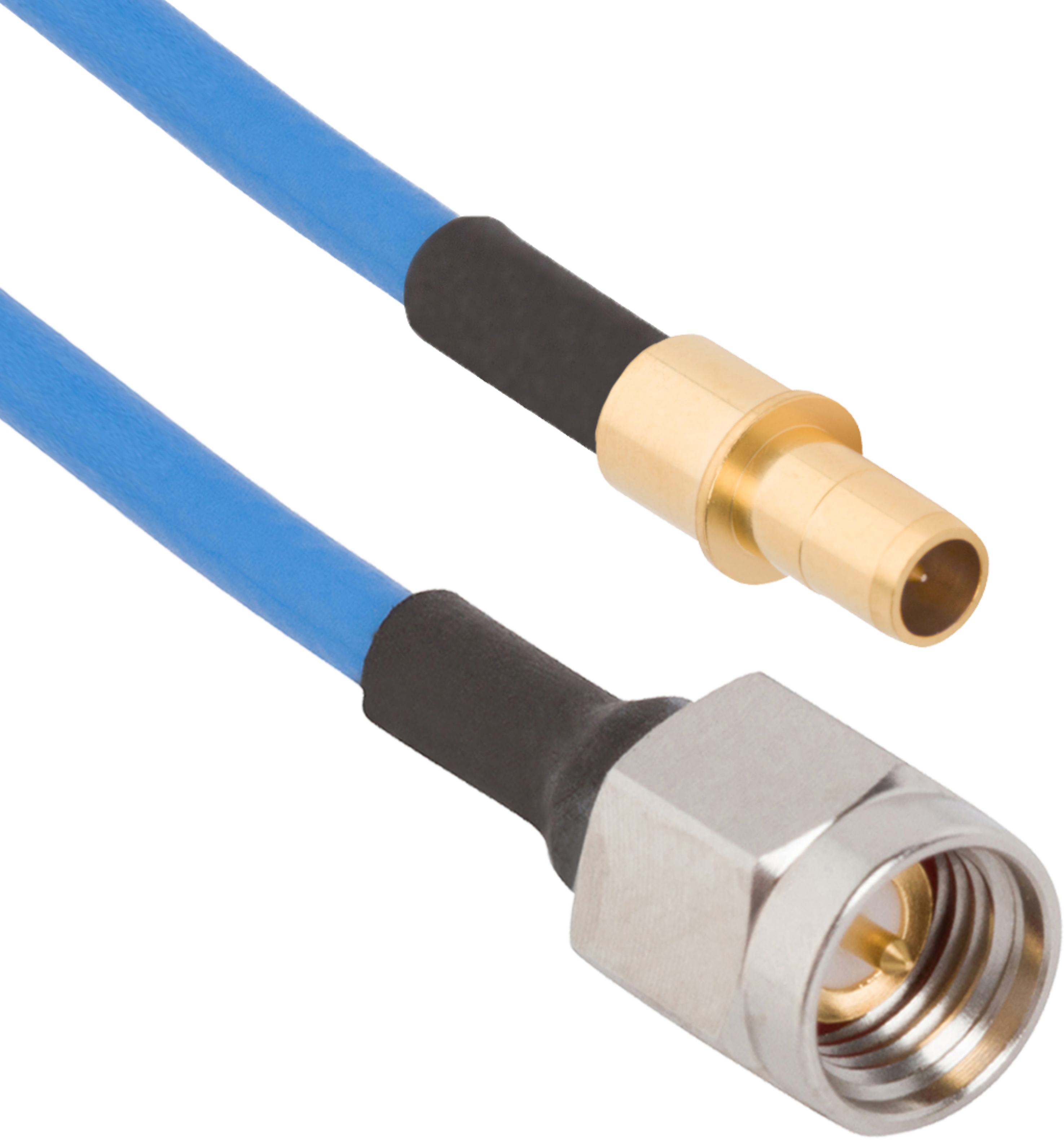

BMA (Size 8) D38999 Socket Contact to SMA Male 12" Cable Assembly for .141 Cable
P/N: 7093-0182

Loading...
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Socket
Coupling Push-on
Orientation (Body) Straight
Mounting Type D38999 Series I, III and IV
Style Size 8
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.140 Flexible Coax
Number of Ports Single
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Mating Cycles 5000
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
