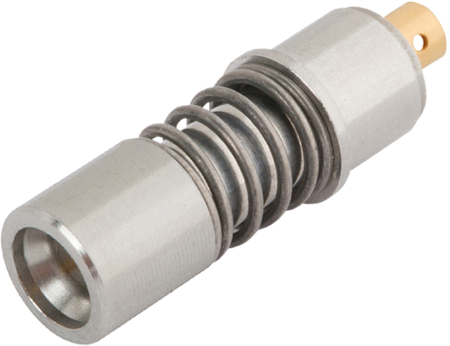

| Attribute name | Attribute value |
|---|---|
| Gender | Socket |
| Cable Type | 0.087-LL Flexible Coax |
| Mounting Type | D38999 Series I, III and IV |
| Style | Size 8 |
| Family | SOSA Aligned |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series | BMB |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 22 GHz |
| Shielding Effectiveness | -100dB to 22GHz |
| Dielectric withstanding Voltage | 1500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.0 lbs |
| Withdrawal Force | 6 oz |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold
These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
| CE / UKCA | Not Yet Reviewed
Please contact our compliance team for more information. |
|
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:21:24 AM
|
|
