P/N: 1440-6001

BMMA Female Snap-In Float Mount Connector for .085 Cable

In stock at Qty Order
Mouser Electronics 50
Products specifications
Attribute name Attribute value
RF Series BMMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Frequency 26.5 GHz
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 28 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Frequency 26.5 GHz
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 28 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 675 VRMS
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1444-6001

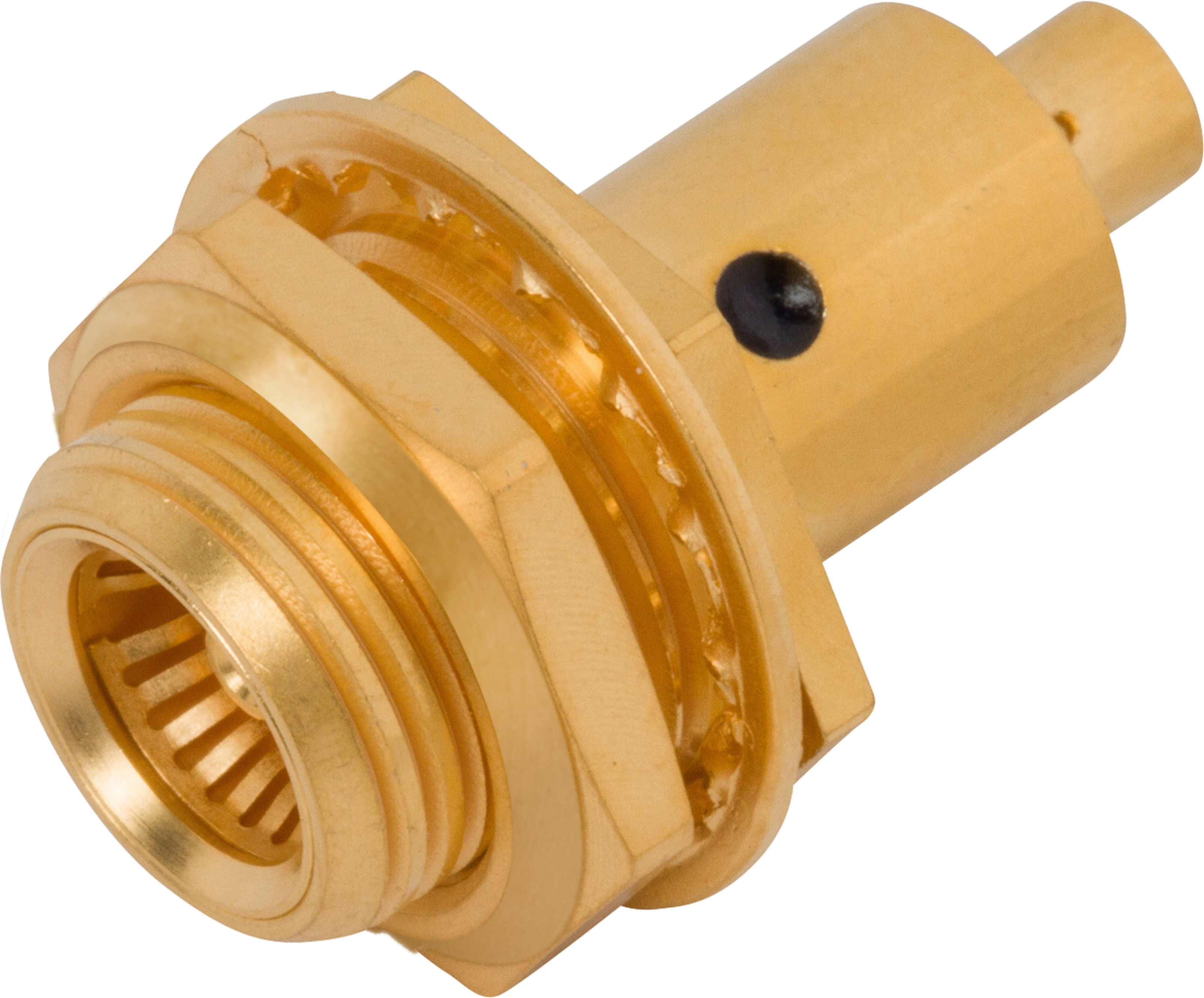

BMMA Female Bulkhead Connector for .085 Cable

Available Inventory: 0
1444-6001
BMMA Connectors 1444-6001
Datasheet
Part #   1408-6002

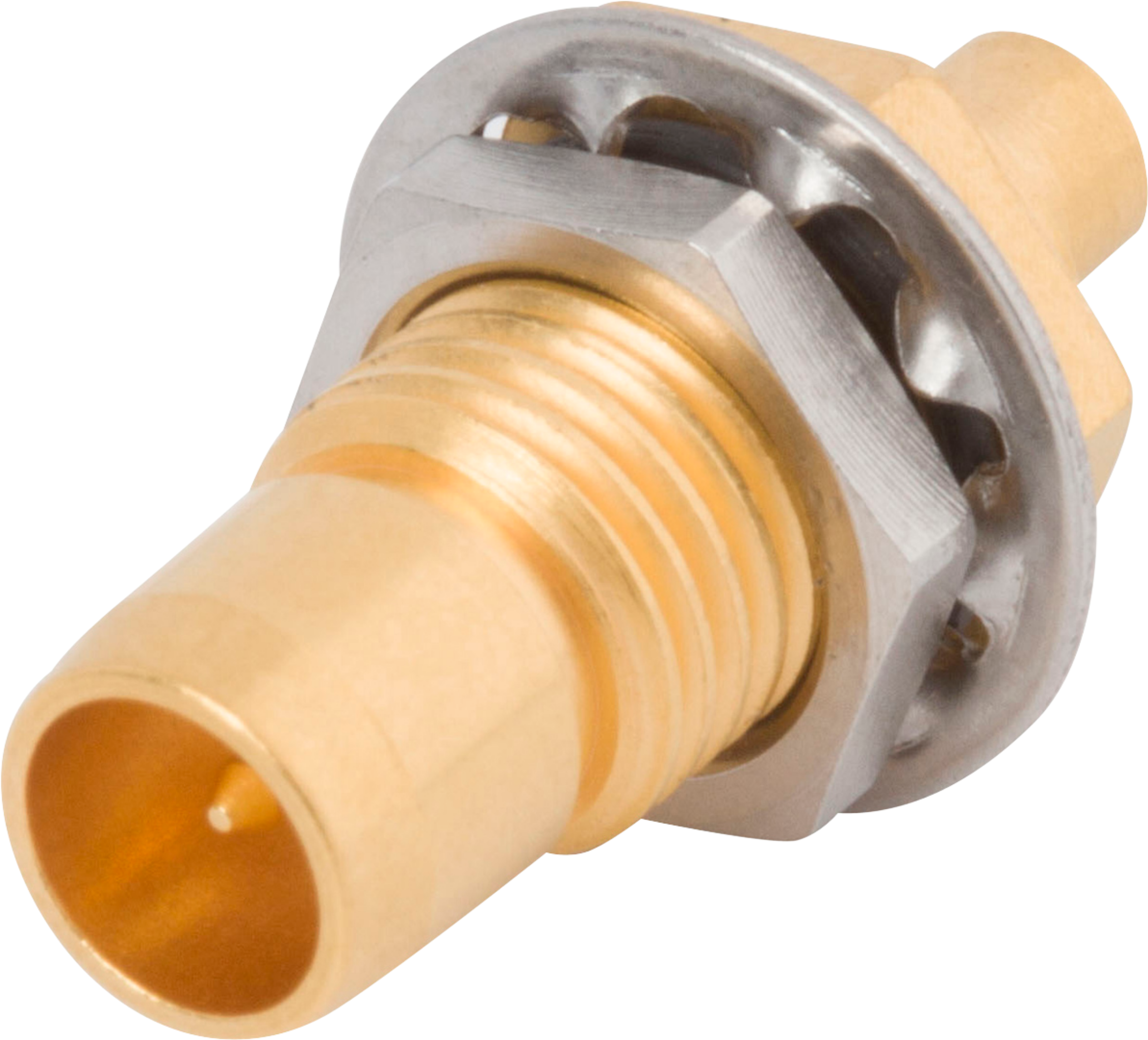

BMMA Male Connector for .085 Cable

Available Inventory: 25
1408-6002
BMMA Connectors 1408-6002
Datasheet
Part #   1421-60014

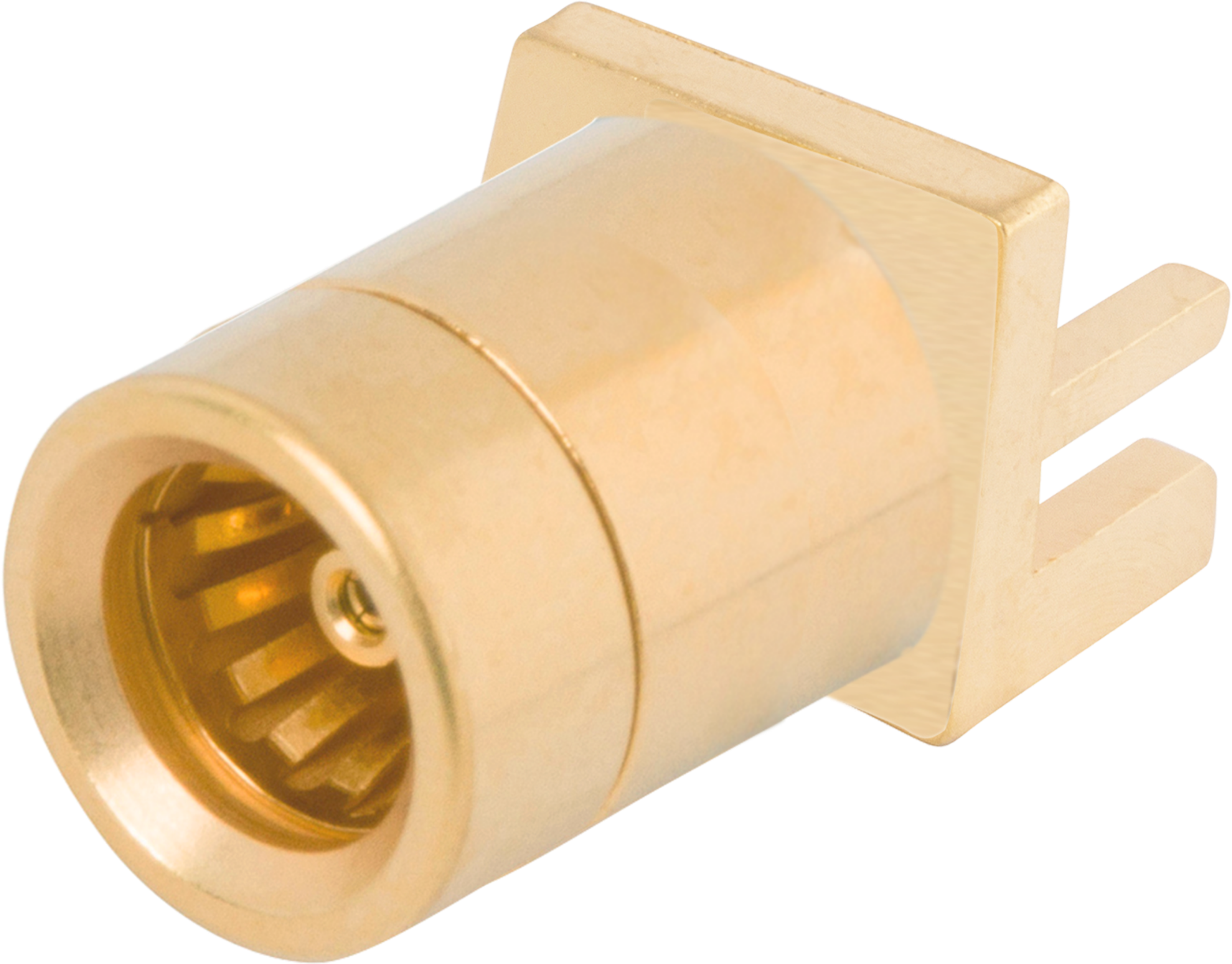

BMMA Female PCB Edge Launch Connector, .068" PCB Thickness"
