P/N: SF9821-6001

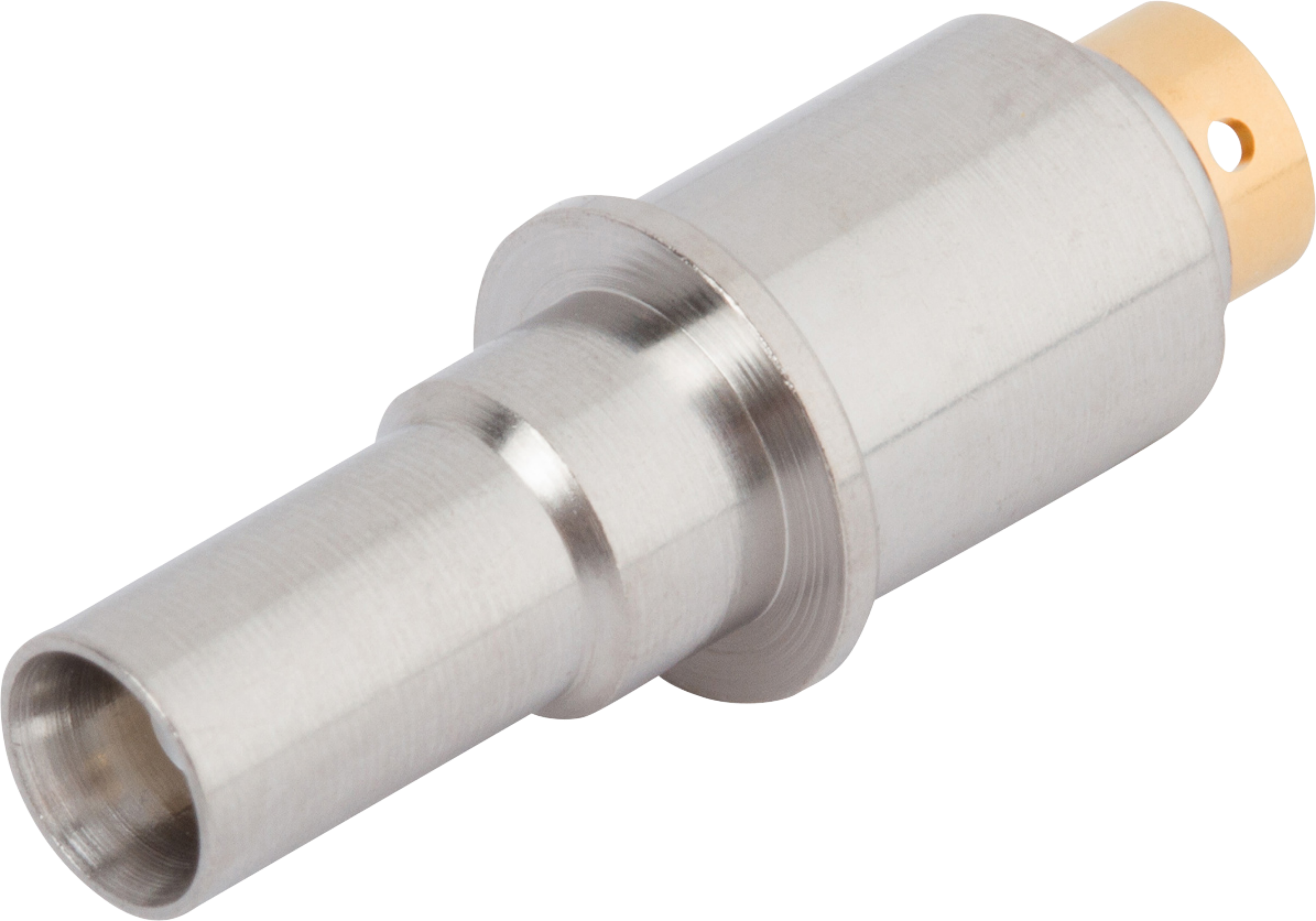

BMZ Pin D38999 Contact (Size 8) for .140 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMZ
Orientation (Body) Straight
Gender Pin
Mounting Type D38999
Coupling Push-on
Style Size 8
Frequency 18 GHz
Impedance 50 ohms
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -80 dB
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
