P/N: SF9821-60003

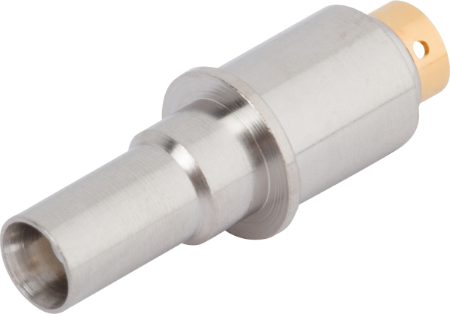

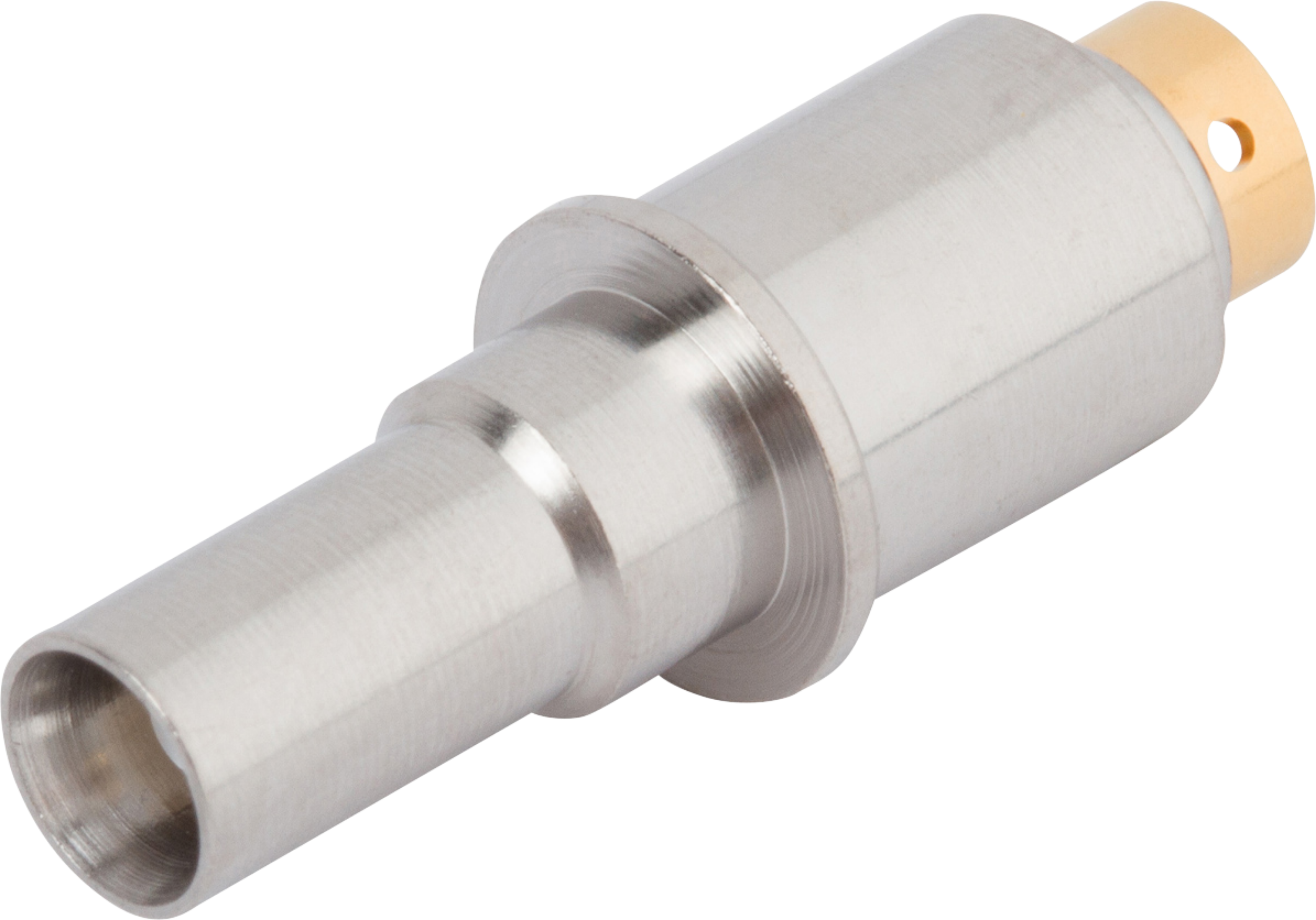

BMZ Pin D38999 Contact (Size 8) for LMR-240-75 Cable

In stock at Qty Order
Mouser Electronics 18
Products specifications
Attribute name Attribute value
Gender Pin
RF Series BMZ
Mounting Type D38999
Orientation (Body) Straight
Coupling Push-on
Style Size 8
Frequency 3 GHz
Impedance 50 ohms
Cable Type LMR-240-75
Finish Passivated
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Impedance (Ω) 50
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
