P/N: SF9821-6002

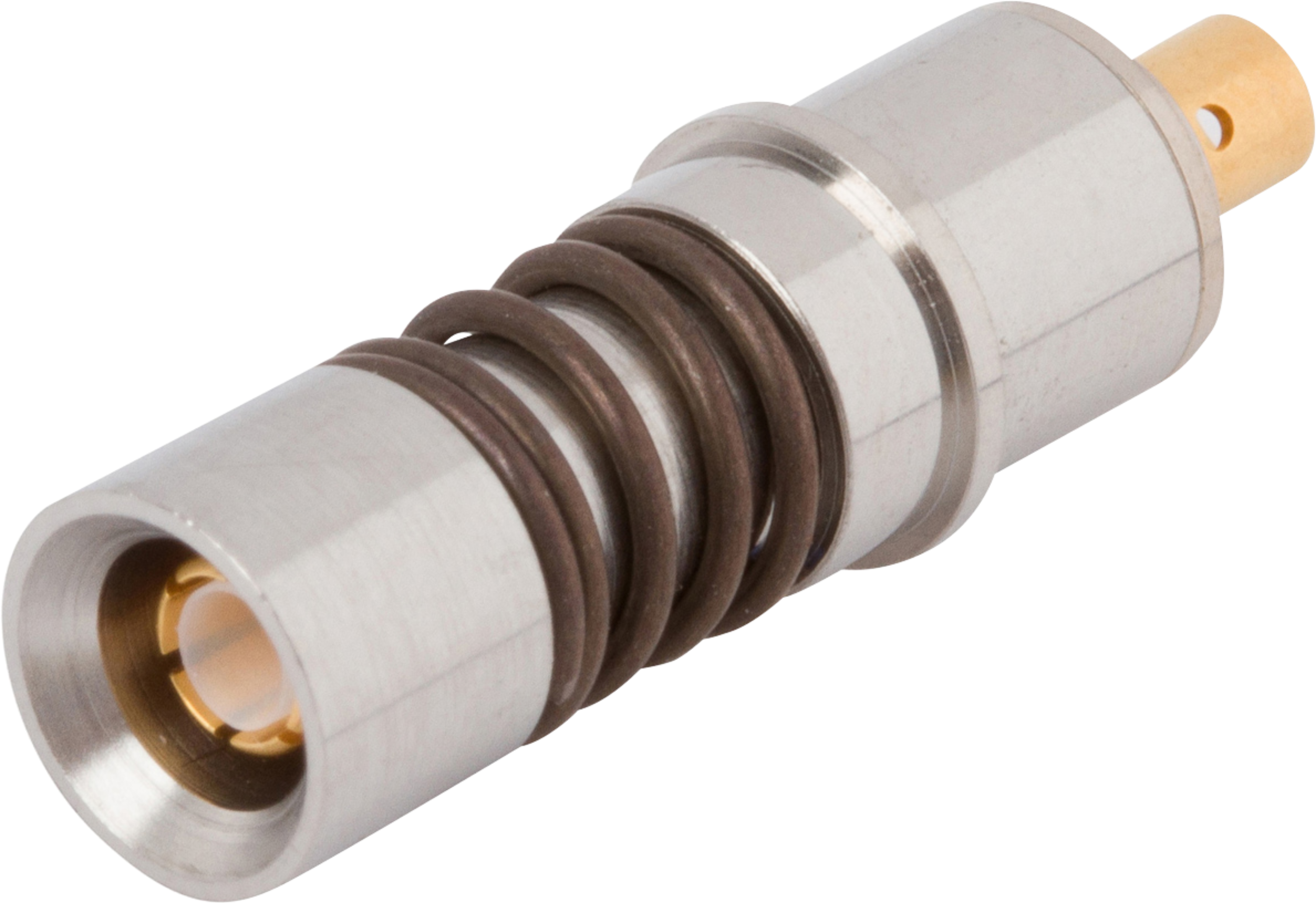

BMZ Pin D38999 Contact (Size 8) for RG-58 Cable

In stock at Qty Order
Mouser Electronics 24
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Pin
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Impedance 50 ohms
Frequency 11 GHz
Finish Passivated
Cable Type RG-58
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -80 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Pin
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Impedance 50 ohms
Frequency 11 GHz
Finish Passivated
Cable Type RG-58
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -80 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF9811-6002

BMZ Socket D38999 Contact (Size 8) for RG-58 Cable

Available Inventory: 0
SF9811-6002
BMZ Connectors SF9811-6002
Datasheet
Part #   SF9821-60003

BMZ Pin D38999 Contact (Size 8) for LMR-240-75 Cable

Available Inventory: 68
SF9821-60003
BMZ Connectors SF9821-60003
Datasheet
Part #   SF9821-6001

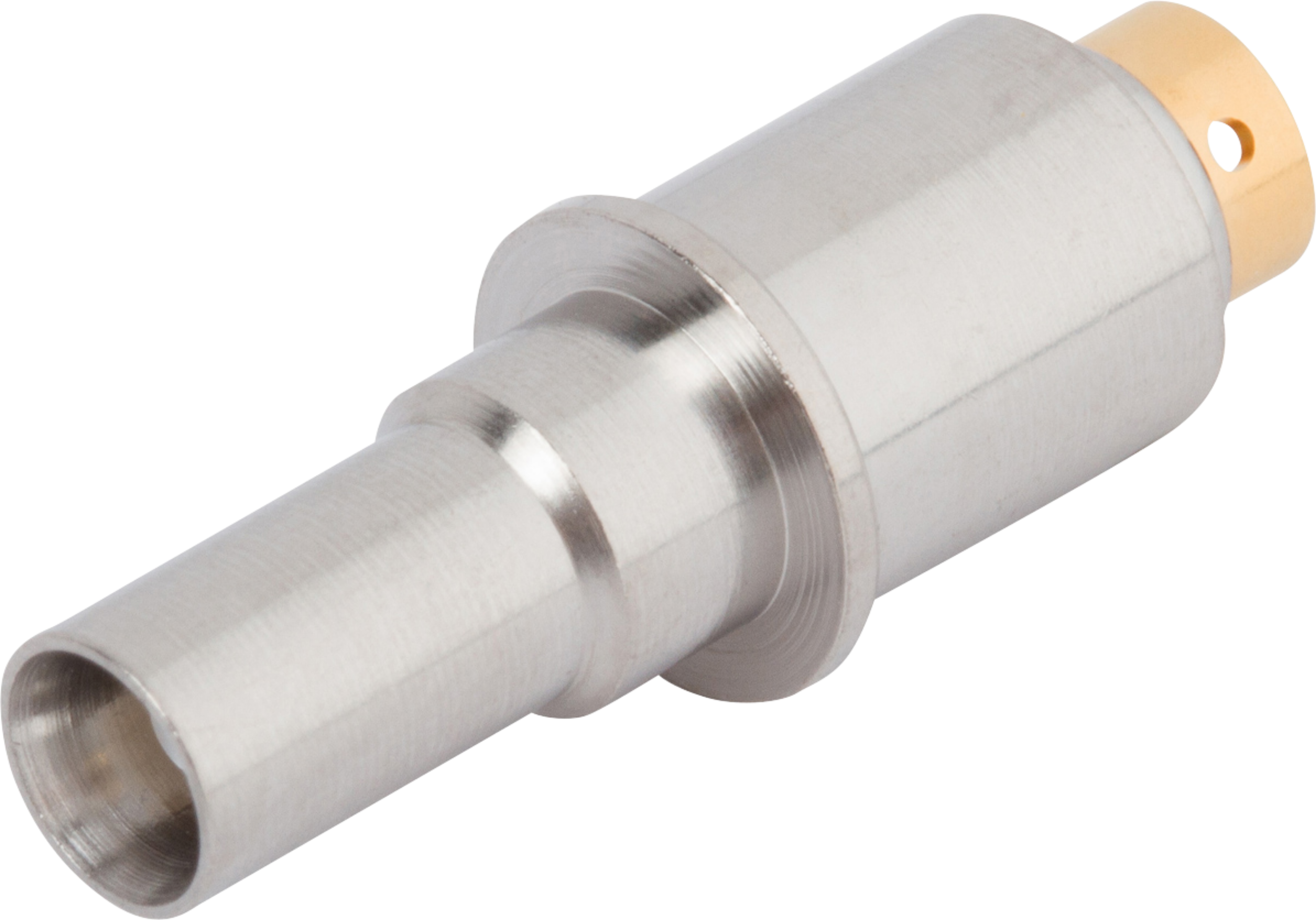

BMZ Pin D38999 Contact (Size 8) for .140 Cable
