P/N: SF9321-60007

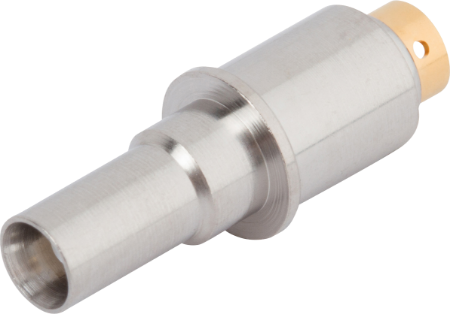

BMZ Pin D38999 Contact (Size 8) for RG-174 Cable

In stock at Qty Order
Digi-Key Electronics 50
Products specifications
Attribute name Attribute value
RF Series BMZ
Orientation (Body) Straight
Coupling Push-on
Style Size 8
Mounting Type D38999
Frequency 3 GHz
Impedance 50 ohms
Cable Type RG-174
Finish Passivated
Gender Pin
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Orientation (Body) Straight
Coupling Push-on
Style Size 8
Mounting Type D38999
Frequency 3 GHz
Impedance 50 ohms
Cable Type RG-174
Finish Passivated
Gender Pin
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF9811-60003

BMZ Socket D38999 Contact (Size 8) for LMR-240-75 Cable

Available Inventory: 38
SF9811-60003
BMZ Connectors SF9811-60003
Datasheet
Part #   SF9811-60005

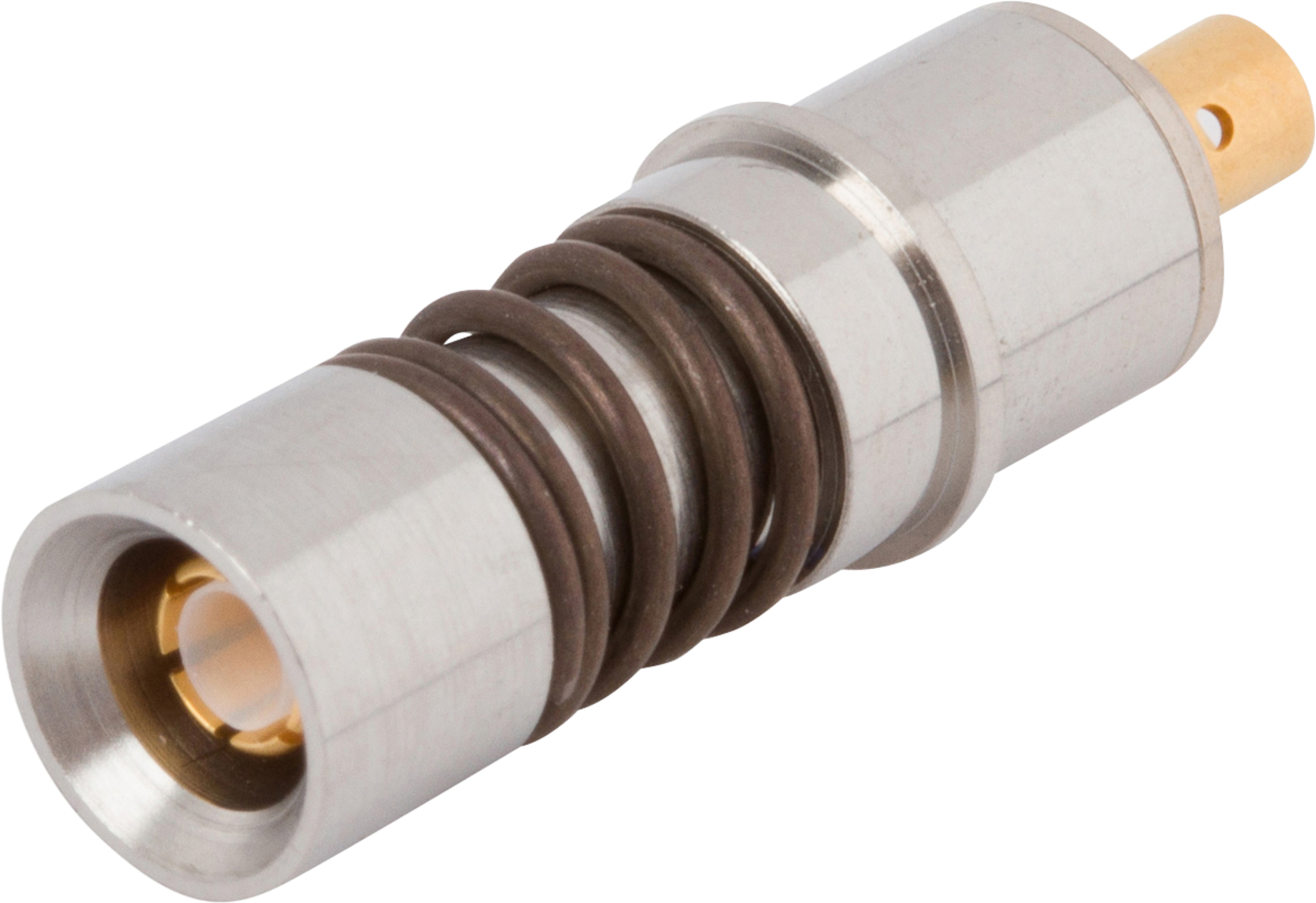

BMZ Socket D38999 Contact (Size 8) for RG-174 Cable

Available Inventory: 50
SF9811-60005
BMZ Connectors SF9811-60005
Datasheet
Part #   SF9821-60003

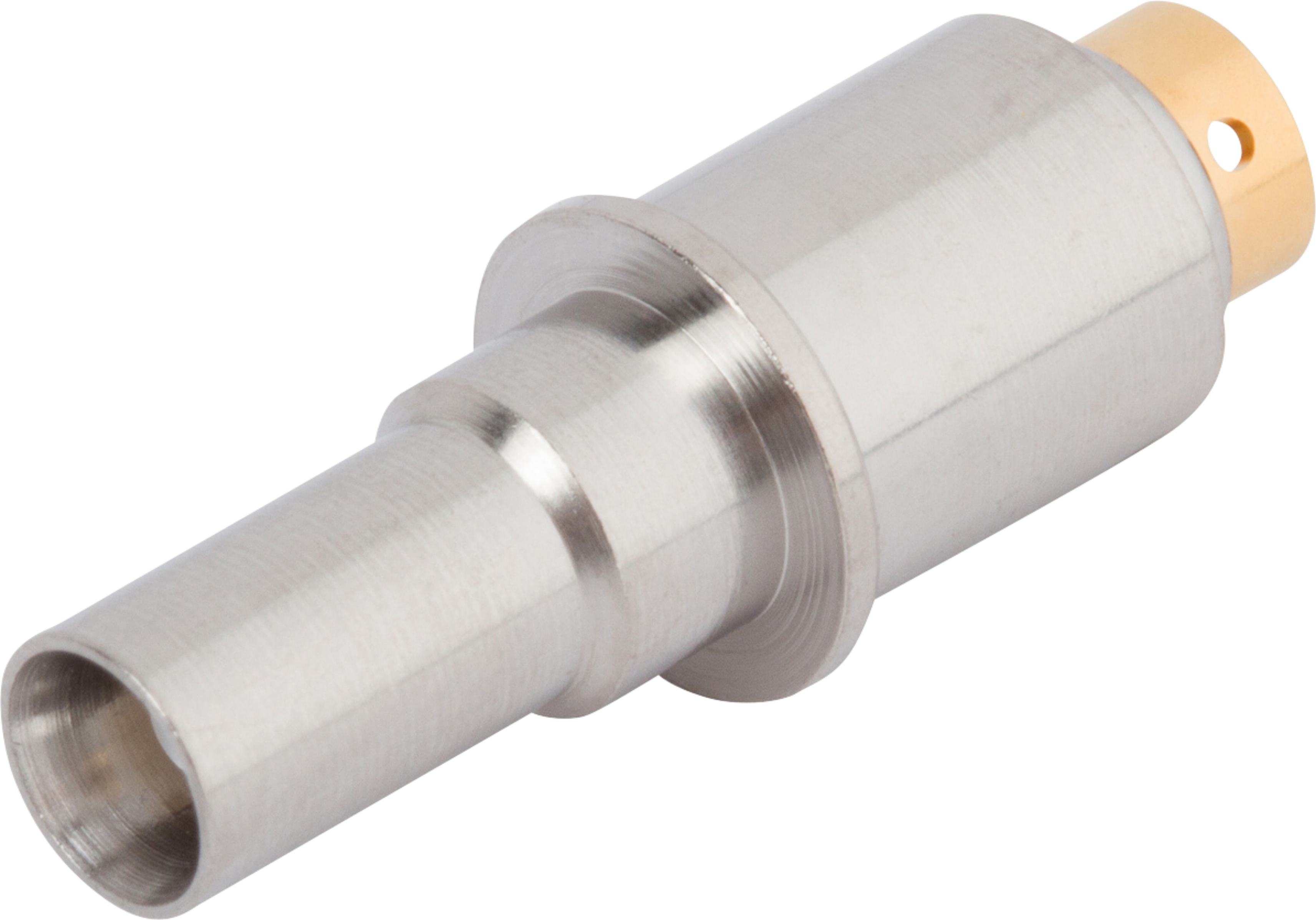

BMZ Pin D38999 Contact (Size 8) for LMR-240-75 Cable
