P/N: SF9911-6000

BMZ Socket D38999 Contact (Size 8) for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Gender Socket
RF Series BMZ
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Socket
RF Series BMZ
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF9811-60003

BMZ Socket D38999 Contact (Size 8) for LMR-240-75 Cable

Available Inventory: 28
SF9811-60003
BMZ Connectors SF9811-60003
Datasheet
Part #   SF9811-60005

BMZ Socket D38999 Contact (Size 8) for RG-174 Cable

Available Inventory: 25
SF9811-60005
BMZ Connectors SF9811-60005
Datasheet
Part #   SF9911-60001

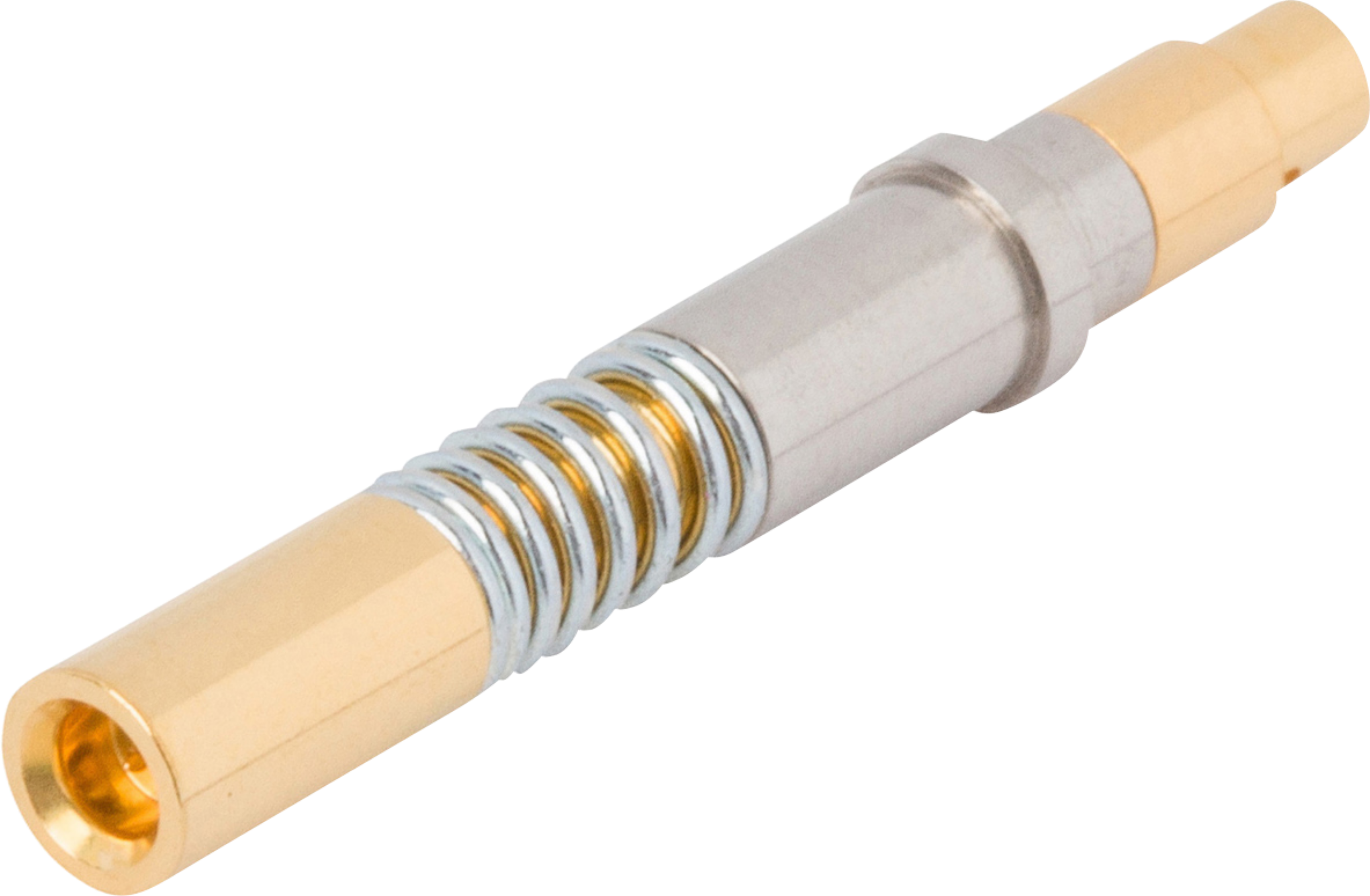

SMPS Socket D38999 Contact (Size 16) for .047 Cable
