Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | NanoRF |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Finish | Gold |
| Cable Type | 0.047 Flexible Coax |
| Family | SOSA Aligned, VITA 67 |
| Cable Builder Attributes | |
| Electrical | |
| Frequency | 70 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | NanoRF |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Finish | Gold |
| Cable Type | 0.047 Flexible Coax |
| Family | SOSA Aligned, VITA 67 |
| Cable Builder Attributes | |
| Electrical | |
| Frequency | 70 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
Part # 7083-0006

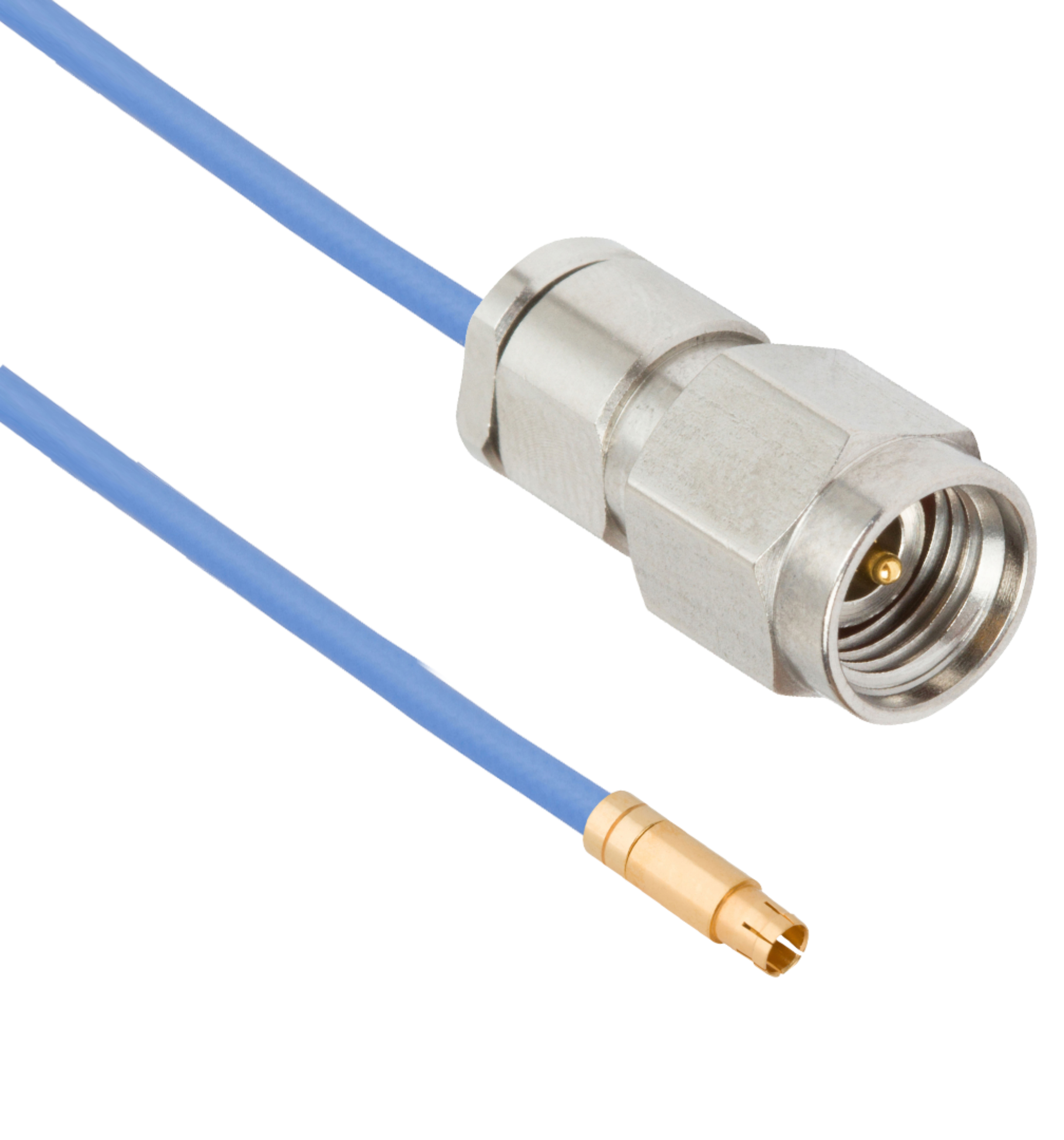

NanoRF Male VITA 67.3 Plug-In Contact to 2.92mm 12" Cable Assembly for .047 Cable
Available Inventory: 0
7083-0006
VITA Cable Assemblies
Part # 7083-0005
NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .086 Cable
Available Inventory: 0
7083-0005
VITA Cable Assemblies
Part # 9341-80005
NanoRF VITA 67.3 10 Port RF and 1 Port MT Fiber Backplane Hybrid Module
Available Inventory: 0
9341-80005
VITA Connectors 9341-80005
Customers Also Viewed
8351-40001
VITA Connectors 8351-40001
Part # 7083-0004

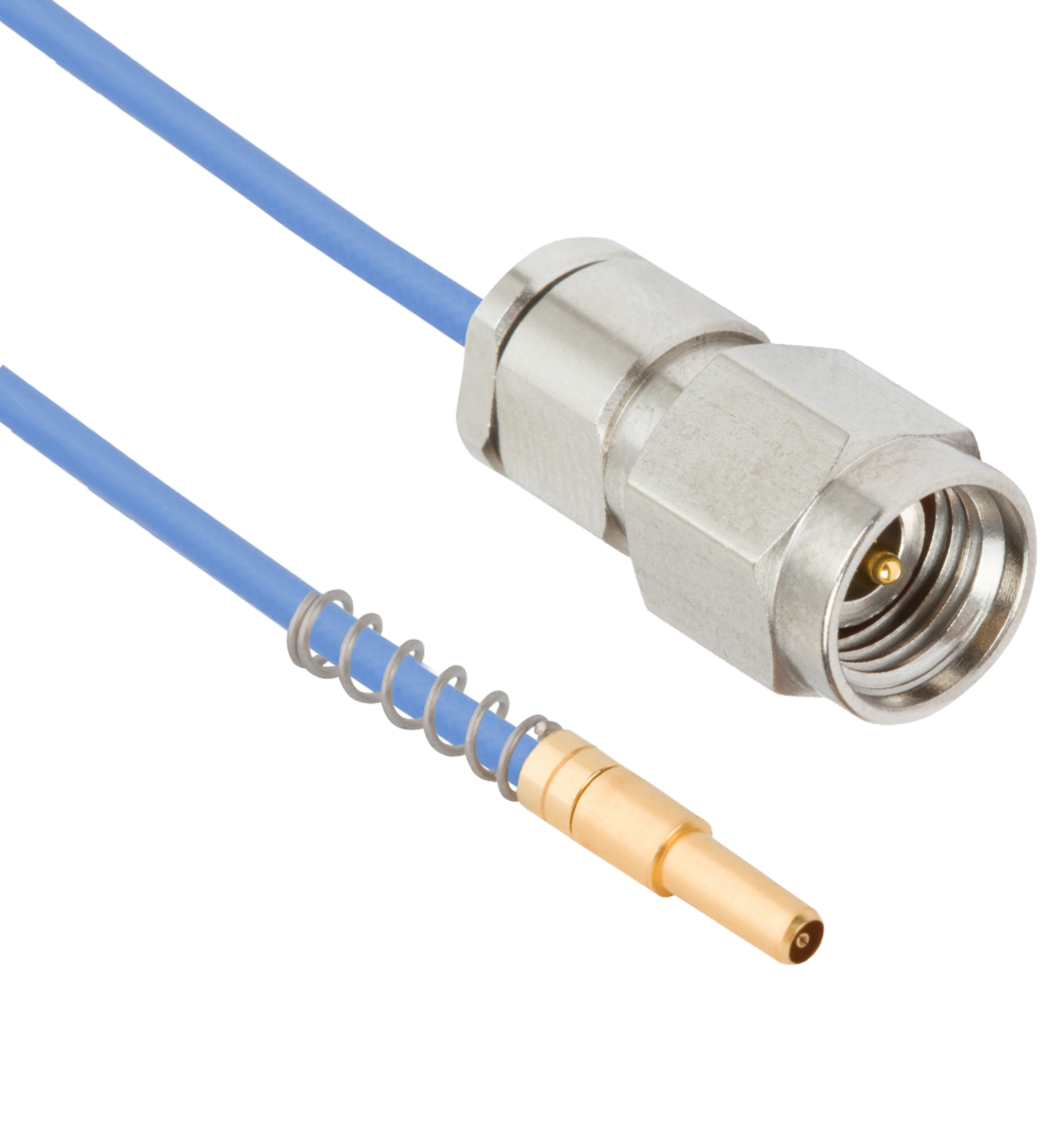

NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .047 Cable
