P/N: SF8802-6007

BZ Male Connector, Spring Loaded, for .141 Cable

In stock at Qty Order
Mouser Electronics 18
Microwave Components LLC 13
Digi-Key Electronics 1
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Impedance 50 ohms
Finish Passivated
Frequency 6 GHz
Cable Type 0.140 Flexible Coax
Electrical
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.25 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Impedance 50 ohms
Finish Passivated
Frequency 6 GHz
Cable Type 0.140 Flexible Coax
Electrical
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.25 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1122-6101

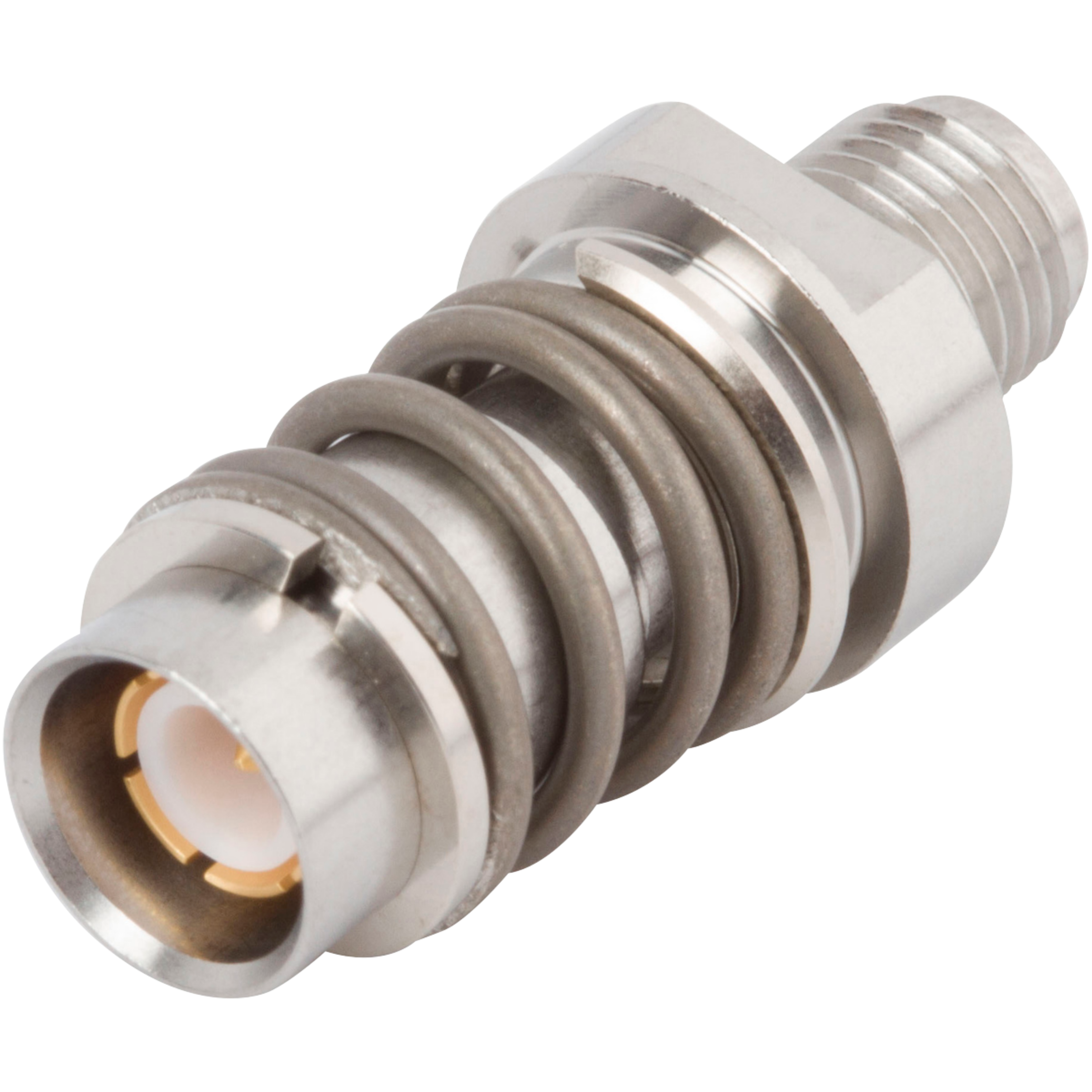

BZ Male to SMA Female Adapter, Spring Loaded

Available Inventory: 22
SF1122-6101
BZ Adapters SF1122-6101
Datasheet
Part #   SF1122-6102

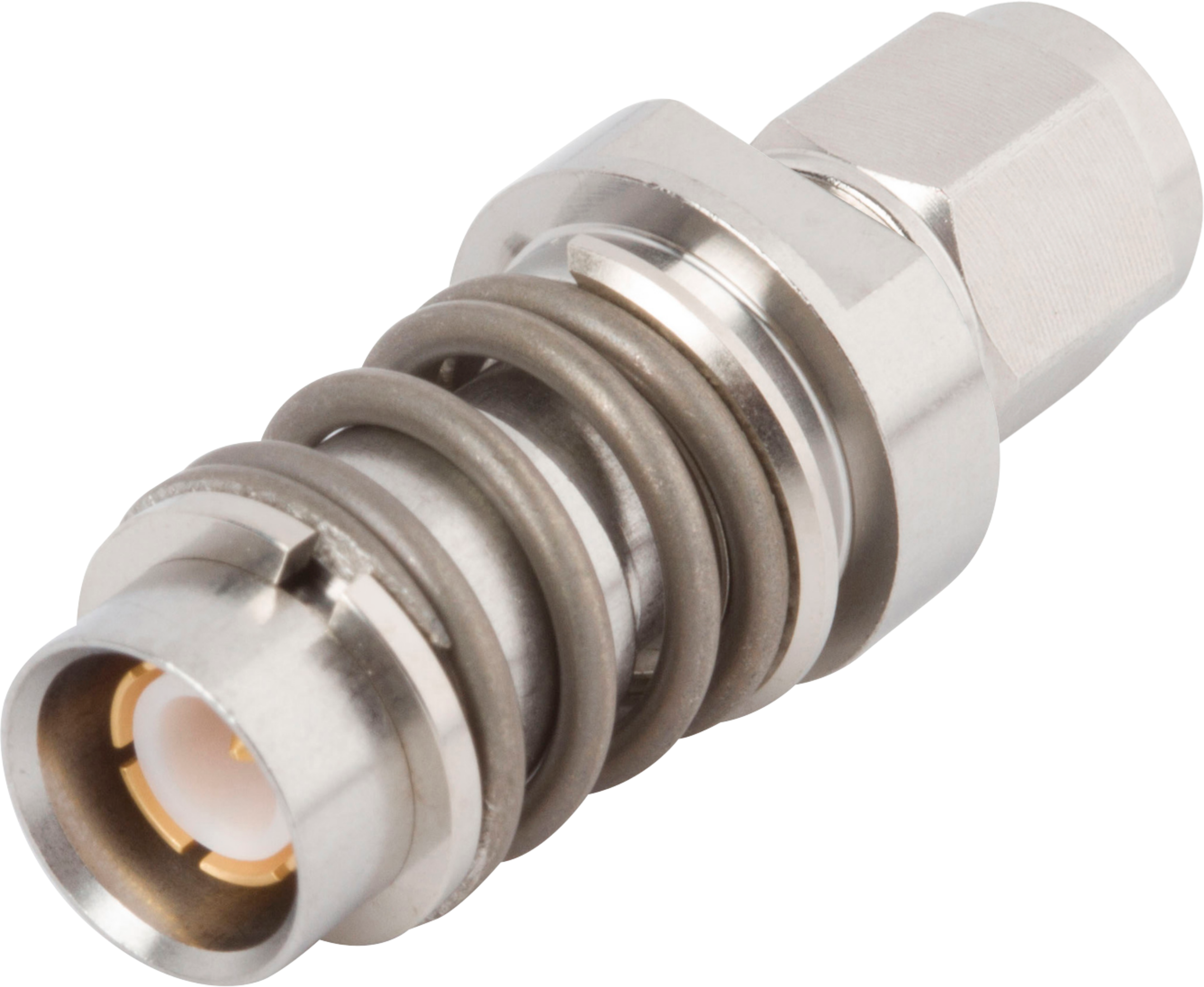

BZ Male to SMA Male Adapter, Spring Loaded

Available Inventory: 0
SF1122-6102
BZ Adapters SF1122-6102
Datasheet
Part #   SF8806-6006

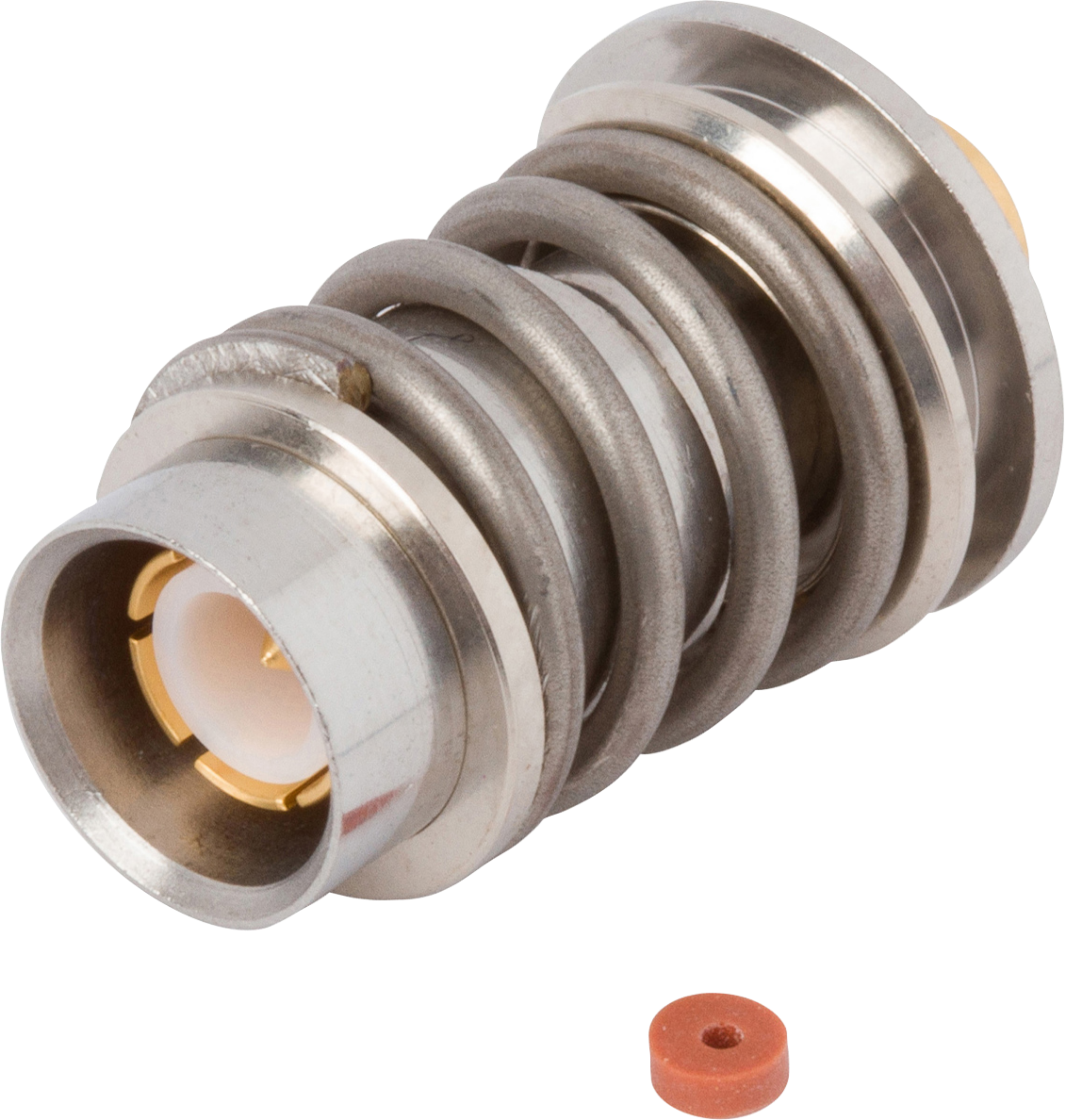

BZ Male Connector, Spring Loaded, for .085 Cable
