Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | NanoRF |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Finish | Gold |
| Cable Type | 0.047 Flexible Coax |
| Family | SOSA Aligned, VITA 67 |
| Cable Builder Attributes | |
| Electrical | |
| Frequency | 70 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | NanoRF |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Number of Ports | Single |
| Termination Style | Solder |
| Finish | Gold |
| Cable Type | 0.047 Flexible Coax |
| Family | SOSA Aligned, VITA 67 |
| Cable Builder Attributes | |
| Electrical | |
| Frequency | 70 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
SF1138-6020
VITA Adapters SF1138-6020
SF3811-60059
VITA Connectors SF3811-60059
SF9311-60166
VITA Connectors SF9311-60166
SF9321-60059
VITA Connectors SF9321-60059
SF9321-60084
VITA Connectors SF9321-60084
Customers Also Viewed
8341-40002
VITA Connectors 8341-40002
Part # 7083-0004

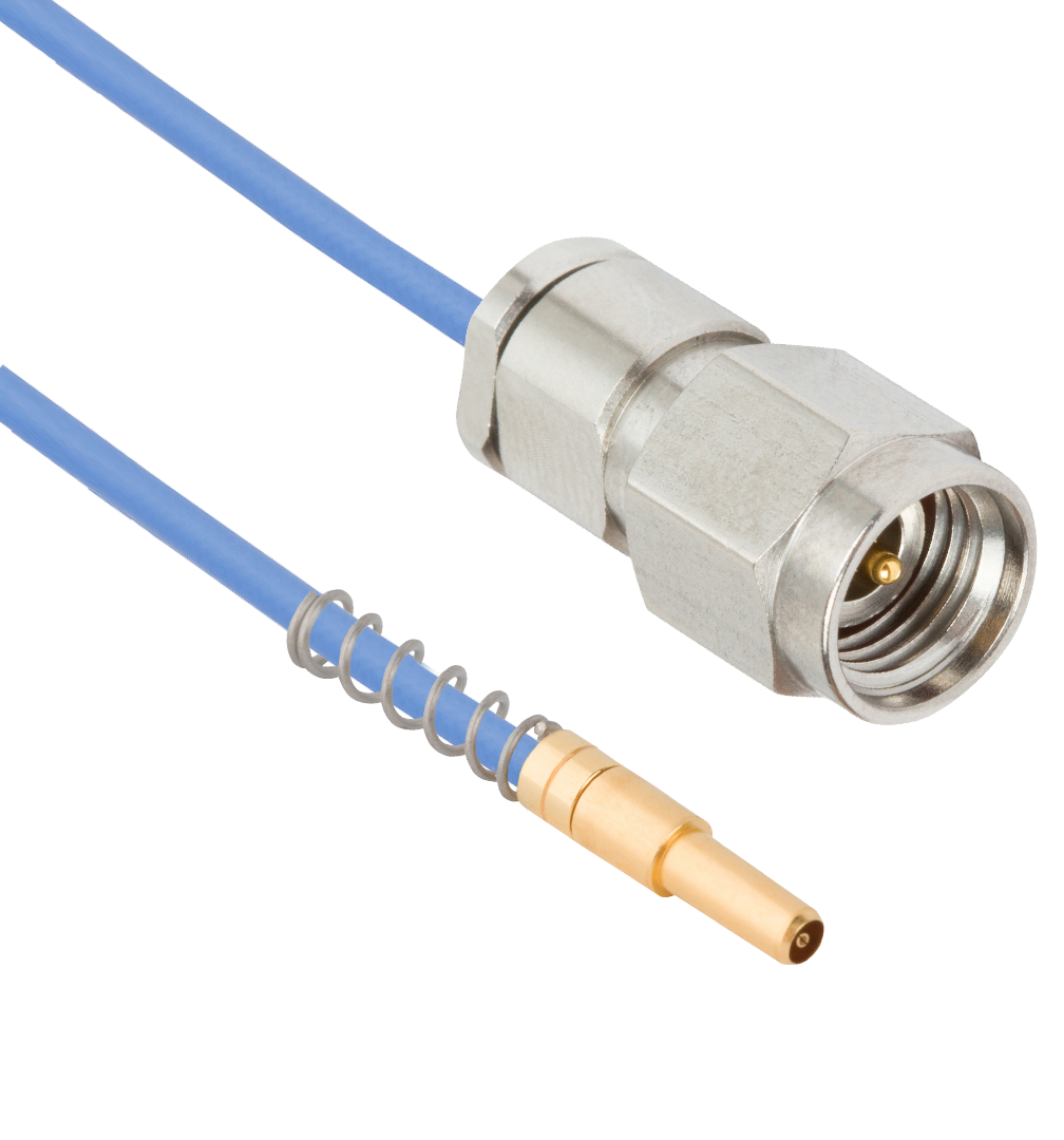

NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .047 Cable
