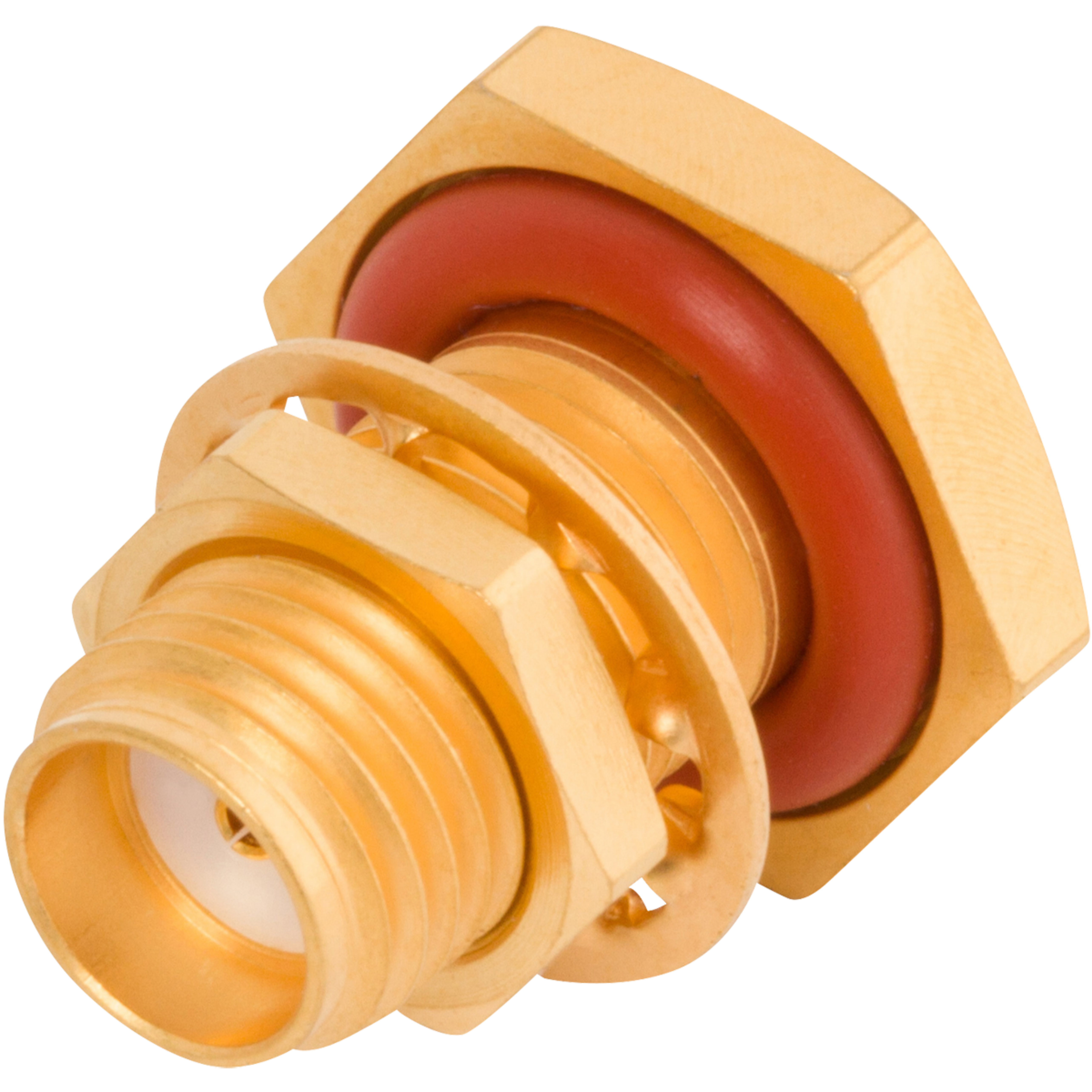

Attribute name | Attribute value |
---|---|
RF Series | SMA |
Gender | Jack (Female) |
Orientation (Body) | Straight |
Coupling | Threaded |
Mounting Type | Panel |
Body Style | Jamnut/Bulkhead |
Number of Ports | Single |
Termination Style | Solder |
Cable Type | 0.085 Flexible Coax |
Finish | Gold |
Family | Non-Magnetic |
Cable Builder Attributes | |
Mating Connector | 2906-6002, 2911-40023 |
Electrical | |
Impedance | 50 ohms |
Frequency | 18 GHz |
Dielectric withstanding Voltage | 1000 VRMS |
Shielding Effectiveness | ≥ -90 dB |
Mechanical | |
Mating Torque | 7 - 10 in - lbs |
Inter-mate ability | 2.92mm |
Mating Cycles | 500 |
Environmental | |
Temperature Rating | -65°C to +165°C |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Vibration | MIL-STD-202, Method 204, Condition D |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Shock | MIL-STD-202, Method 213, Condition I |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
