P/N: 2985-6036

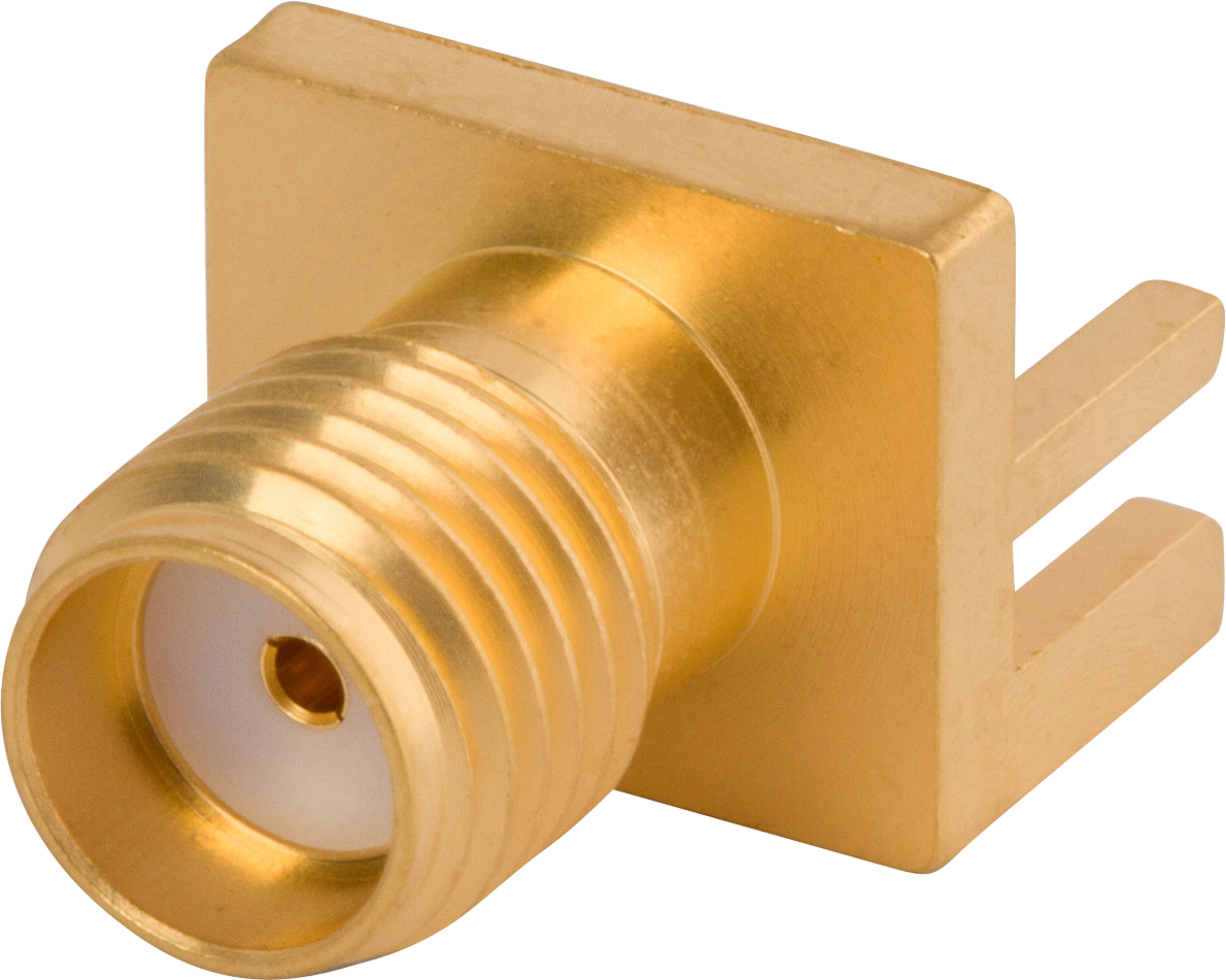

SMA Female PCB Edge Launch Connector, .042" PCB Thickness"

In stock at Qty Order
Digi-Key Electronics 92
Mouser Electronics 90
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Mounting Type PCB Edge Launch
Frequency 18 GHz
Impedance 50 ohms
Gender Jack (Female)
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.92mm
Environmental
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
