P/N: 2985-6037

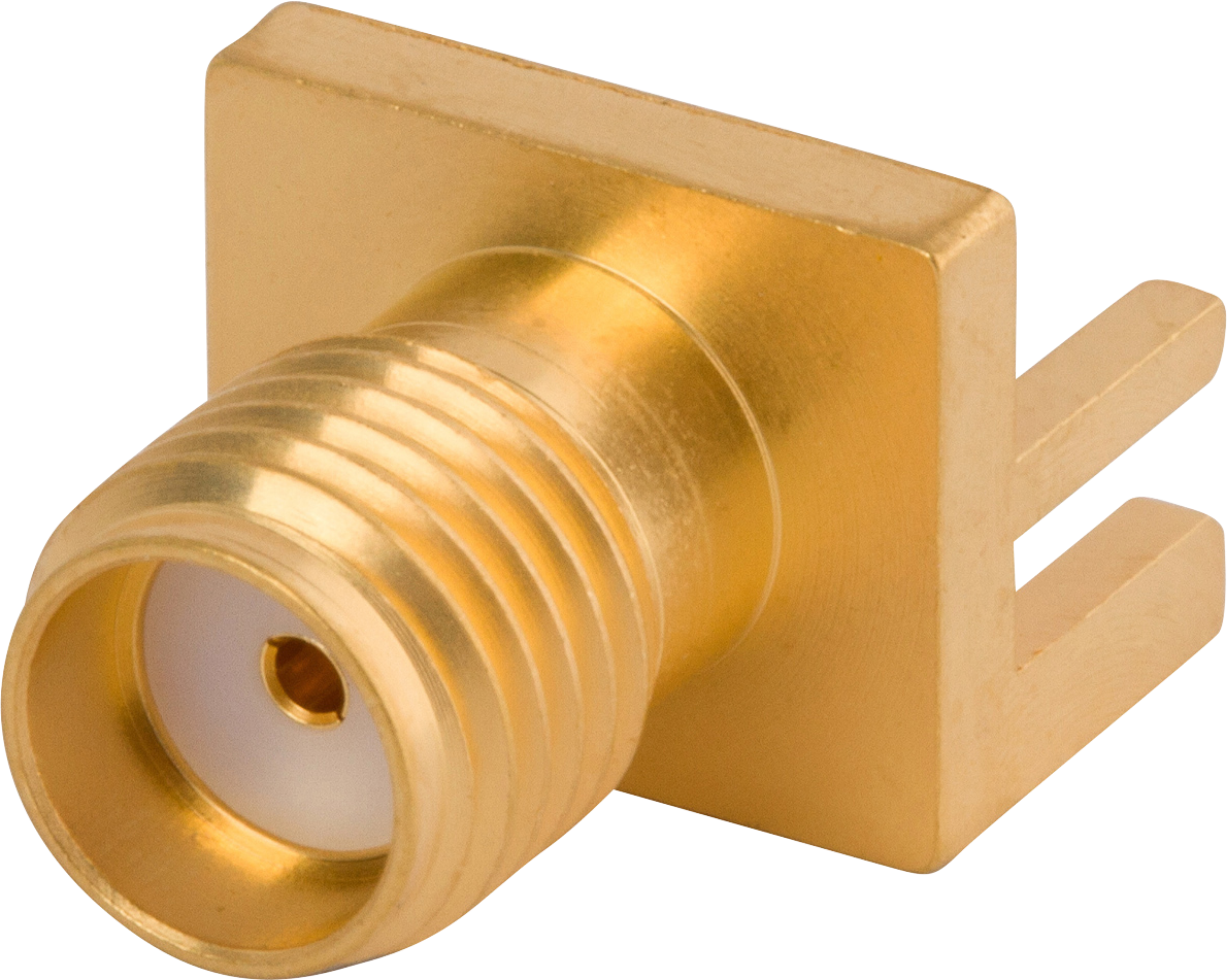

SMA Female PCB Edge Launch Connector, .031" PCB Thickness"

In stock at Qty Order
Digi-Key Electronics 275
Mouser Electronics 142
Master Electronics 75
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Termination Style Solder
Coupling Threaded
Frequency 18 GHz
Impedance 50 ohms
Gender Jack (Female)
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
