P/N: M3933/16-XXS

SMA Female to Male Attenuator, 18 GHz (Screened)

In stock at Qty Order
Mouser Electronics 25
Digi-Key Electronics 25
CW Swift & Associates 14
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Frequency 18 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Impedance (Ω) 50, 50, 50, 50, 50
Frequency GHz 18 GHz, 18 GHz, 18 GHz, 18 GHz, 18 GHz
Shielding Effectiveness ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS
Mating Cycles 500, 500, 500, 500, 500
Mechanical
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs
Inter-mate ability 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm
Temperature Rating -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Frequency 18 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Impedance (Ω) 50, 50, 50, 50, 50
Frequency GHz 18 GHz, 18 GHz, 18 GHz, 18 GHz, 18 GHz
Shielding Effectiveness ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB, ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS, 1000 VRMS
Mating Cycles 500, 500, 500, 500, 500
Mechanical
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs, 7 - 10 in - lbs
Inter-mate ability 2.92mm, 2.92mm, 2.92mm, 2.92mm, 2.92mm
Temperature Rating -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M3933/16-XXN

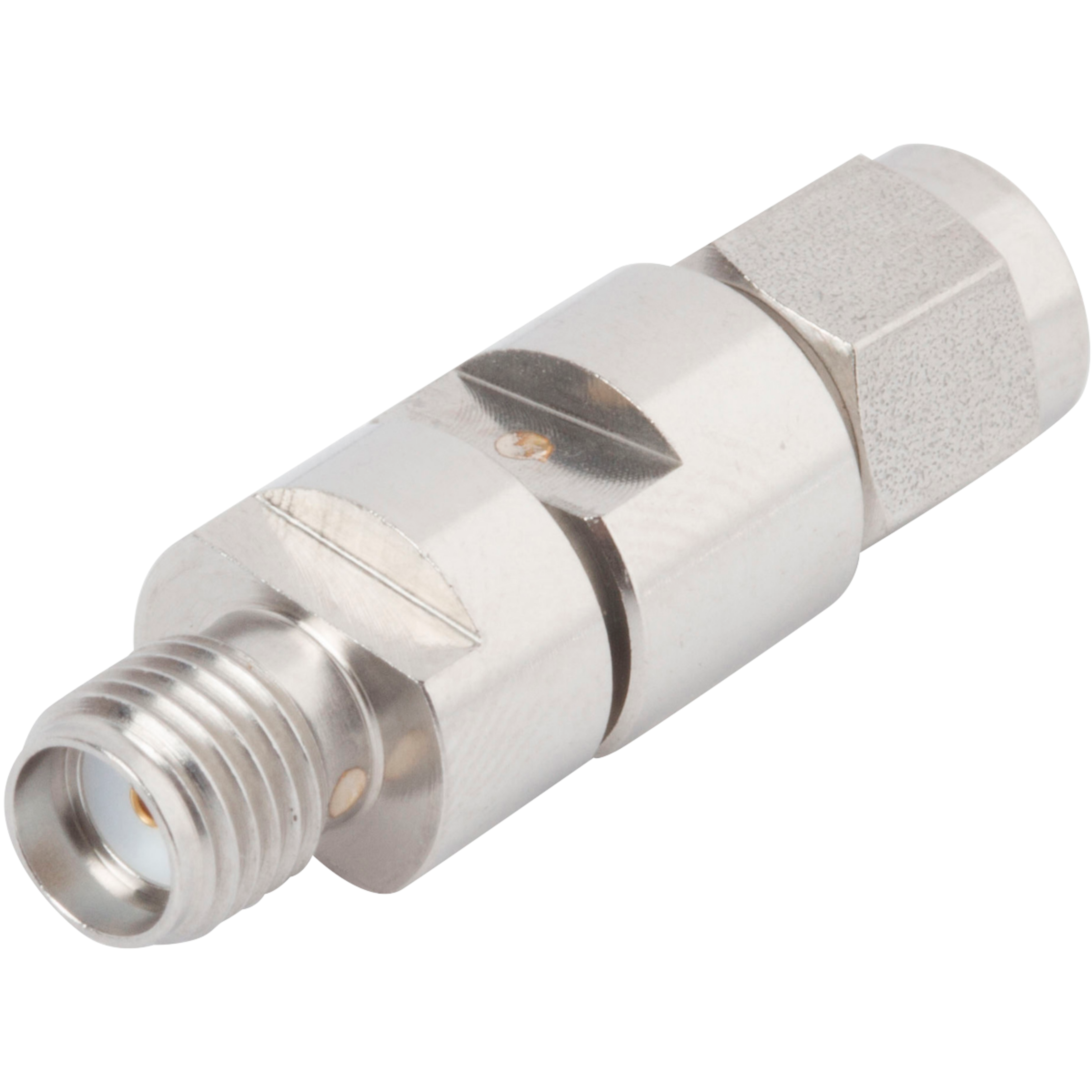

SMA Female to Male Attenuator, 18 GHz (Nonscreened)

Available Inventory: 0
M3933/16-XXN
SMA Attenuator M3933/16-01N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N
Datasheet
Part #   M3933/14-XXN

SMA Male to Female Attenuator, 12.4 GHz (Nonscreened)

Available Inventory: 0
M3933/14-XXN
SMA Attenuator M3933/14-01N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N
Datasheet
Part #   M3933/14-XXS

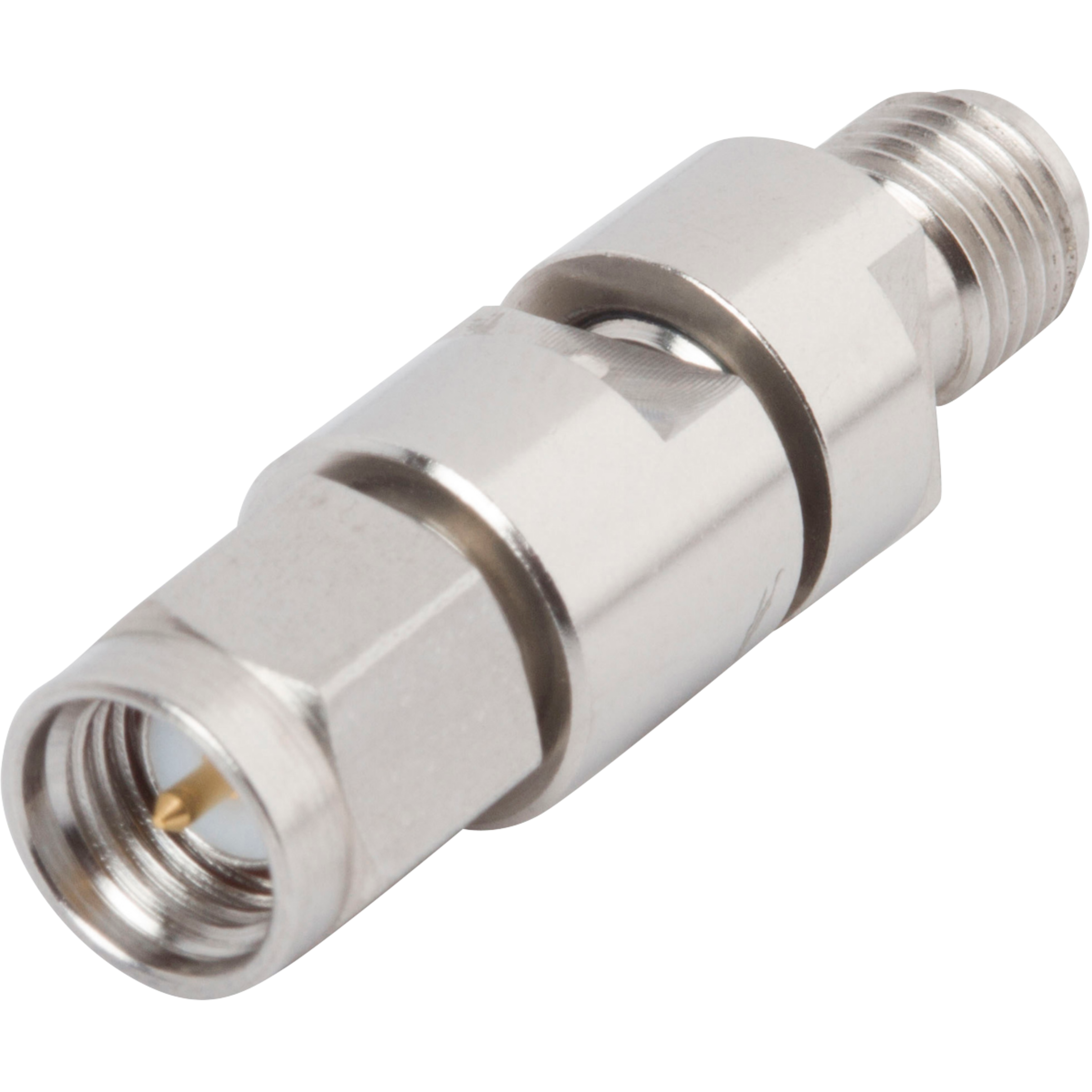

SMA Male to Female Attenuator, 12.4 GHz (Screened)
