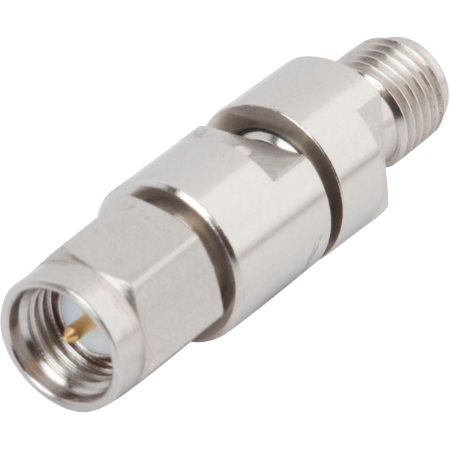

SMA Male to Female Attenuator, 12.4 GHz (Screened)
P/N: M3933/14-XXS

In stock at Qty Order
TTI Inc Global Headquarters 17
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Frequency 12.4 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:28:44 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Frequency 12.4 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   M3933/16-XXN

SMA Female to Male Attenuator, 18 GHz (Nonscreened)

Available Inventory: 0
M3933/16-XXN
SMA Attenuator M3933/16-01N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N
Datasheet
Part #   M3933/16-XXS

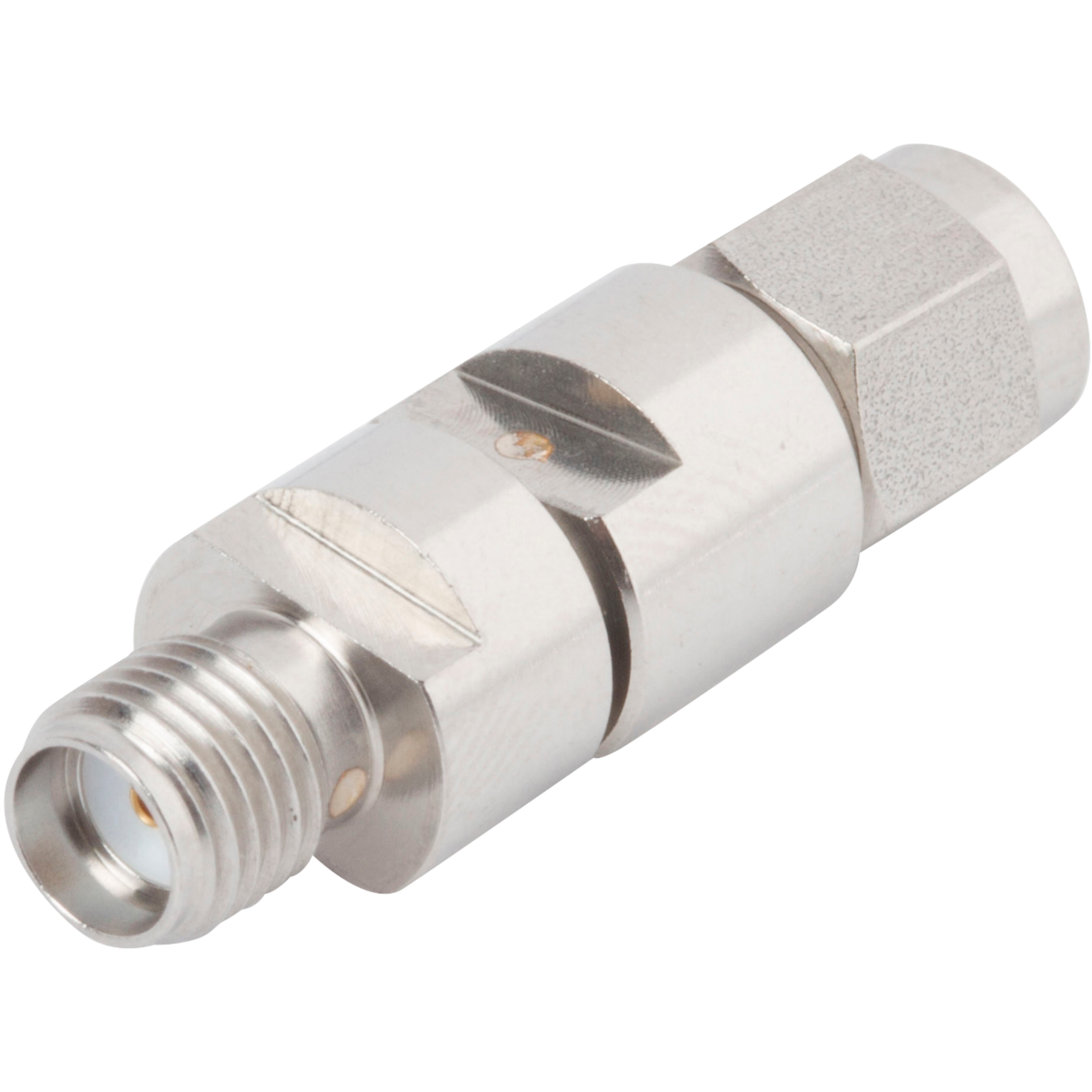

SMA Female to Male Attenuator, 18 GHz (Screened)

Available Inventory: 0
M3933/16-XXS
SMA Attenuator M3933/16-01S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S
Datasheet
Part #   M3933/14-XXN

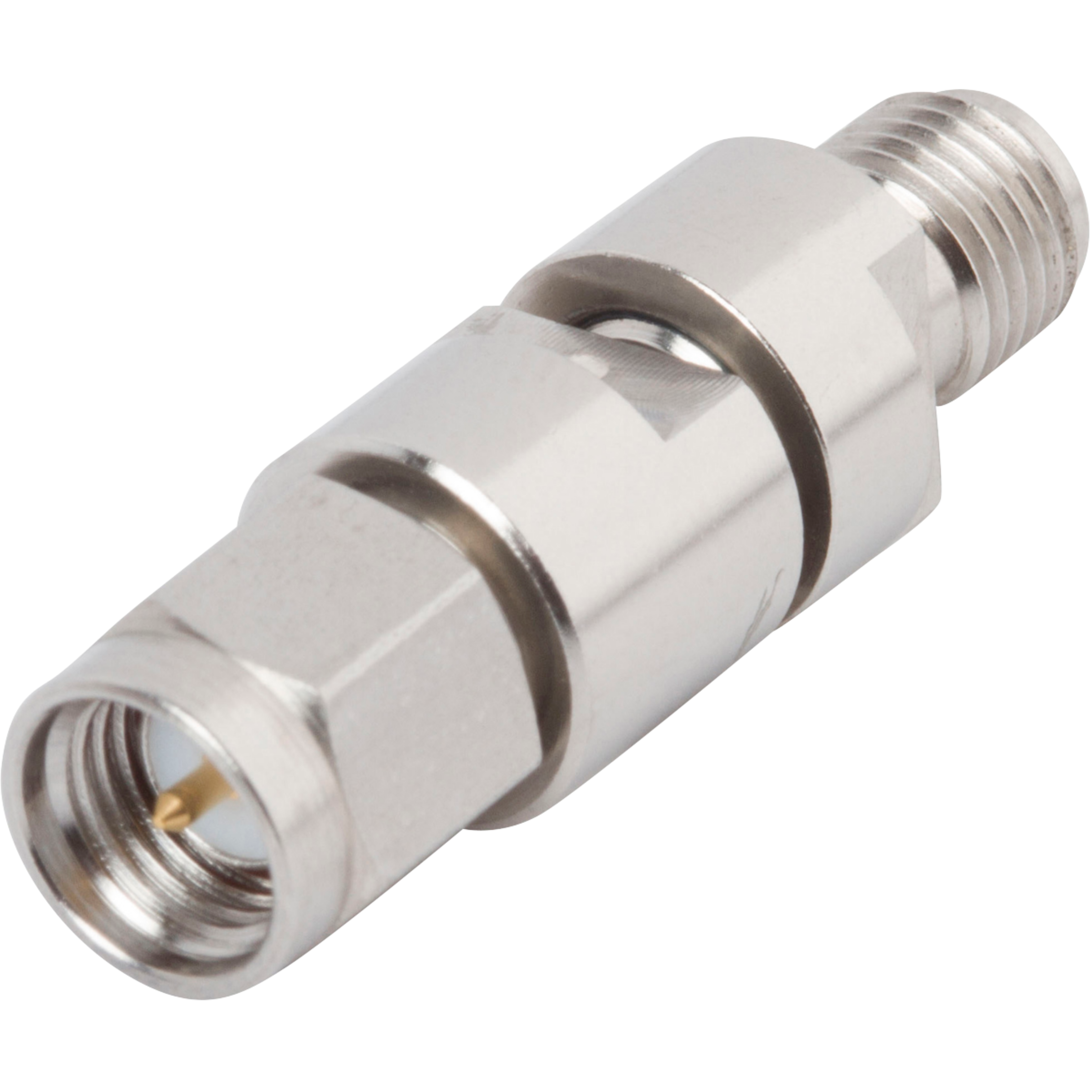

SMA Male to Female Attenuator, 12.4 GHz (Nonscreened)
