P/N: M3933/14-XXN

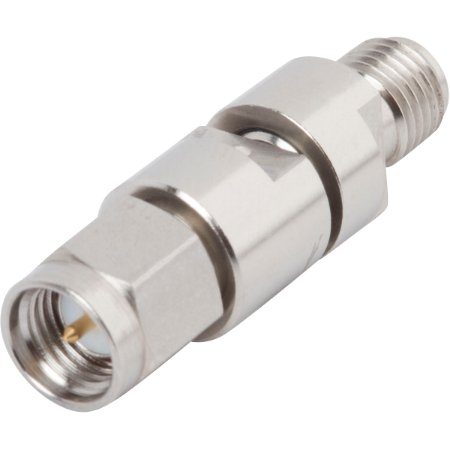

SMA Male to Female Attenuator, 12.4 GHz (Nonscreened)

In stock at Qty Order
Microwave Components LLC 64
Digi-Key Electronics 48
Mouser Electronics 21
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Frequency 12.4 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Frequency 12.4 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Jack (Female)
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M3933/14-XXS

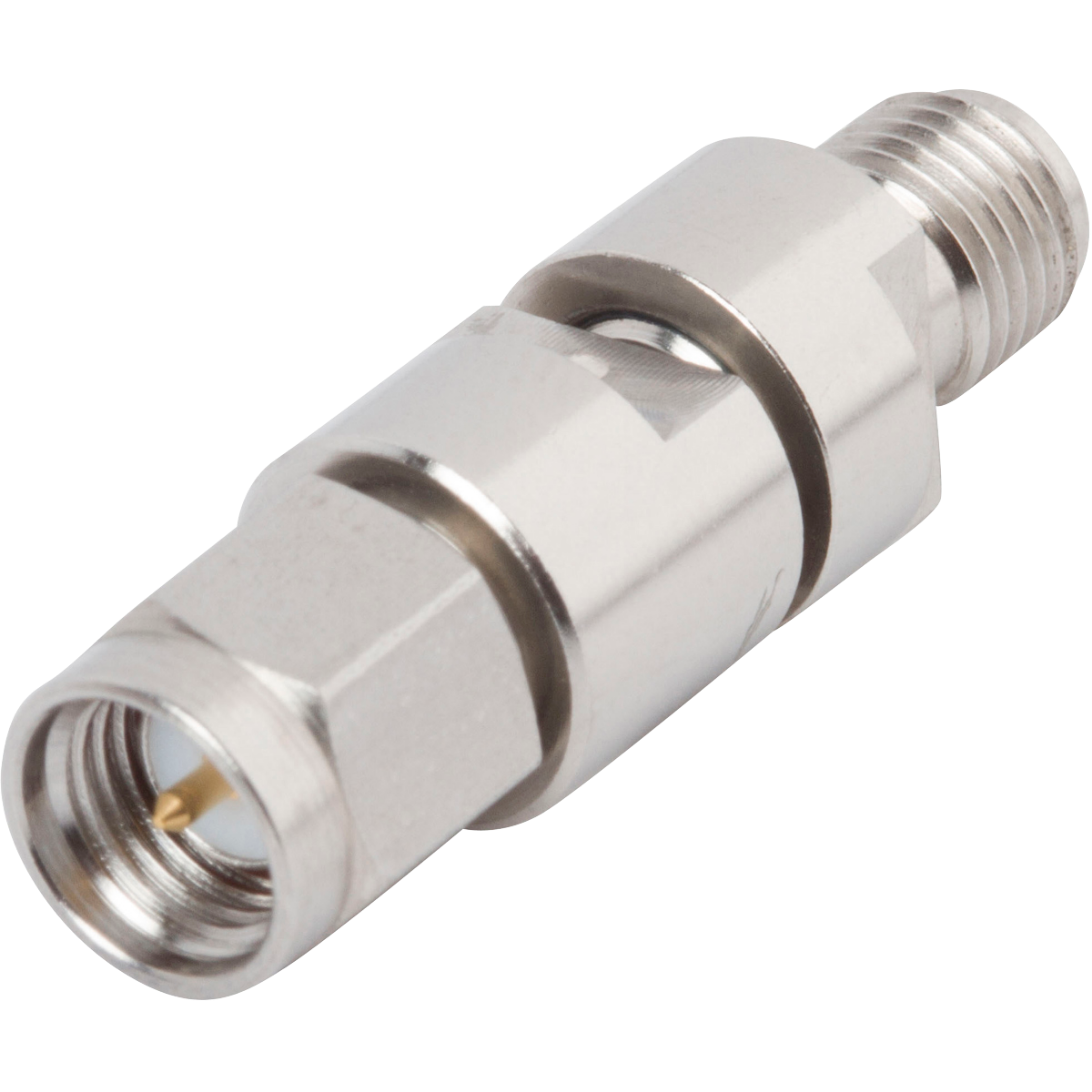

SMA Male to Female Attenuator, 12.4 GHz (Screened)

Available Inventory: 0
M3933/14-XXS
SMA Attenuator M3933/14-01S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S
Datasheet
Part #   M3933/16-XXN

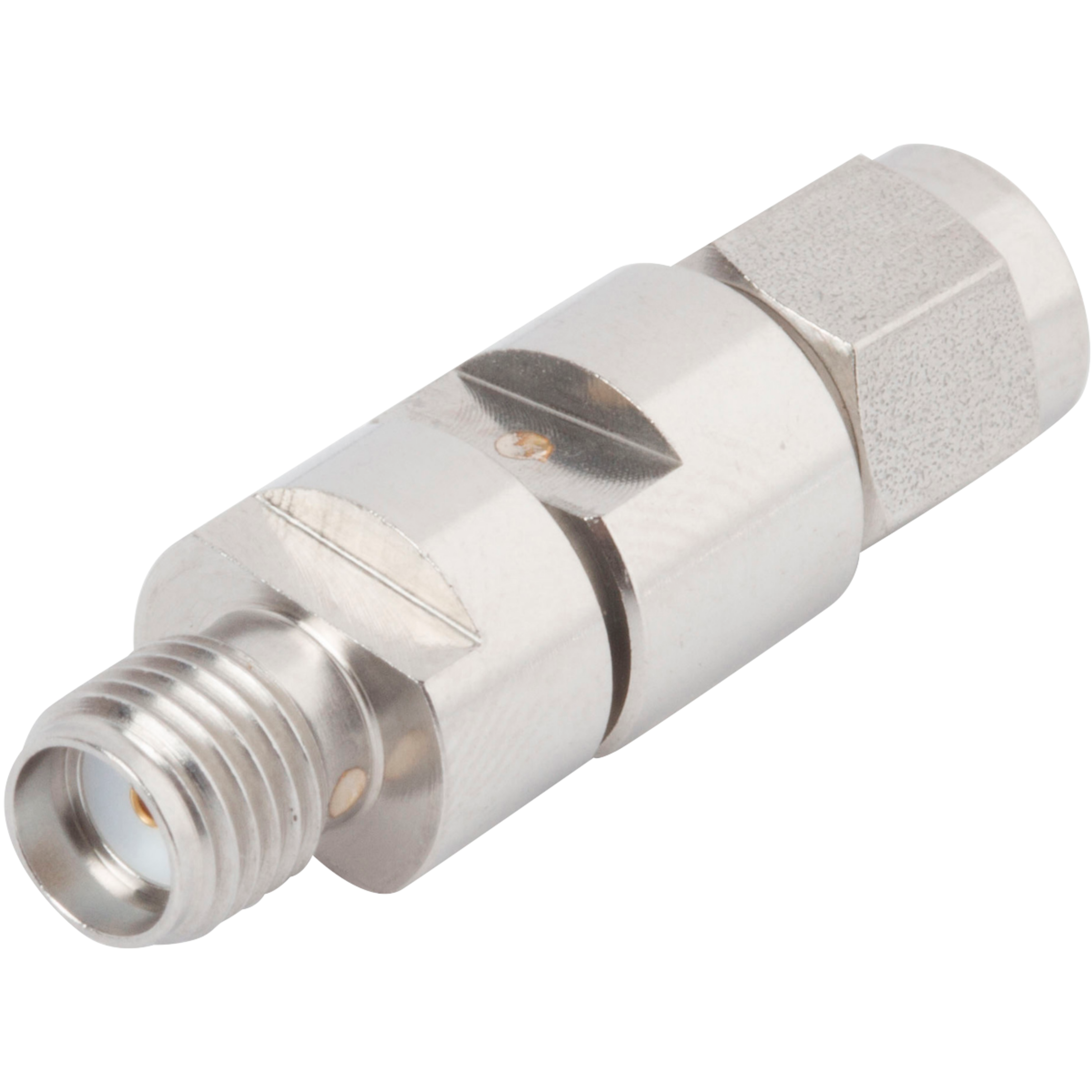

SMA Female to Male Attenuator, 18 GHz (Nonscreened)
