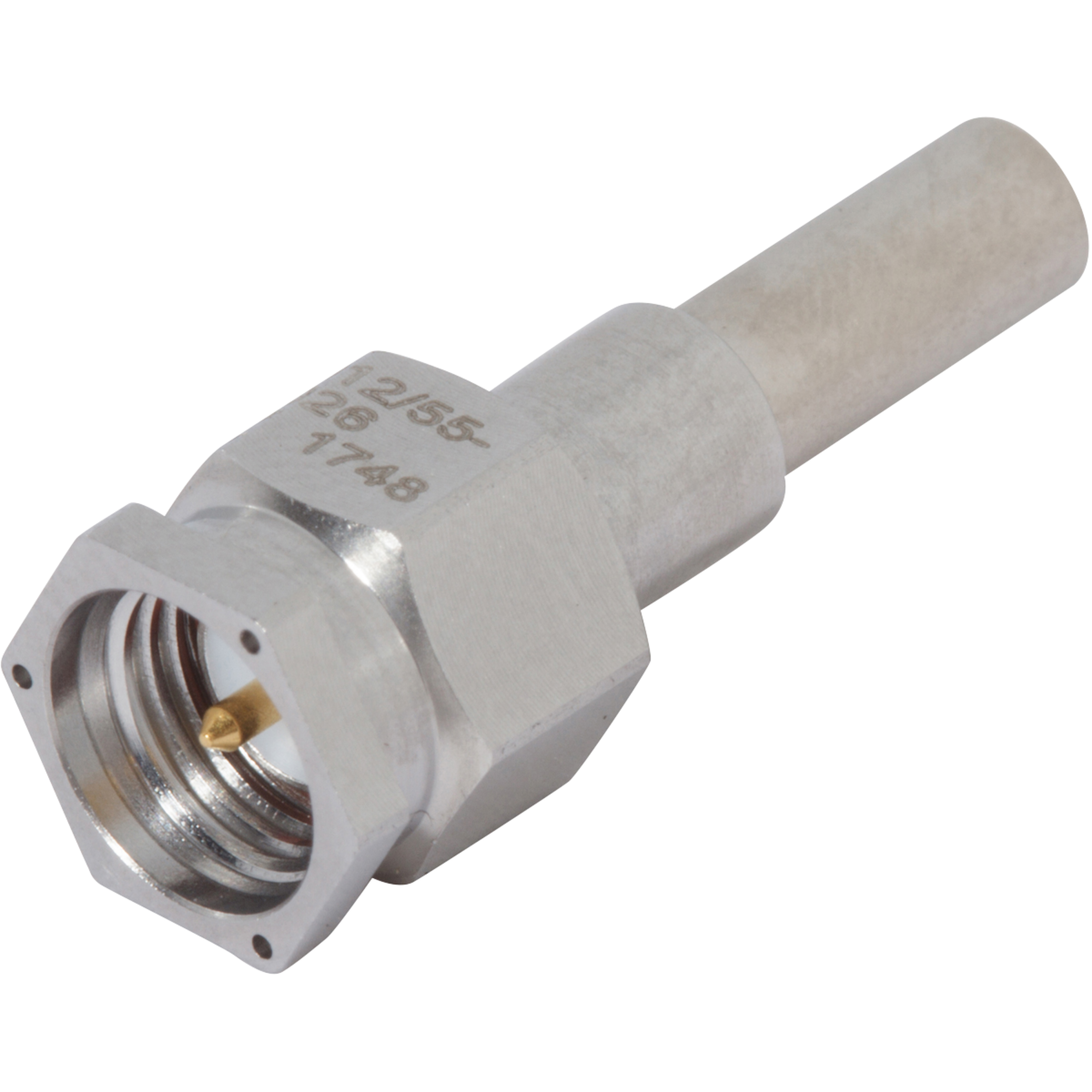

SMA Male Cable Connector, Lockwire Holes, for RG-174 Cable
P/N: M39012/55-3026

Loading...
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Finish Passivated
Cable Type RG-174
Electrical
Frequency 12.4 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Finish Passivated
Cable Type RG-174
Electrical
Frequency 12.4 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/55-3009

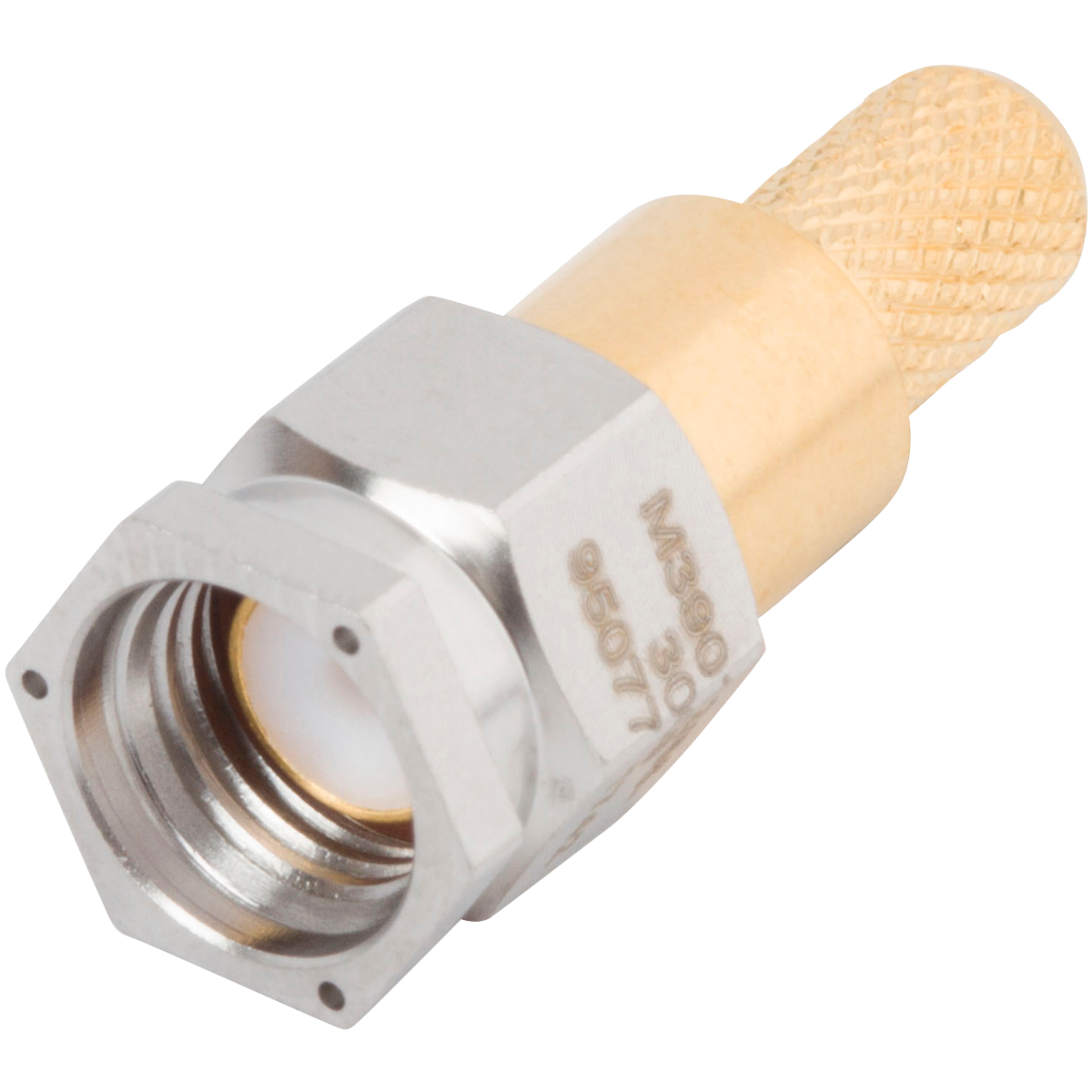

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 883
M39012/55-3009
SMA Connectors M39012/55-3009
Datasheet
Part #   M39012/55-3007

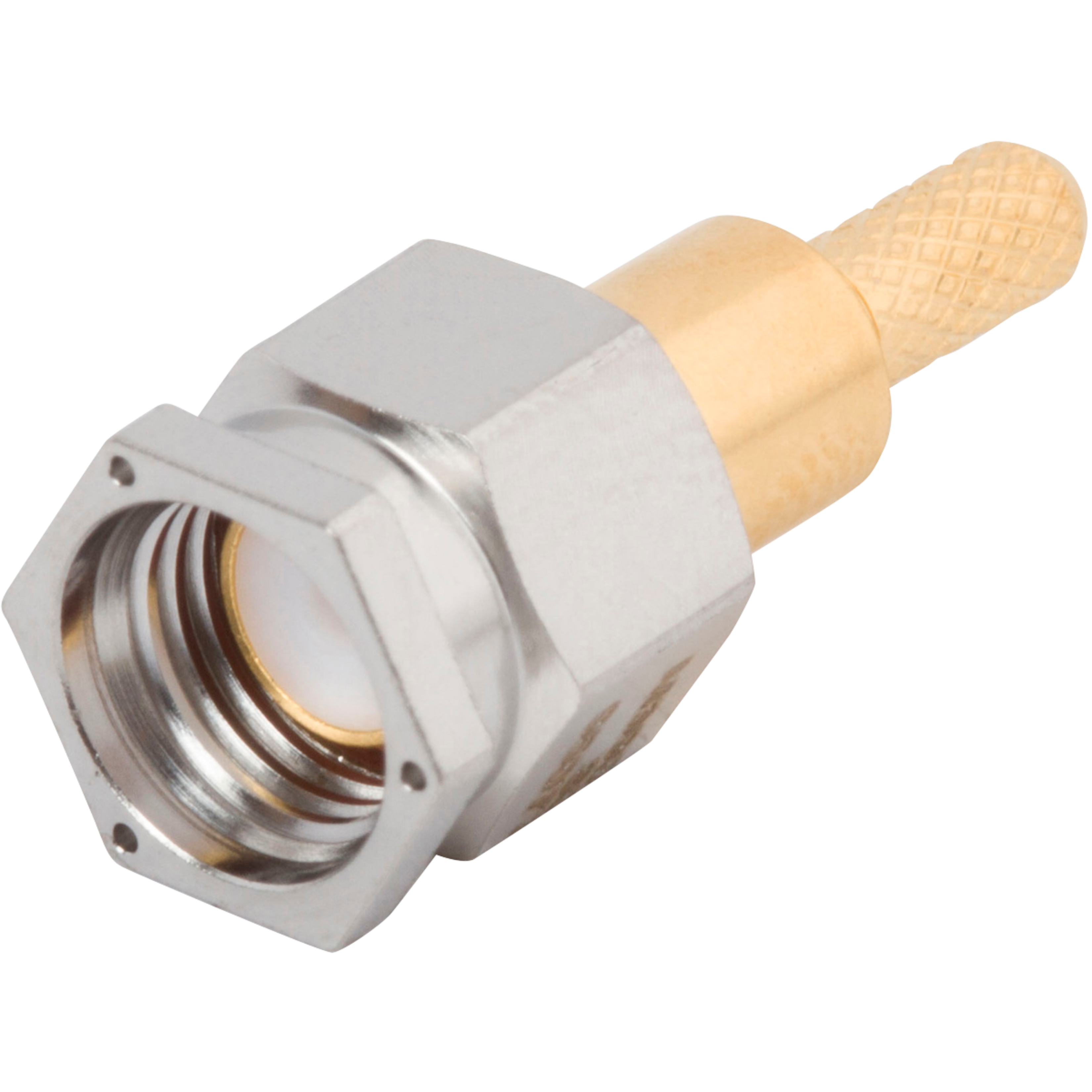

SMA Male Cable Connector, Lockwire Holes, for RG-174 Cable
