P/N: M39012/56-3026

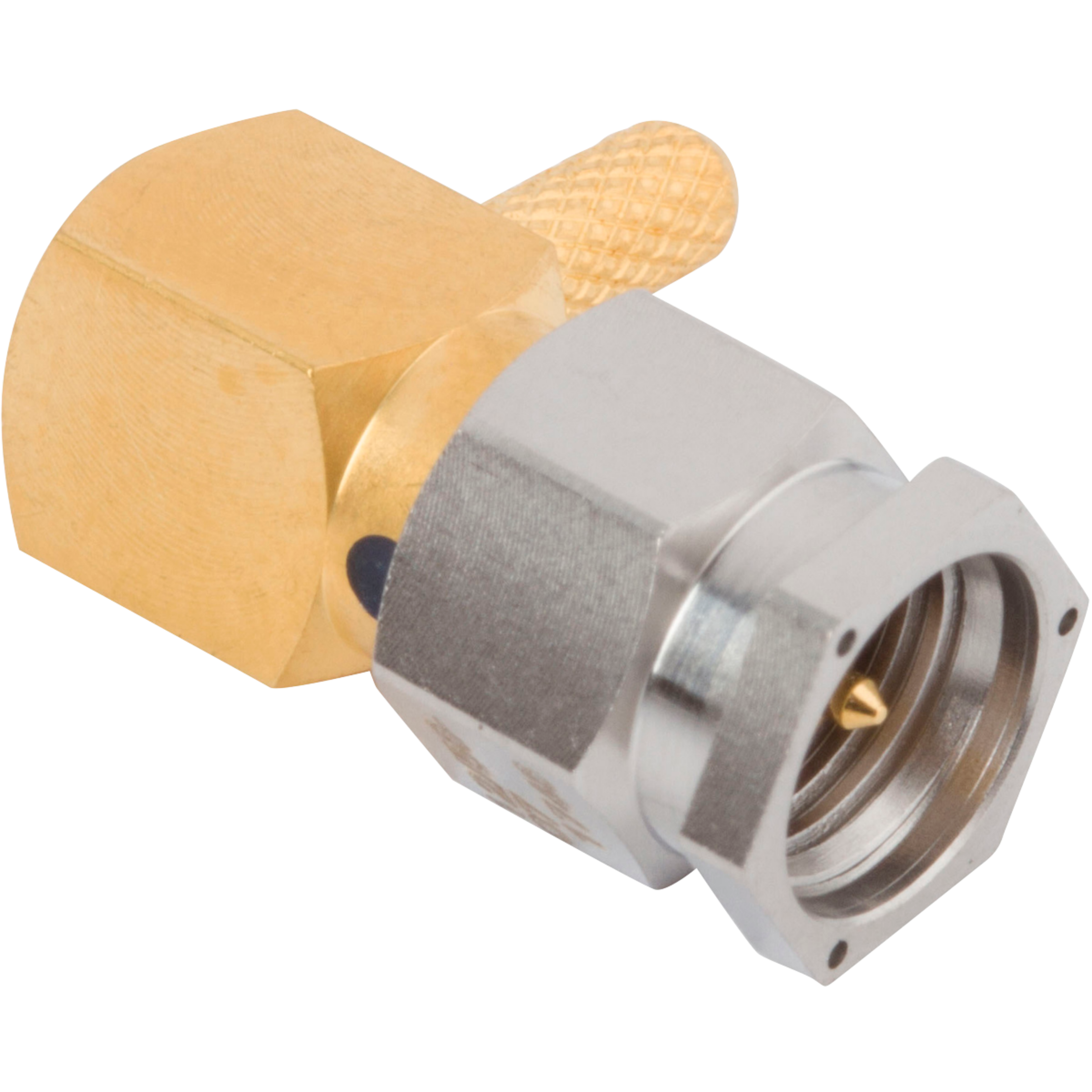

SMA Male Connector, Lockwire Holes, R/A for RG-174 Cable

In stock at Qty Order
TTI Inc Global Headquarters 290
Mouser Electronics 28
Electro Enterprises Inc 19
Microwave Components LLC 4
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Finish Passivated
MIL-SPEC M39012
Cable Type RG-174
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Finish Passivated
MIL-SPEC M39012
Cable Type RG-174
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3006

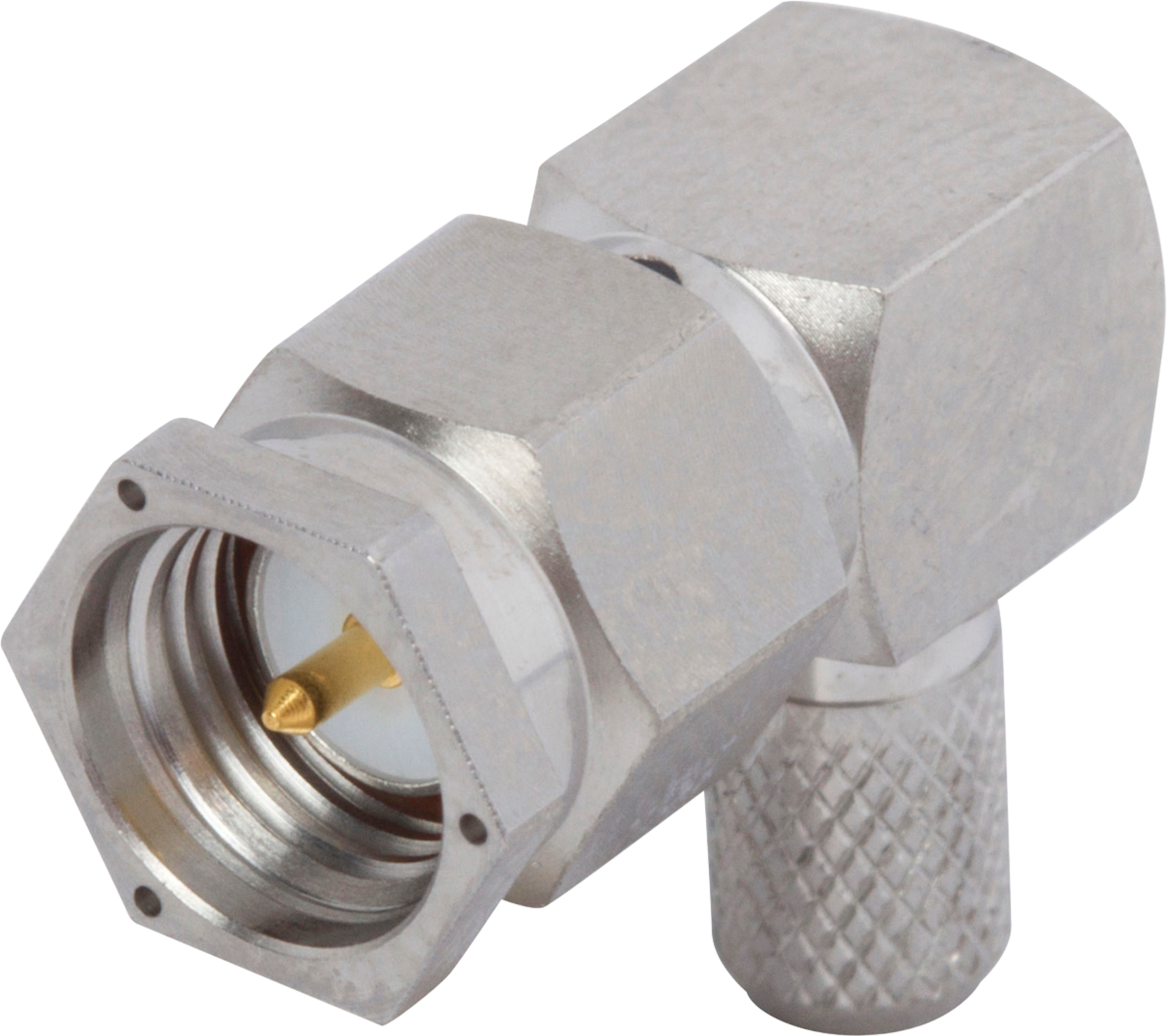

SMA Male Connector, Lockwire Holes, R/A for RG-178 Cable
