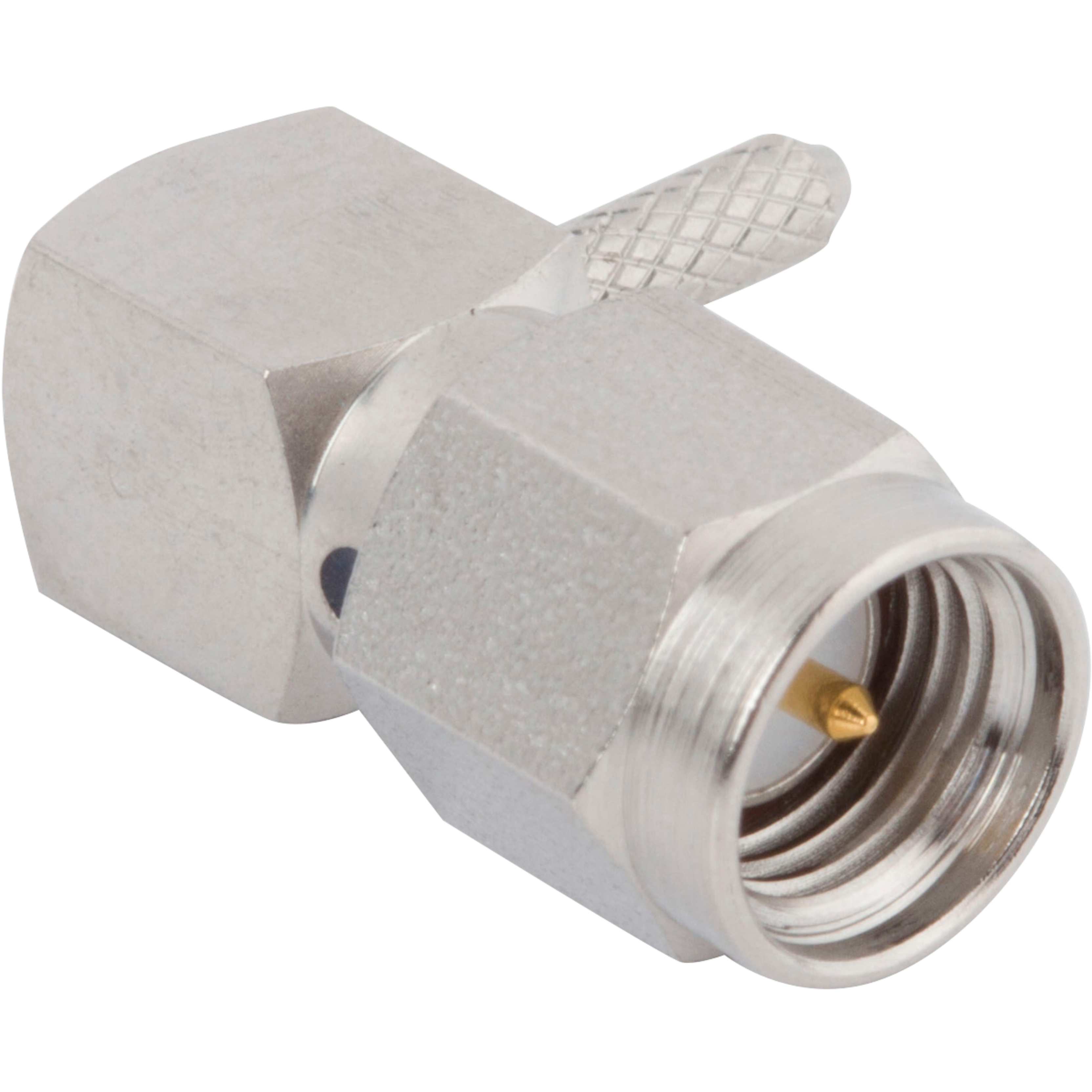

SMA Male Connector, R/A for RG-58 Cable
P/N: M39012/56B3116

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Number of Ports Single
Termination Style Crimp
Coupling Threaded
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
