P/N: 7012-1321

SMP Female to SMA Male 6" Cable Assembly for .085 Cable

In stock at Qty Order
Digi-Key Electronics 201
Master Electronics 92
TTI Inc Global Headquarters 50
Mouser Electronics 33
Farnell 28
Newark 16
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 SMA
Frequency 18 GHz
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 SMA
Frequency 18 GHz
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

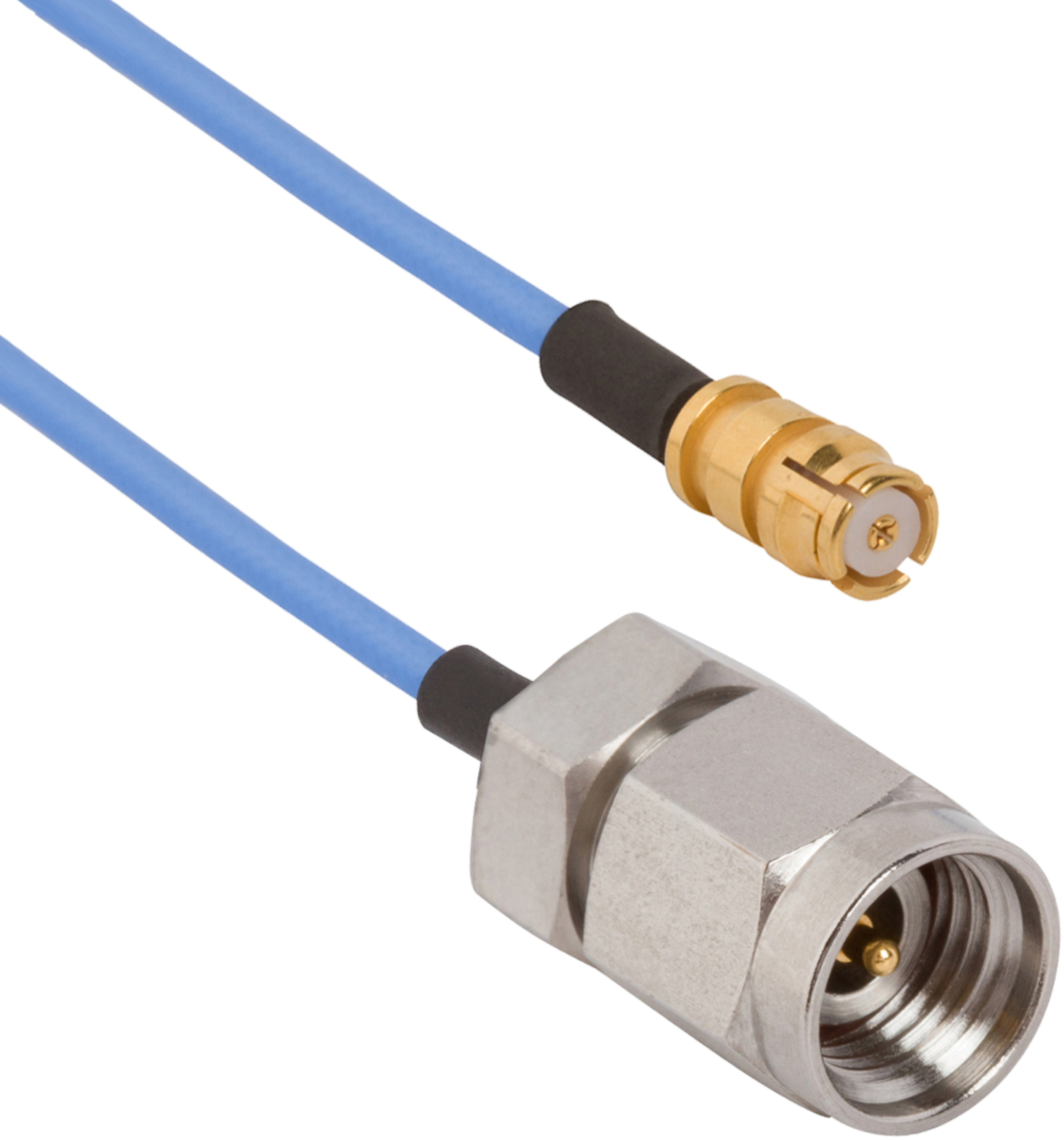

Part #   7012-1064

SMP Female to 2.92mm Male 6" Cable Assembly for .047 Cable"

Available Inventory: 35
7012-1064
SMP Cable Assemblies 7012-1064
Datasheet

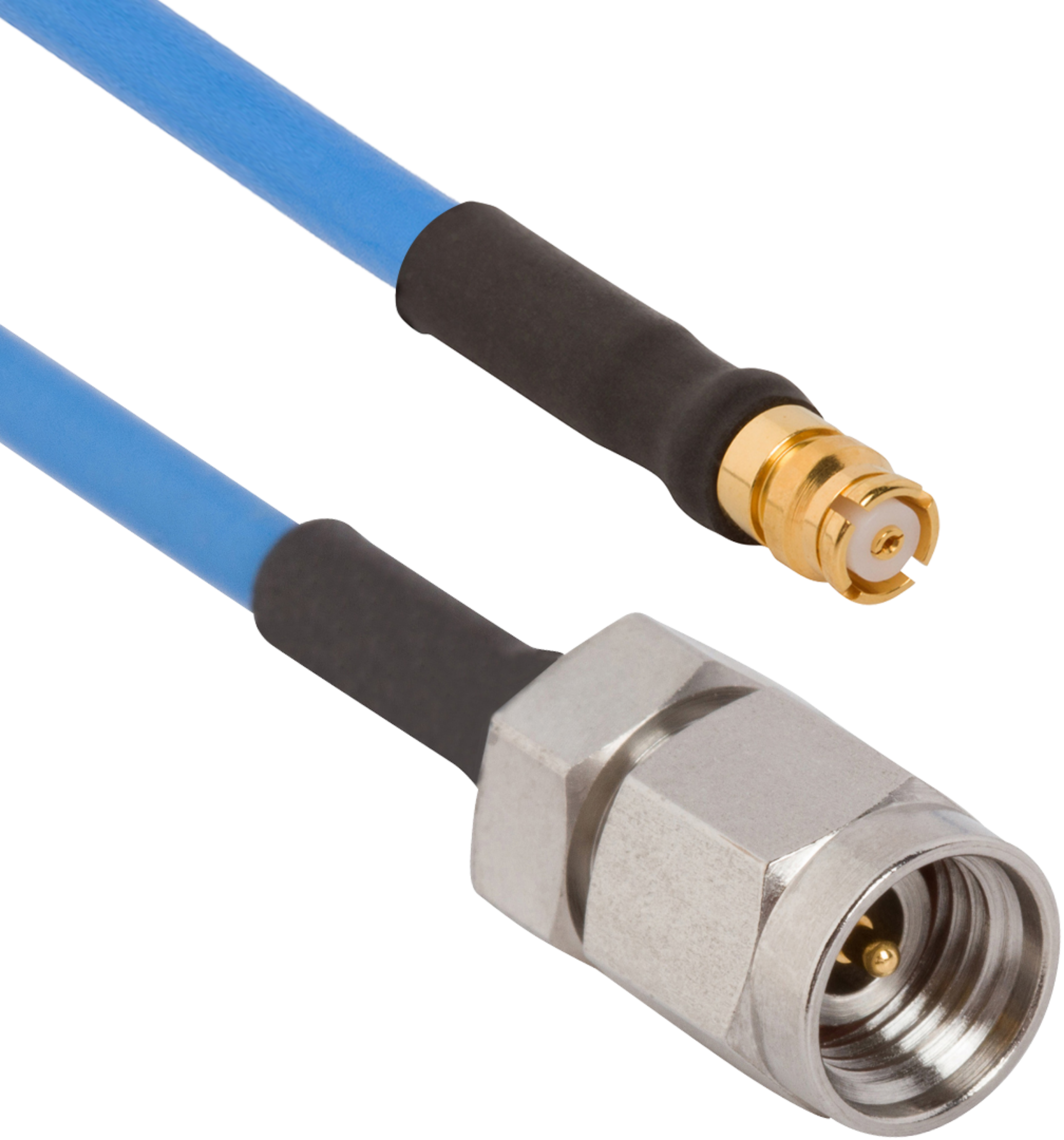

Part #   7012-1283

SMP Female to 2.92mm Male 6" Cable Assembly for .085 Cable"

Available Inventory: 79
7012-1283
SMP Cable Assemblies 7012-1283
Datasheet

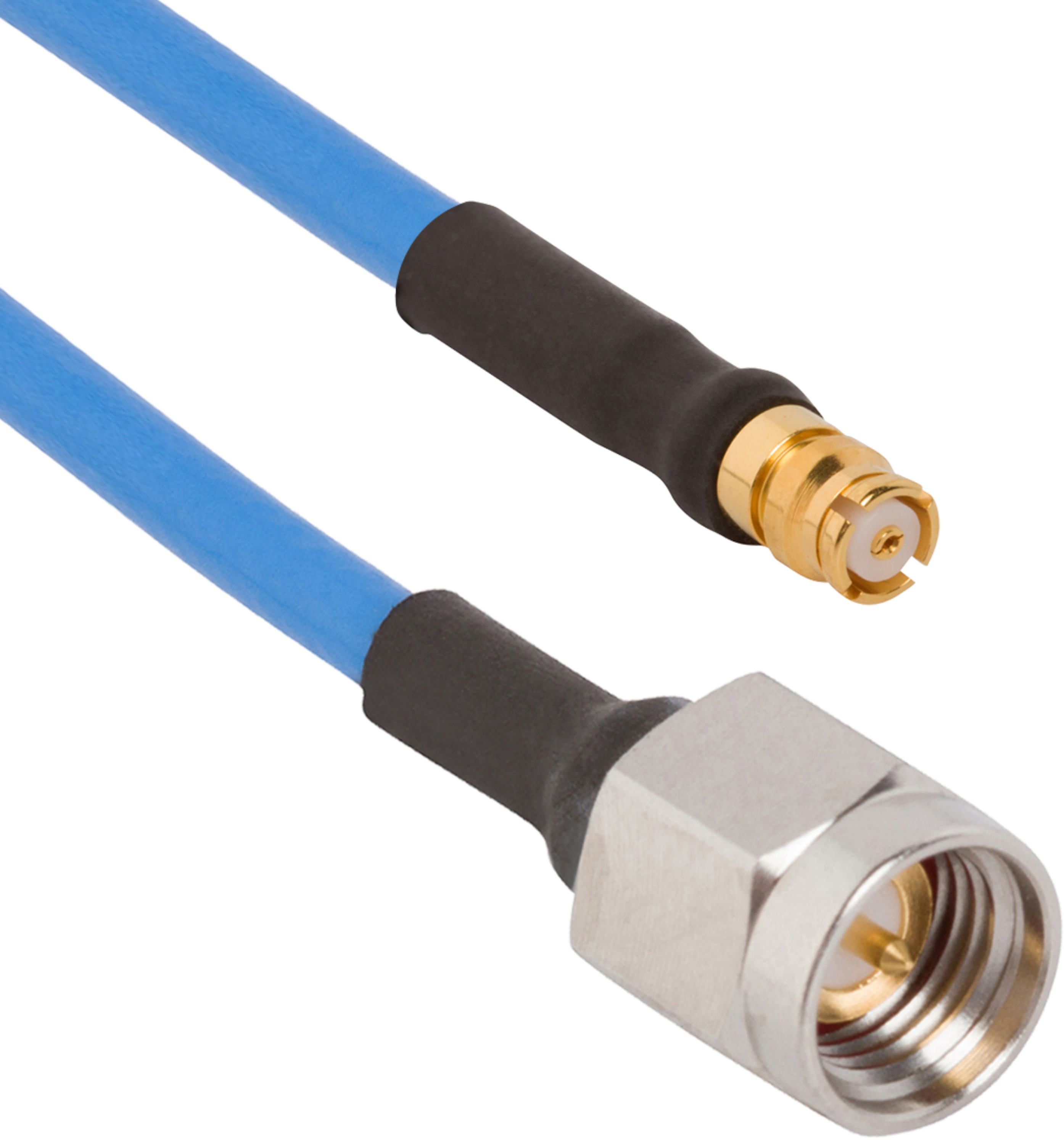

Part #   7012-1322
