P/N: SF3211-60193

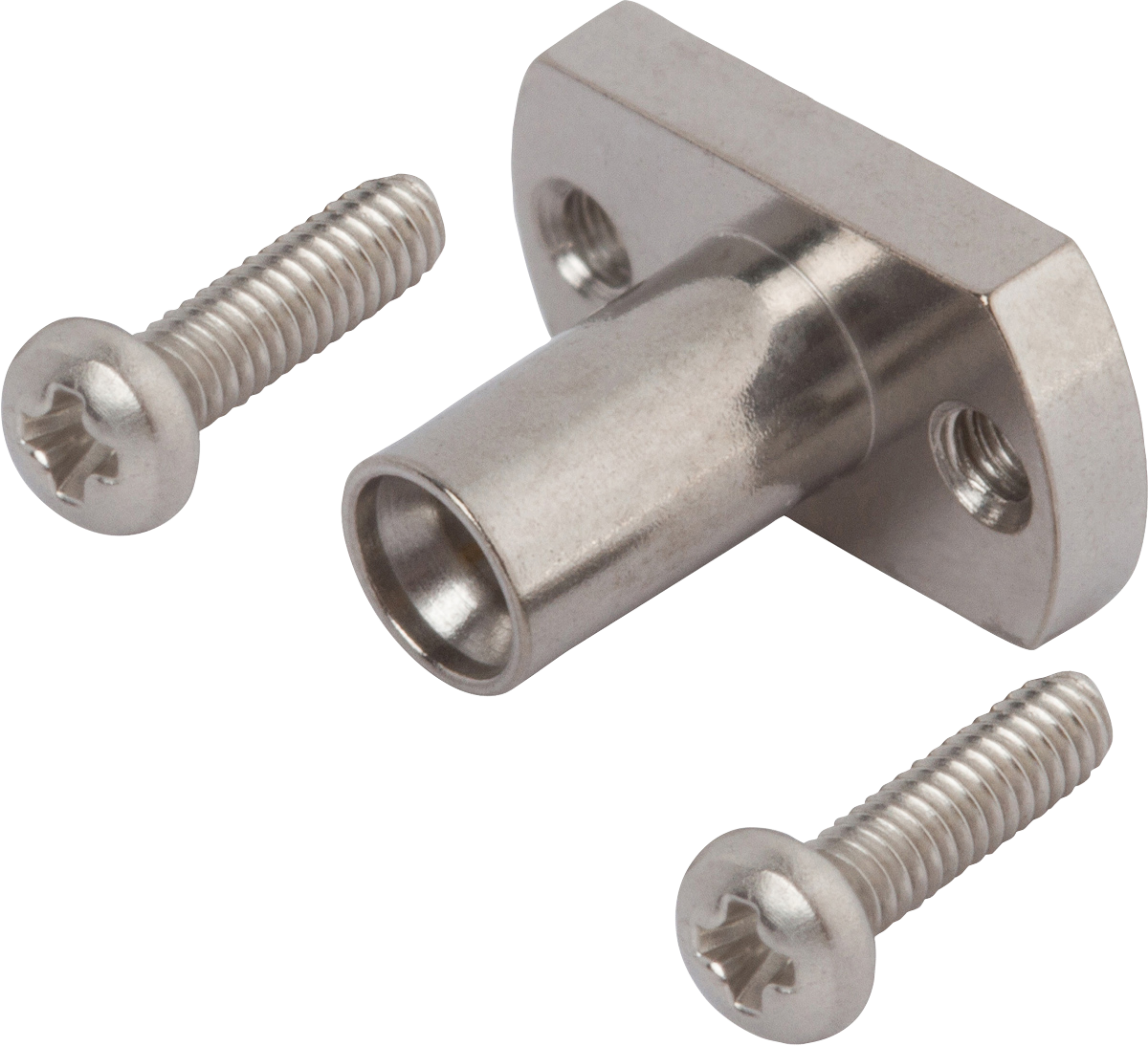

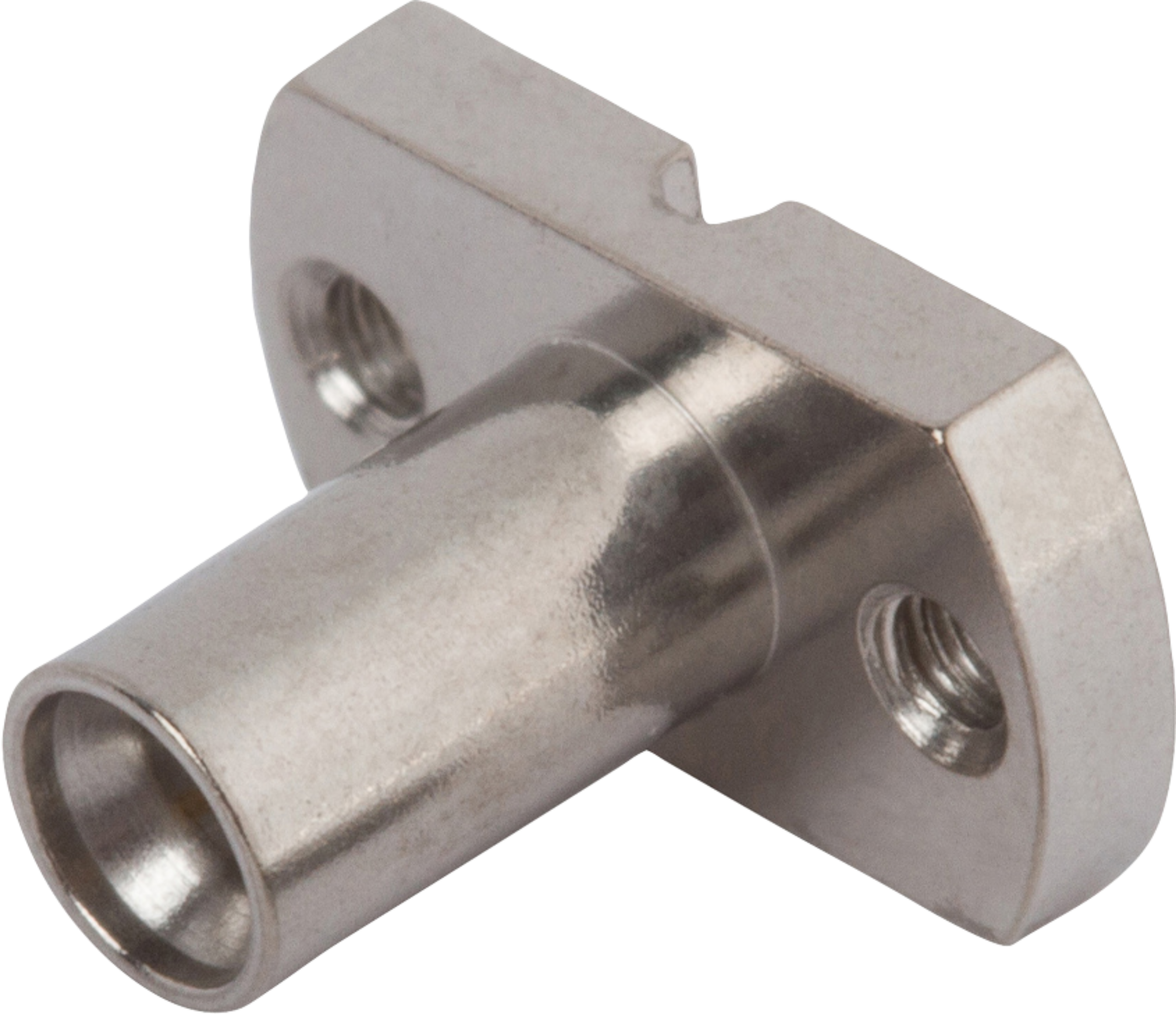

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole (Stripline)

In stock at Qty Order
Mouser Electronics 70
Newark 55
Farnell 55
Arrow Electronics Inc 20
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Frequency 65 GHz
Finish Passivated
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Withdrawal Force - SB 1.5 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
