P/N: SF3211-60193-1S

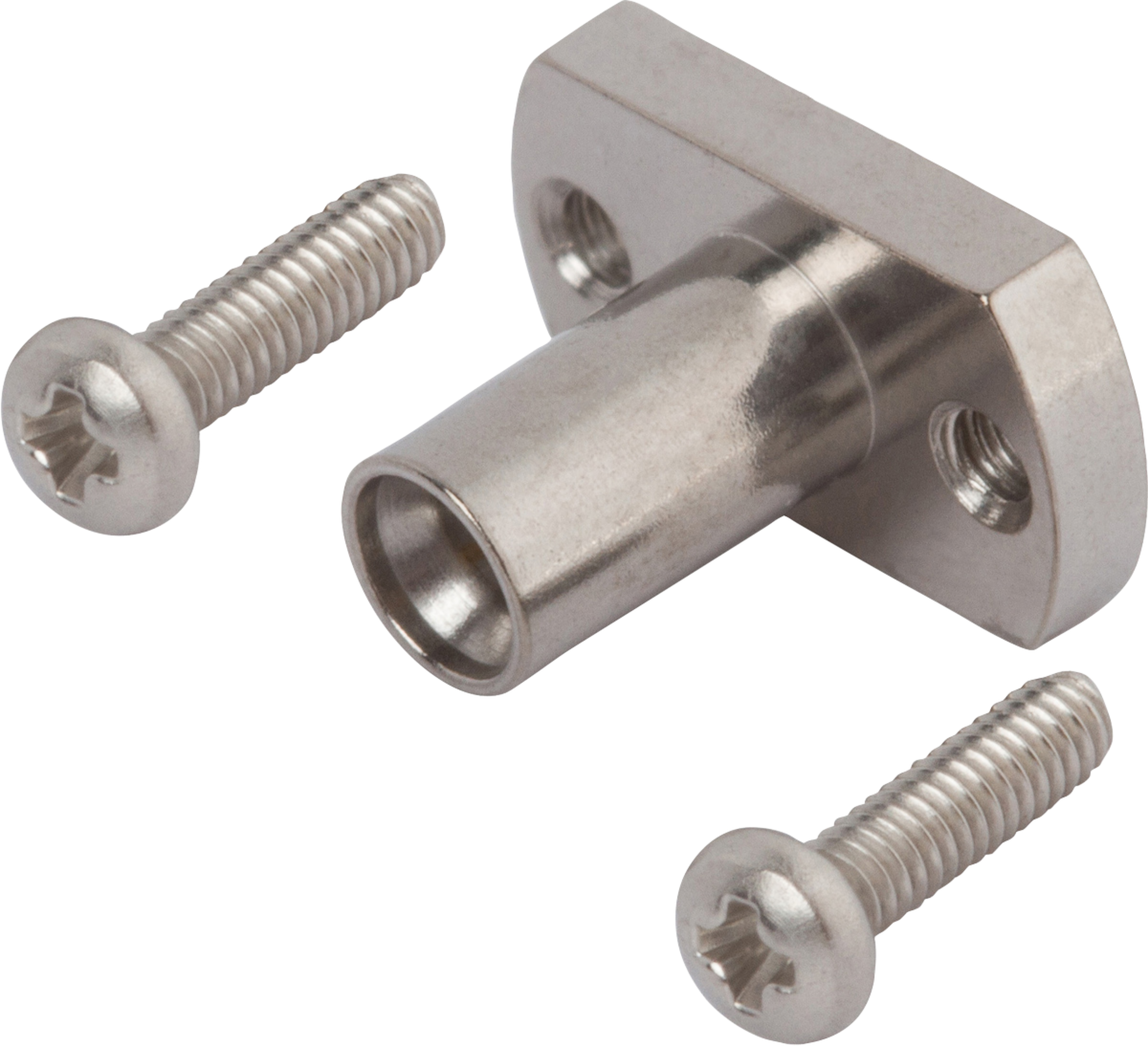

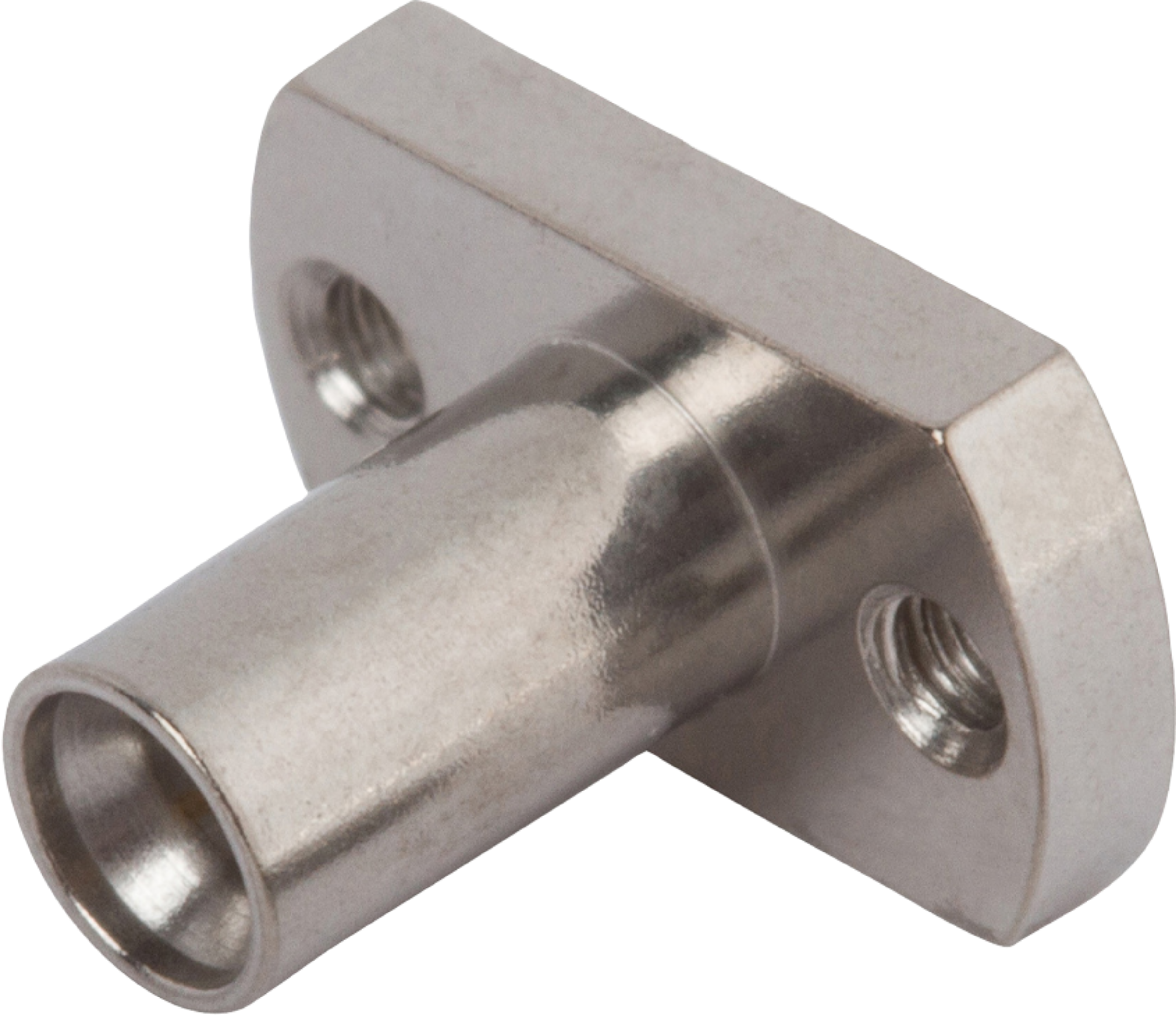

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (Stripline)

In stock at Qty Order
Mouser Electronics 82
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Frequency 65 GHz
Finish Passivated
Termination Style Solder-free
Impedance 50 ohms
Electrical
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
