P/N: SF3211-60193-2S

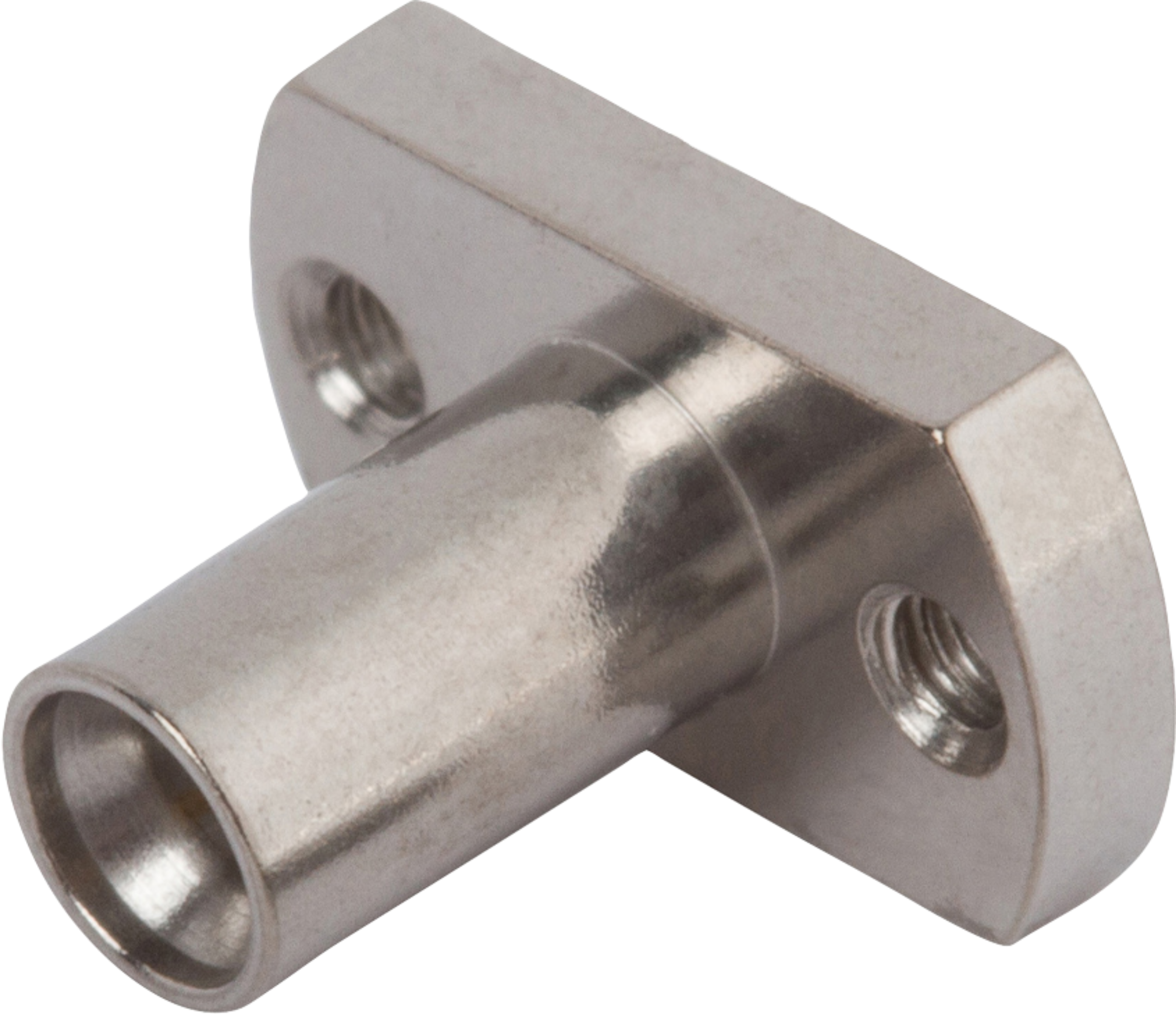

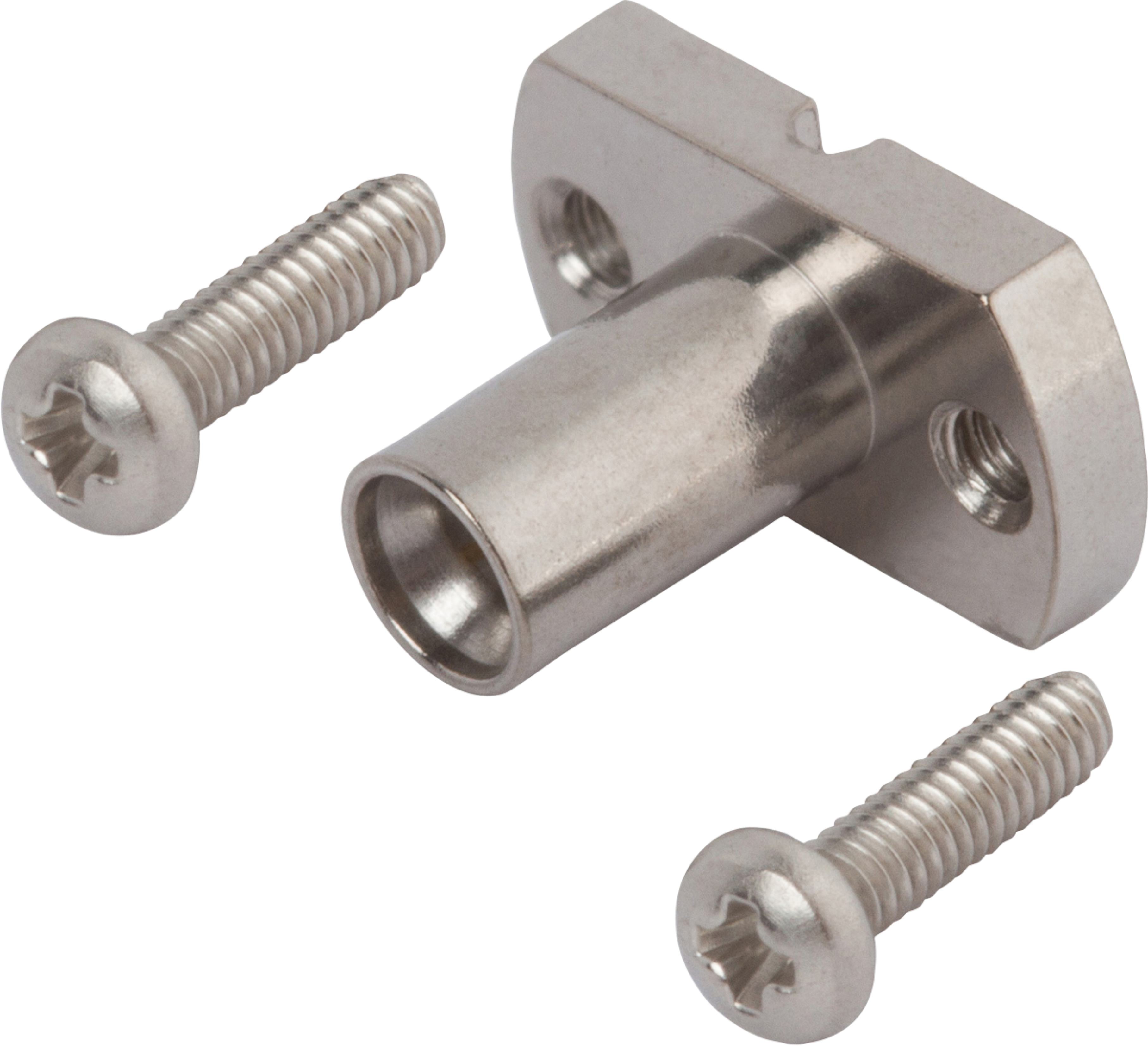

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (Stripline)

In stock at Qty Order
Newark 100
Arrow Electronics Inc 100
Farnell 100
Mouser Electronics 38
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Push-on
Gender Plug (Male)
Termination Style Solder-free
Body Style 2 Hole
Frequency 65 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Impedance (Ω) 50
Mating Cycles - SB 500
Dielectric withstanding Voltage 325 VRMS
Frequency GHz 65 GHz
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
