Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Pin |
| Cable Type | 0.047 Flexible Coax |
| Mounting Type | D38999 Series I, II, III and IV |
| Style | Size 12 |
| Family | SOSA Aligned |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Gold |
| RF Series | SMPM |
| Cable Builder Attributes | |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 4.5 lbs |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold
These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
| CE / UKCA | Not Yet Reviewed
Please contact our compliance team for more information. |
|
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:21:24 AM
|
|
Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Pin |
| Cable Type | 0.047 Flexible Coax |
| Mounting Type | D38999 Series I, II, III and IV |
| Style | Size 12 |
| Family | SOSA Aligned |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Gold |
| RF Series | SMPM |
| Cable Builder Attributes | |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 4.5 lbs |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Related products
Part # 7093-0174
SMPM (Size 12) D38999 Pin Contact to SMA Male 6" Cable Assembly for .085 Cable
Available Inventory: 13
7093-0174
SMPM Cable Assemblies 7093-0174
Part # 7093-0175
SMPM (Size 12) D38999 Pin Contact to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 0
7093-0175
SMPM Cable Assemblies 7093-0175
Part # 7093-0176
SMPM (Size 12) D38999 Socket Contact to SMA Male 6" Cable Assembly for .085 Cable
Available Inventory: 59
7093-0176
SMPM Cable Assemblies 7093-0176
Part # 7093-0177
SMPM (Size 12) D38999 Socket Contact to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 0
7093-0177
SMPM Cable Assemblies 7093-0177
3221-4002
SMPM Connectors 3221-4002
8001-4102
NSME Connectors 8001-4102
8001-4104
NSME Connectors 8001-4104
SF3211-6004
SMPM Connectors SF3211-6004
Part # 7093-0277
SMPM (Size 12) D38999 Socket Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 47
7093-0277
SMPM Cable Assemblies 7093-0277
Part # 7093-0278
SMPM (Size 12) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 14
7093-0278
SMPM Cable Assemblies 7093-0278
Customers Also Viewed

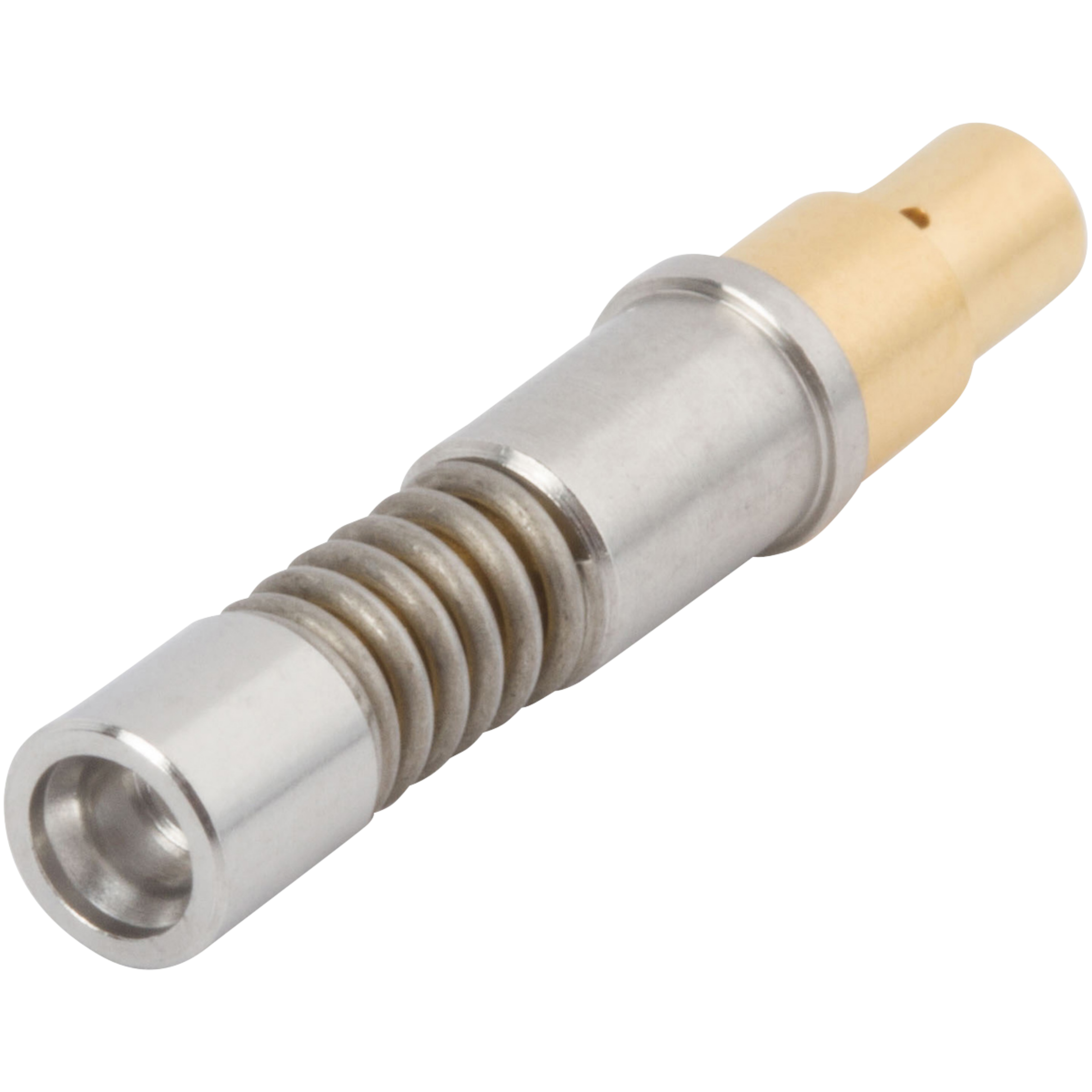

SF3211-6004
SMPM Connectors SF3211-6004

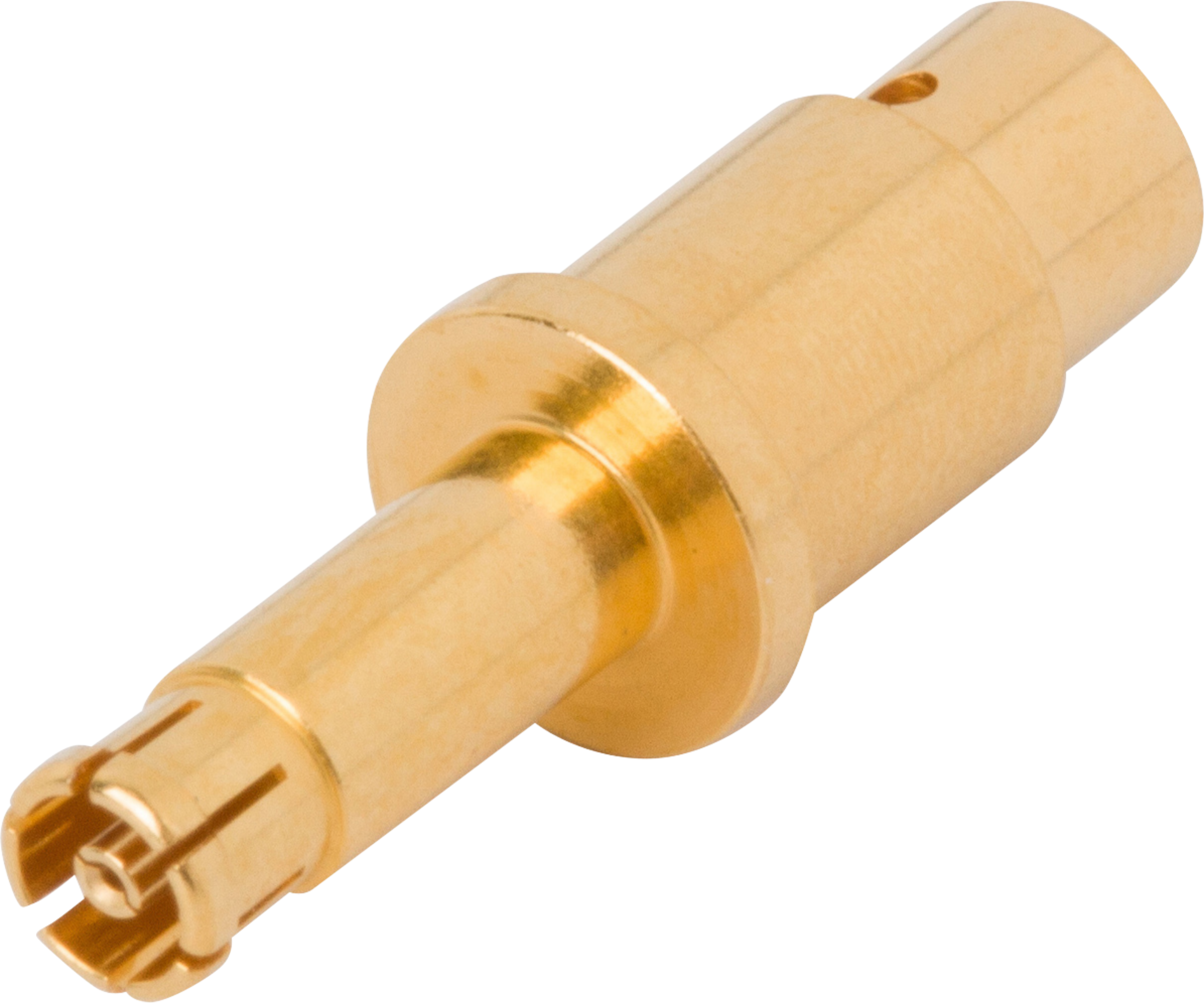

3221-4002
