SMPS Male VITA 67.3 to SMA Male 12" Cable Assembly for .047 Cable
P/N: 7038-0338

In stock at Qty Order
TTI Inc Global Headquarters 18
Digi-Key Electronics 18
Interstate Connecting Components 18
Newark 10
Farnell 10
Heilind Electronics 6
Mouser Electronics 5
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Coupling Push-on
Orientation (Body) Straight
Gender Plug (Male)
Detent Smooth Bore
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.0 lbs
Insertion Force 1.2 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:14:12 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPS
Coupling Push-on
Orientation (Body) Straight
Gender Plug (Male)
Detent Smooth Bore
Mounting Type Snap-in
Number of Ports Single
Termination Style Solder
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles 500
Withdrawal Force 1.0 lbs
Insertion Force 1.2 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF1138-6020

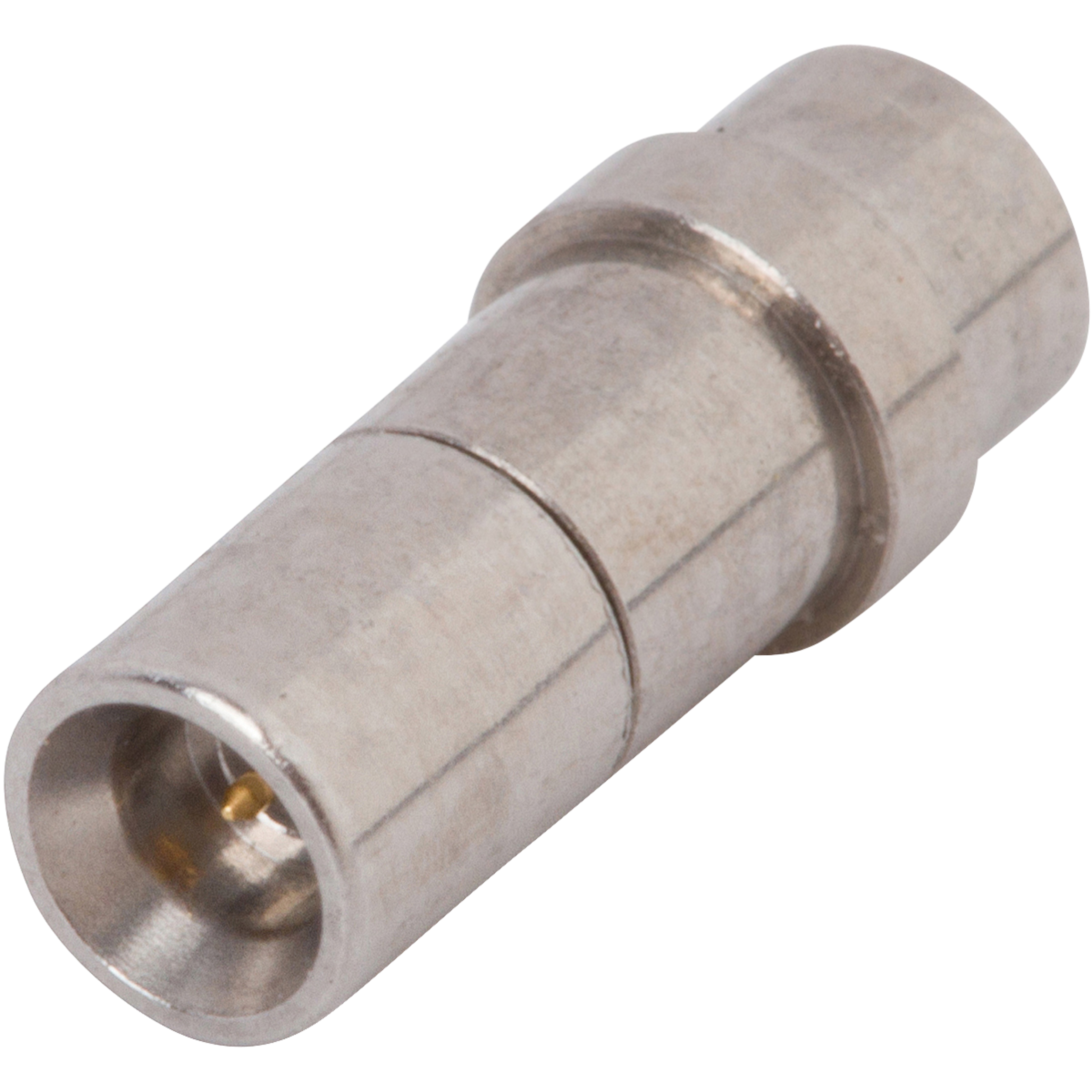

SMPS Male to SMPS VITA 67.3 Male Plug-in Adapter

Available Inventory: 103
SF1138-6020
VITA Adapters SF1138-6020
Datasheet
Part #   SF3811-60059

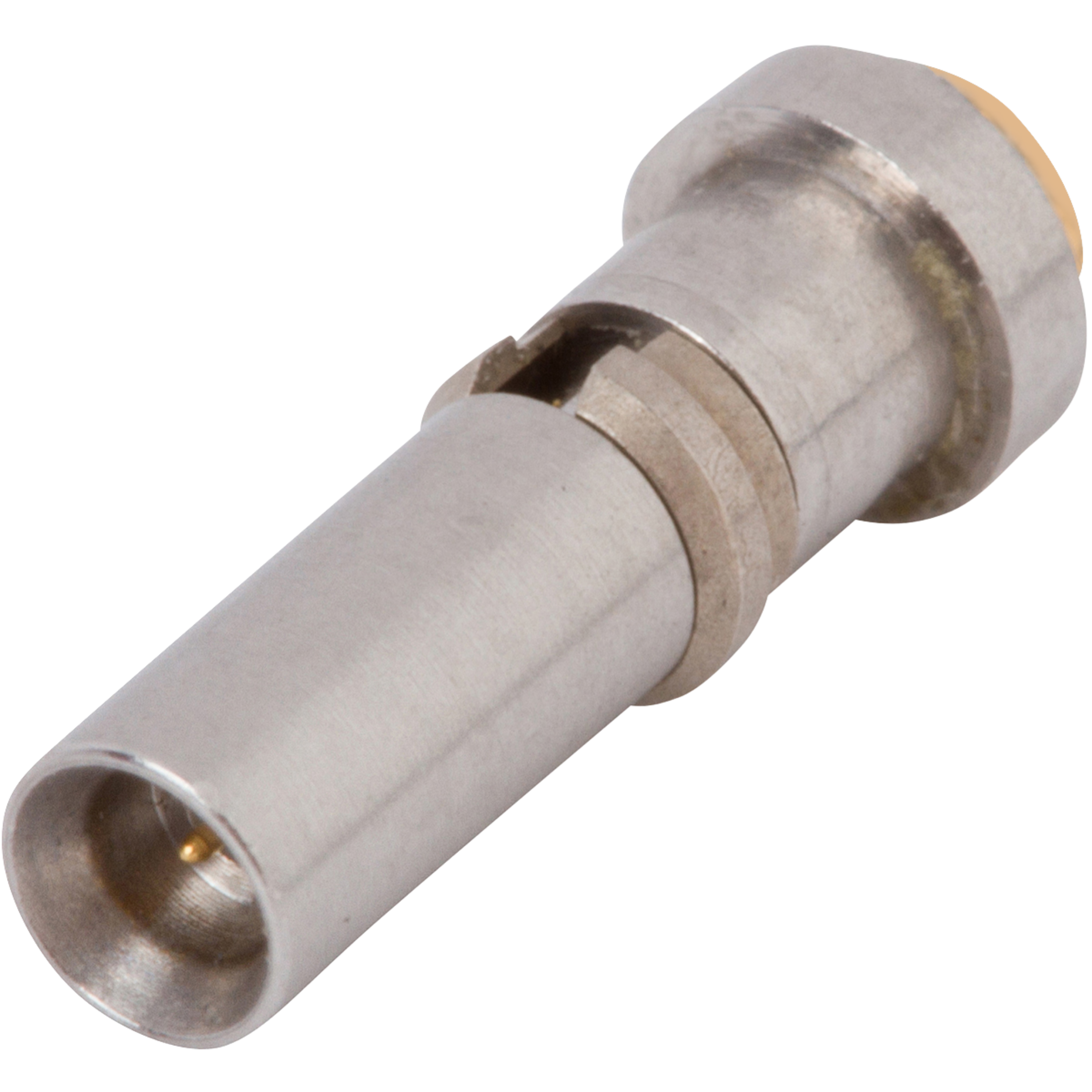

SMPS VITA 67.3 Male Plug-in Contact for .086 Cable

Available Inventory: 44
SF3811-60059
VITA Connectors SF3811-60059
Datasheet
Part #   7038-0337

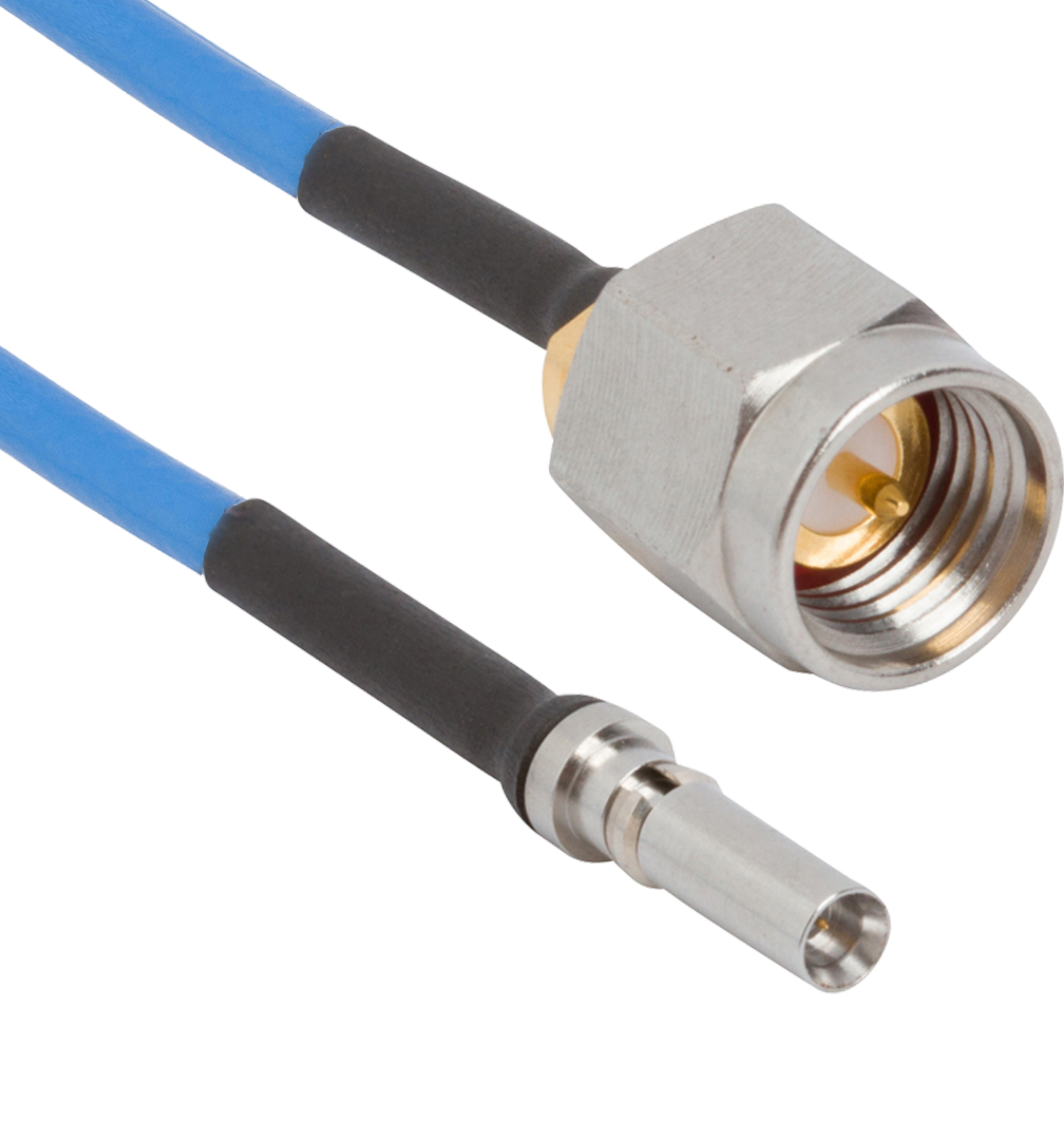

SMPS Male VITA 67.3 to SMA Male 12" Cable Assembly for .085 Cable
