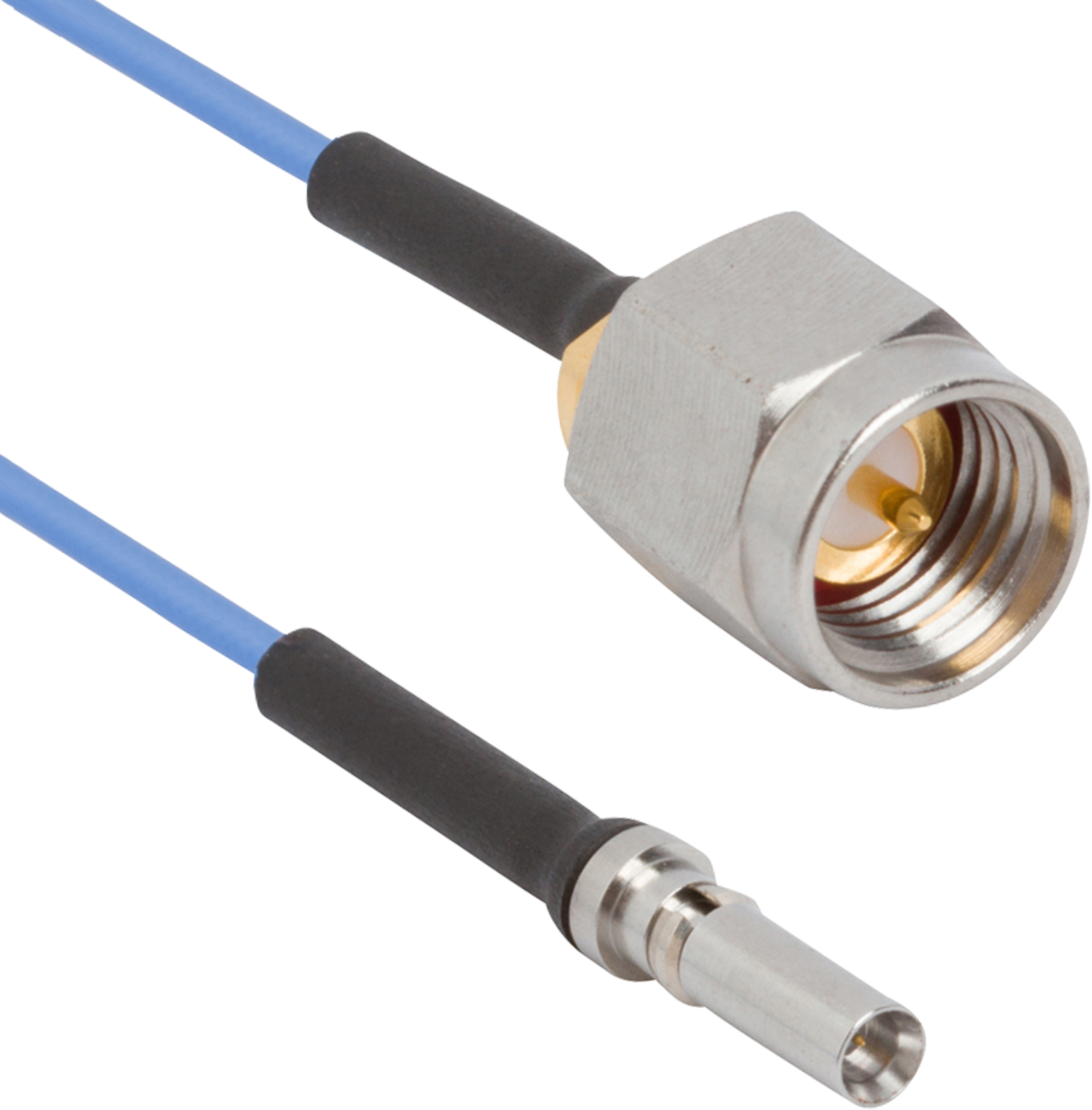

Attribute name | Attribute value |
---|---|
Family | VITA 67 |
RF Series | VITA SMPS |
Gender | Plug (Male) |
Orientation (Body) | Straight |
Coupling | Push-on |
Detent | Smooth Bore |
Termination Style | Solder |
Mounting Type | Snap-in |
Number of Ports | Single |
Frequency | 18 GHz |
Impedance | 50 ohms |
Gender 2 | Plug (Male) |
RF Series 2 | SMA |
Orientation 2 (Body) | Straight |
Cable Type | 0.085 Flexible Coax |
Cable Length | 12" |
Electrical | |
Impedance (Ω) | 50 |
Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
Dielectric withstanding Voltage | 250 VRMS |
Frequency GHz | 100 GHz |
Mating Cycles | 500 |
Mechanical | |
Insertion Force | 1.2 lbs (per contact) |
Withdrawal Force | 1.0 lbs |
Temperature Rating | -65°C to +165°C |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Environmental | |
Vibration | MIL-STD-202, Method 204, Condition D |
Shock | MIL-STD-202, Method 213, Condition I |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
