TNC Male Cable Connector, Lockwire Holes, for RG-214 Cable
P/N: M39012/26-0225

Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Cable Type RG-214
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Cable Type RG-214
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/26B0006

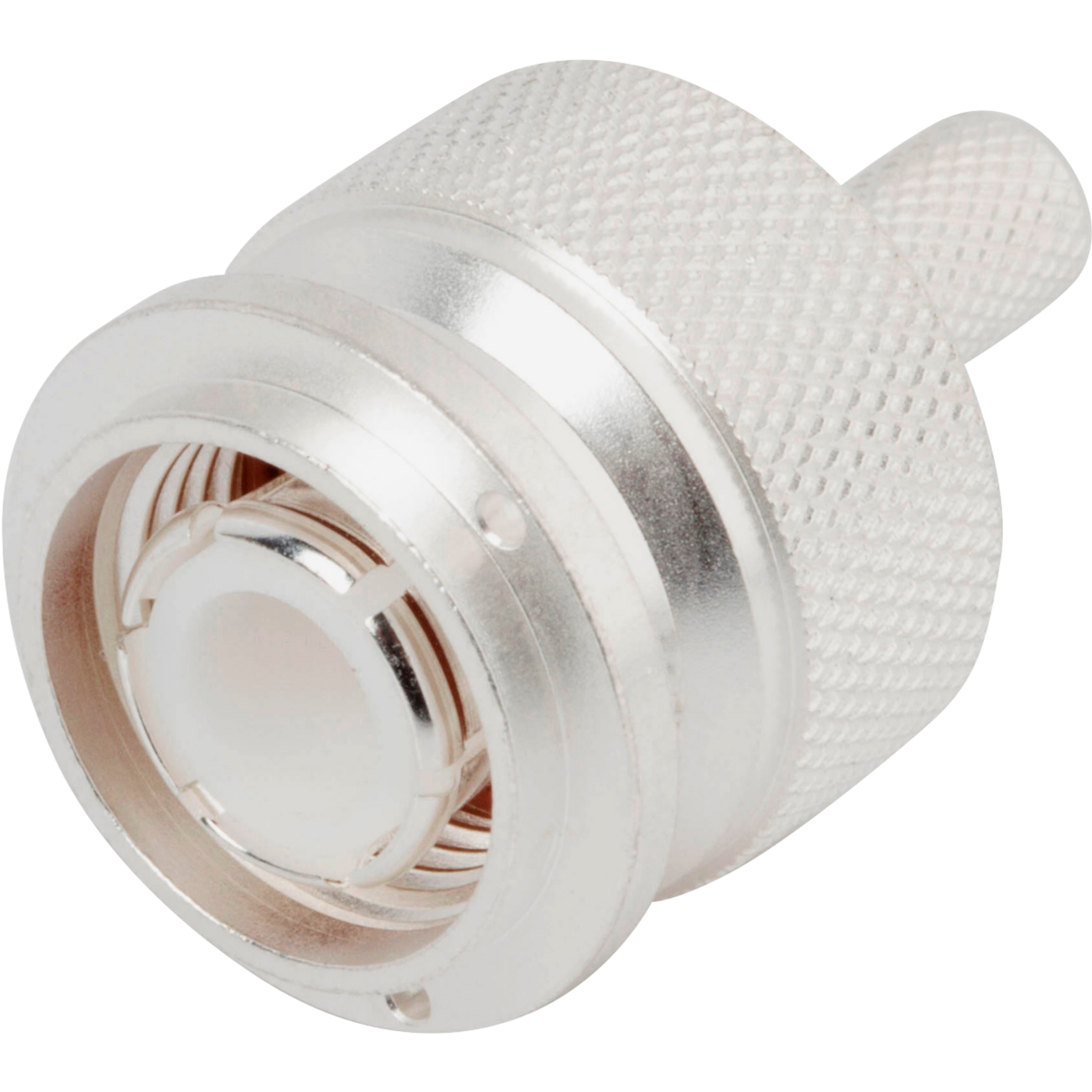

TNC Male Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 127
M39012/26B0006
TNC Connectors M39012/26B0006
Datasheet
Part #   M39012/26-0011

TNC Male Cable Connector, Lockwire Holes, for RG-142 Cable

Available Inventory: 868
M39012/26-0011
TNC Connectors M39012/26-0011
Datasheet
Part #   M39012/26-0018

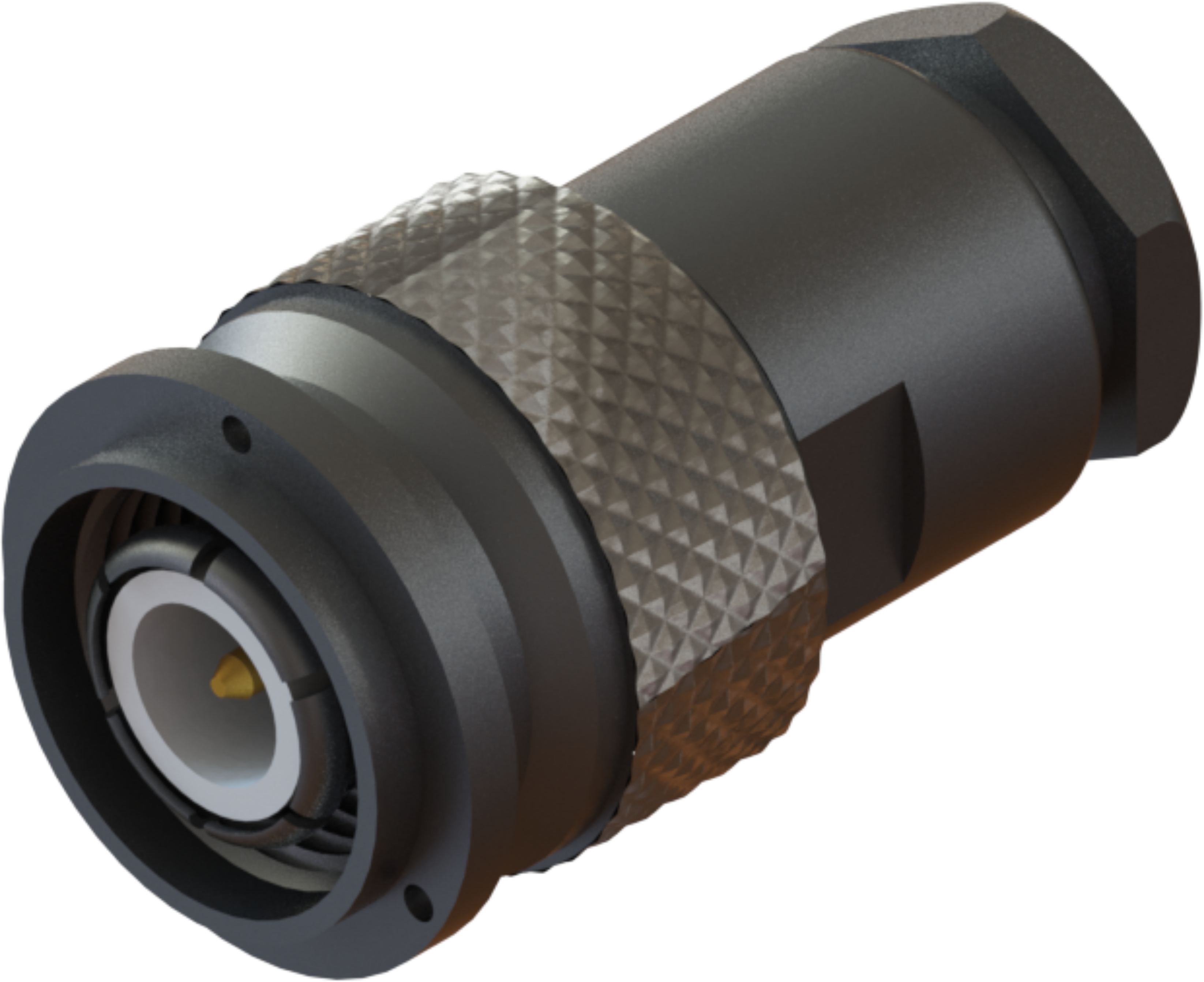

TNC Male Cable Connector, Lockwire Holes, for RG-174 Cable
