P/N: M39012/26B0006

TNC Male Connector, Lockwire Holes for RG-58 Cable

In stock at Qty Order
Mouser Electronics 104
Heilind Electronics 11
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
RF Series TNC
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Gender Plug (Male)
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
RF Series TNC
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
MIL-SPEC M39012
Cable Type RG-58
Gender Plug (Male)
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

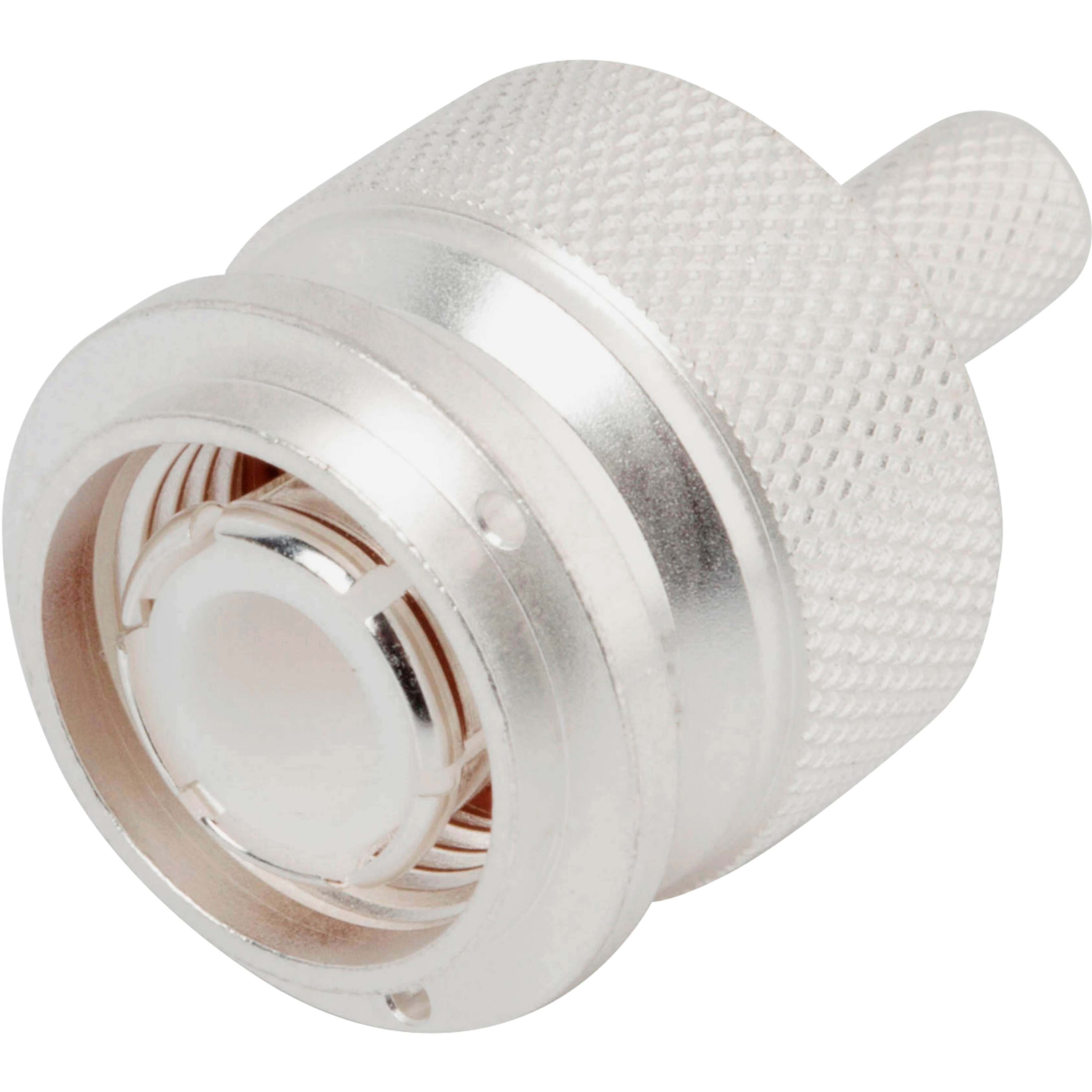

Part #   M39012/26B0015

TNC Male Cable Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 101
M39012/26B0015
TNC Connectors M39012/26B0015
Datasheet

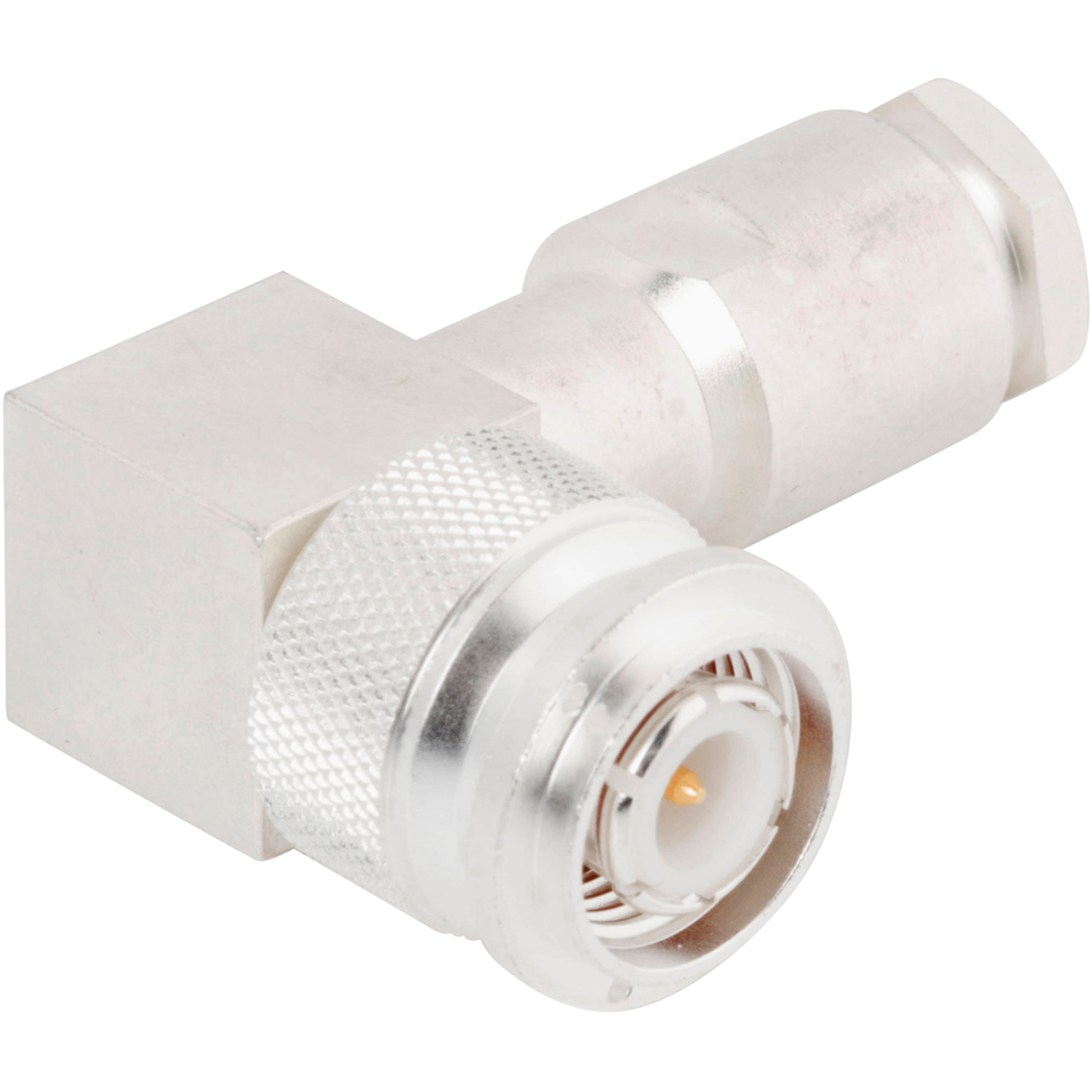

Part #   M39012/30-0101
