P/N: M39012/30-0101

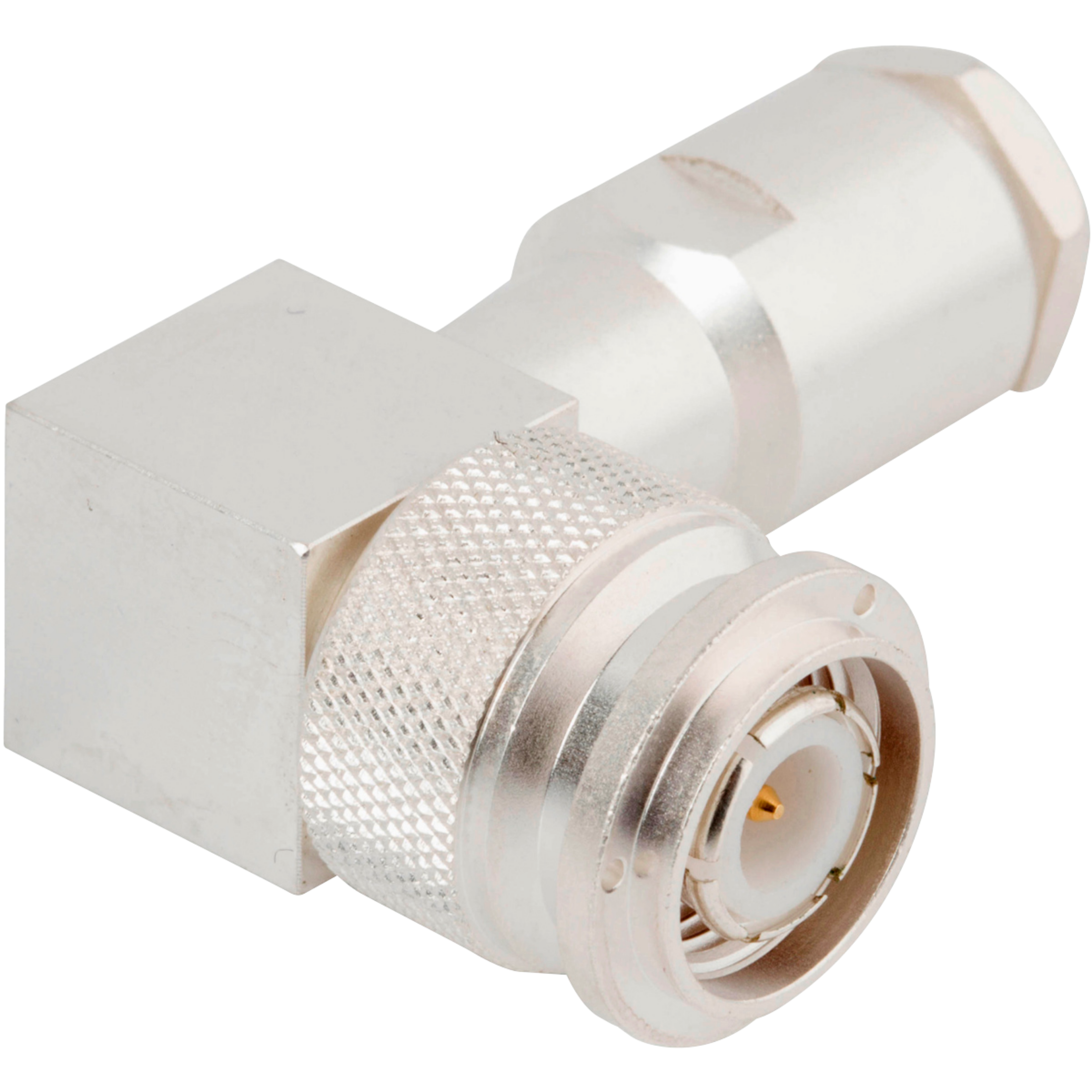

TNC Male Connector, R/A for RG-58 Cable

Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Frequency 11 GHz
Number of Ports Single
Impedance 50 ohms
Cable Type RG-58
MIL-SPEC M39012
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Frequency 11 GHz
Number of Ports Single
Impedance 50 ohms
Cable Type RG-58
MIL-SPEC M39012
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   M39012/26B0015

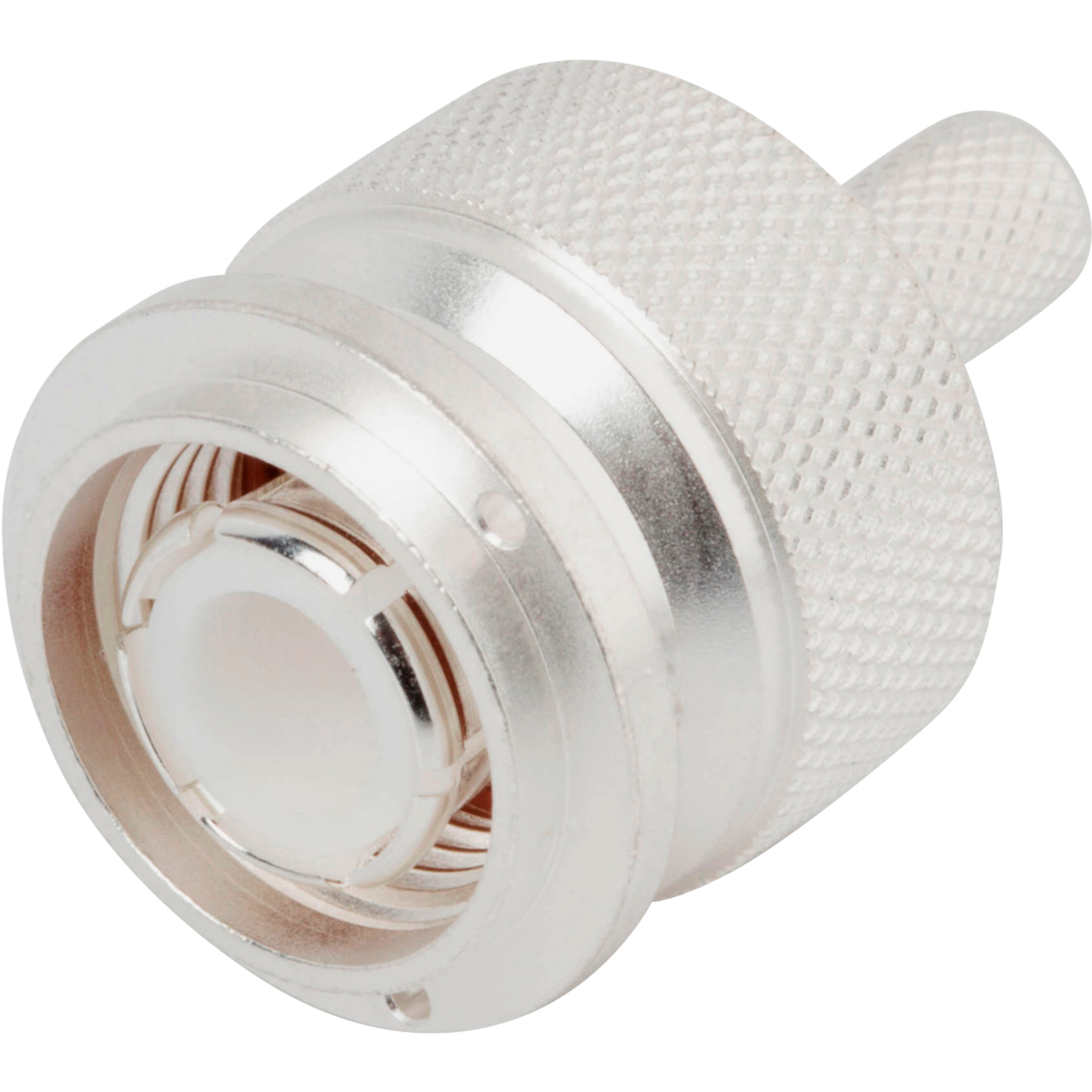

TNC Male Cable Connector, Lockwire Holes for RG-58 Cable
