P/N: M39012/25-0111

Type N Male Dust Cap, Wire Rope

In stock at Qty Order
Electro Enterprises Inc 234
TTI Inc Global Headquarters 210
Newark 43
Digi-Key Electronics 32
Mouser Electronics 27
Heilind Electronics 25
Microwave Components LLC 18
Newark 4
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Plug (Male)
Orientation (Body) Straight
Number of Ports Single
Coupling Threaded
Frequency 11 GHz
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Plug (Male)
Orientation (Body) Straight
Number of Ports Single
Coupling Threaded
Frequency 11 GHz
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

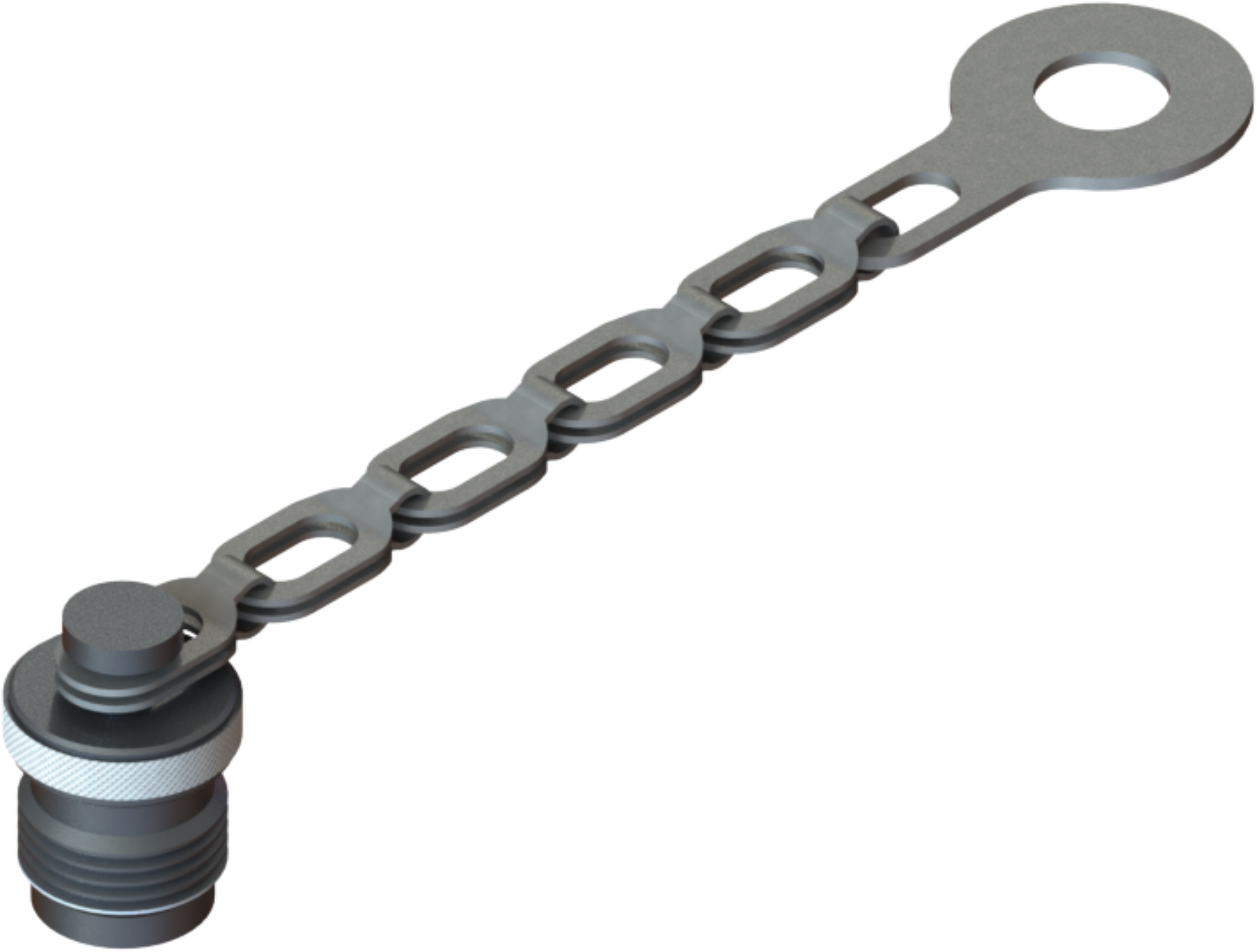

Part #   M39012/25-0019

TNC Female Dust Cap, Safety Chain

Available Inventory: 20
M39012/25-0019
TNC Components M39012/25-0019
Datasheet

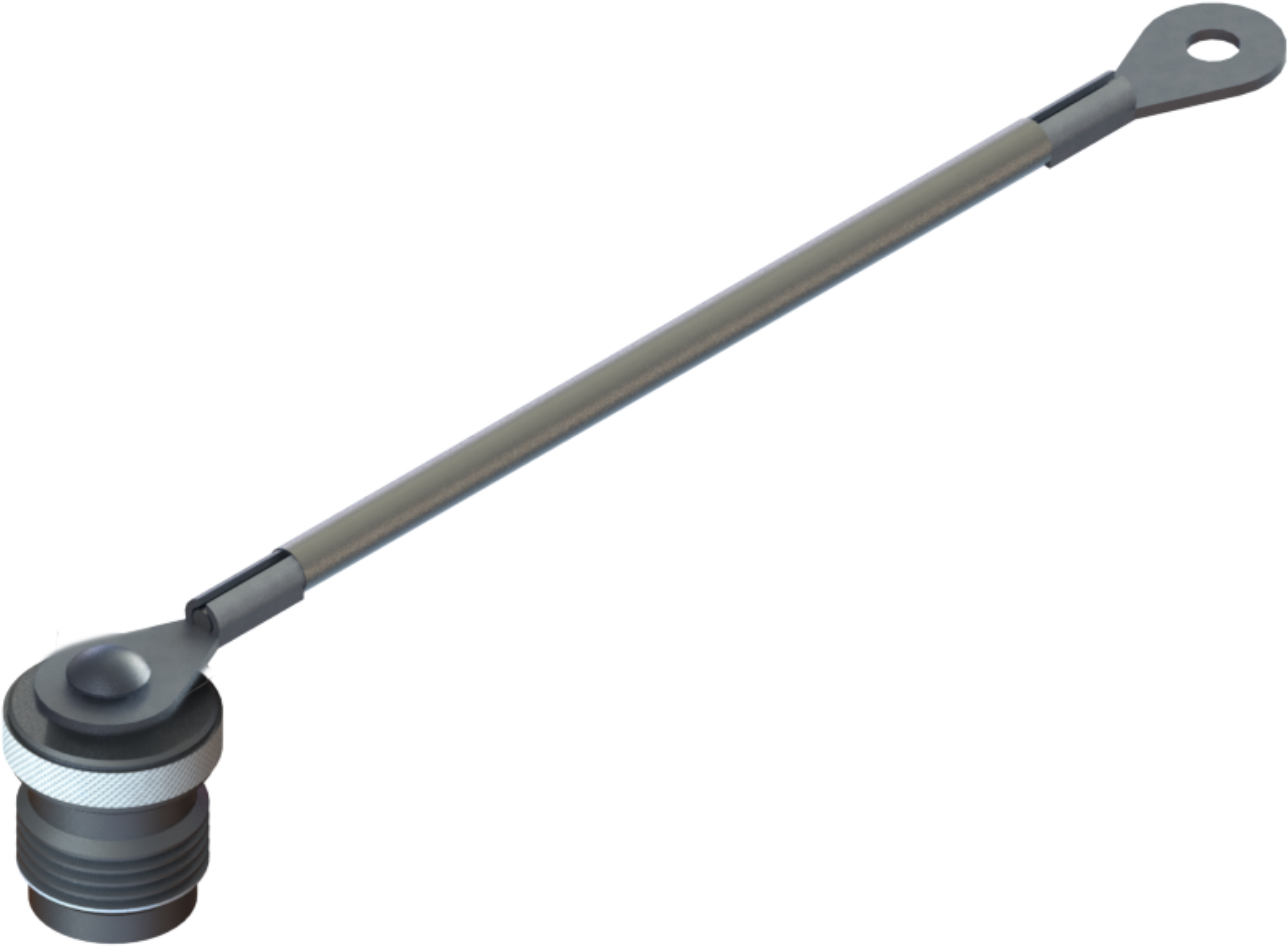

Part #   M39012/25-0118
