P/N: 3321-60065

1.85mm Female PCB Edge Launch Connector, 4 Legs

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Finish Gold
Frequency 67 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Finish Gold
Frequency 67 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3321-00004

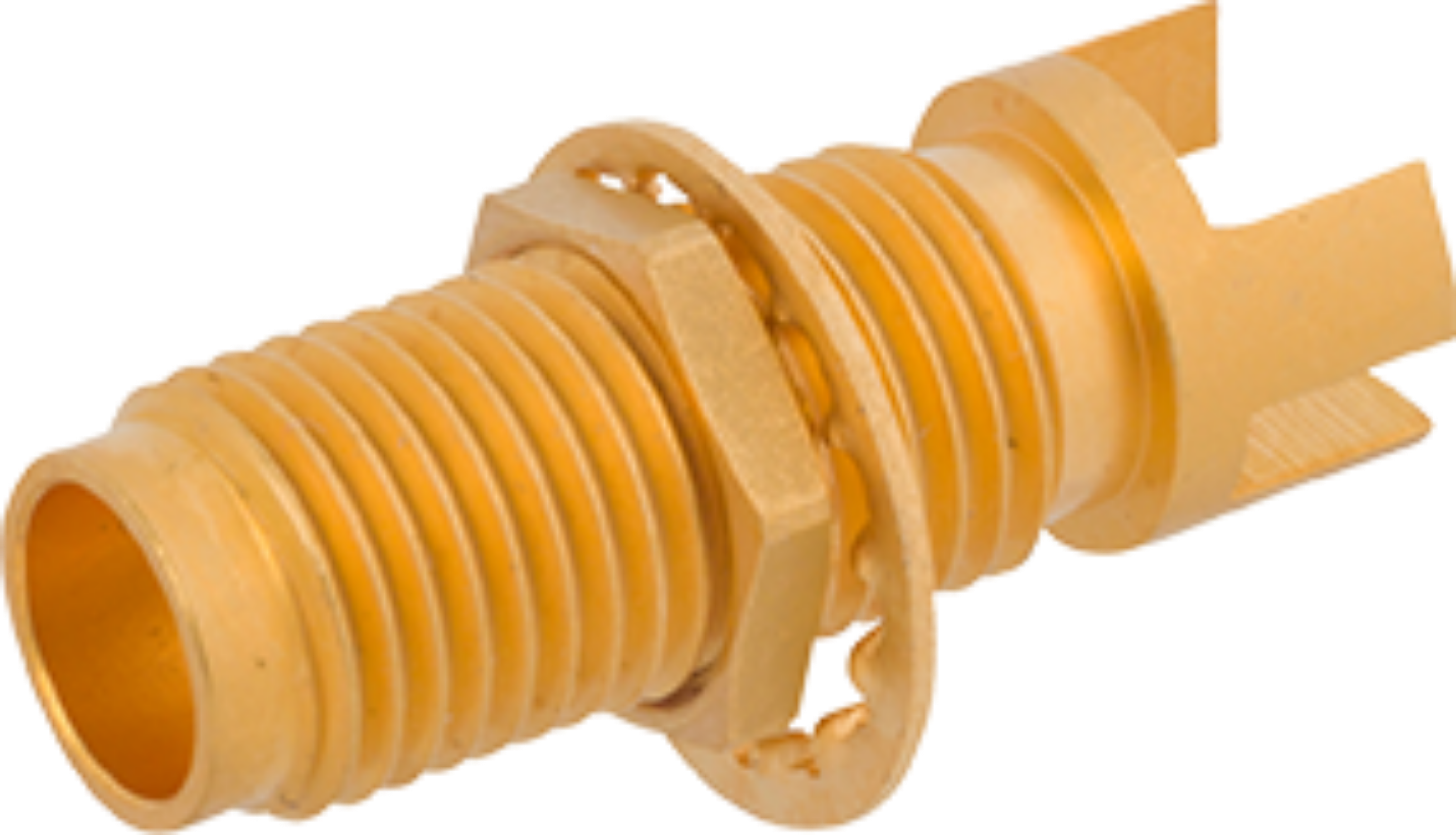

1.85mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 0
3321-00004
1.85mm Connectors 3321-00004
Datasheet
Part #   3321-00003

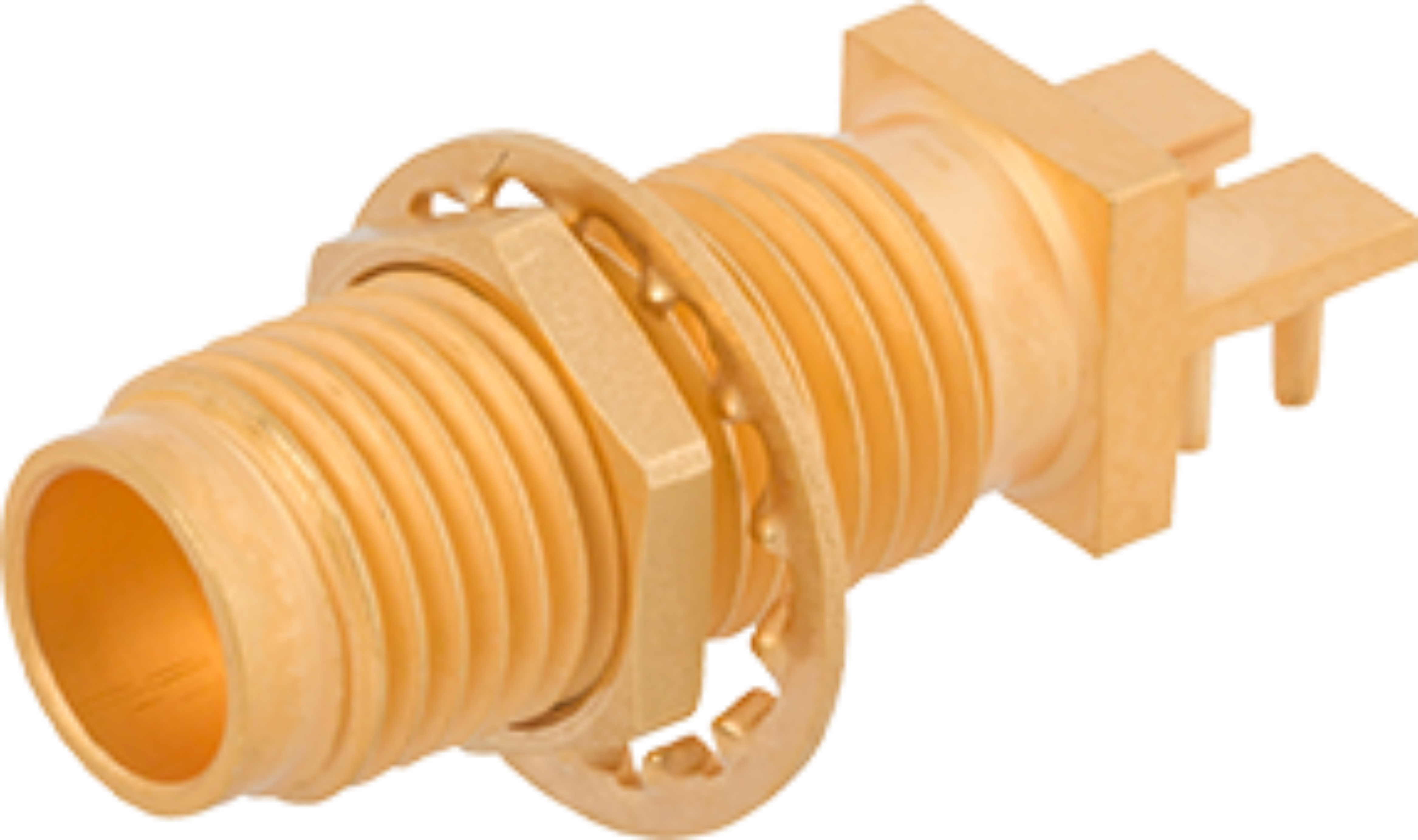

1.85mm Female Bulkhead PCB Edge Launch Connector, 4 Legs

Available Inventory: 0
3321-00003
1.85mm Connectors 3321-00003
Datasheet
Part #   3321-60001

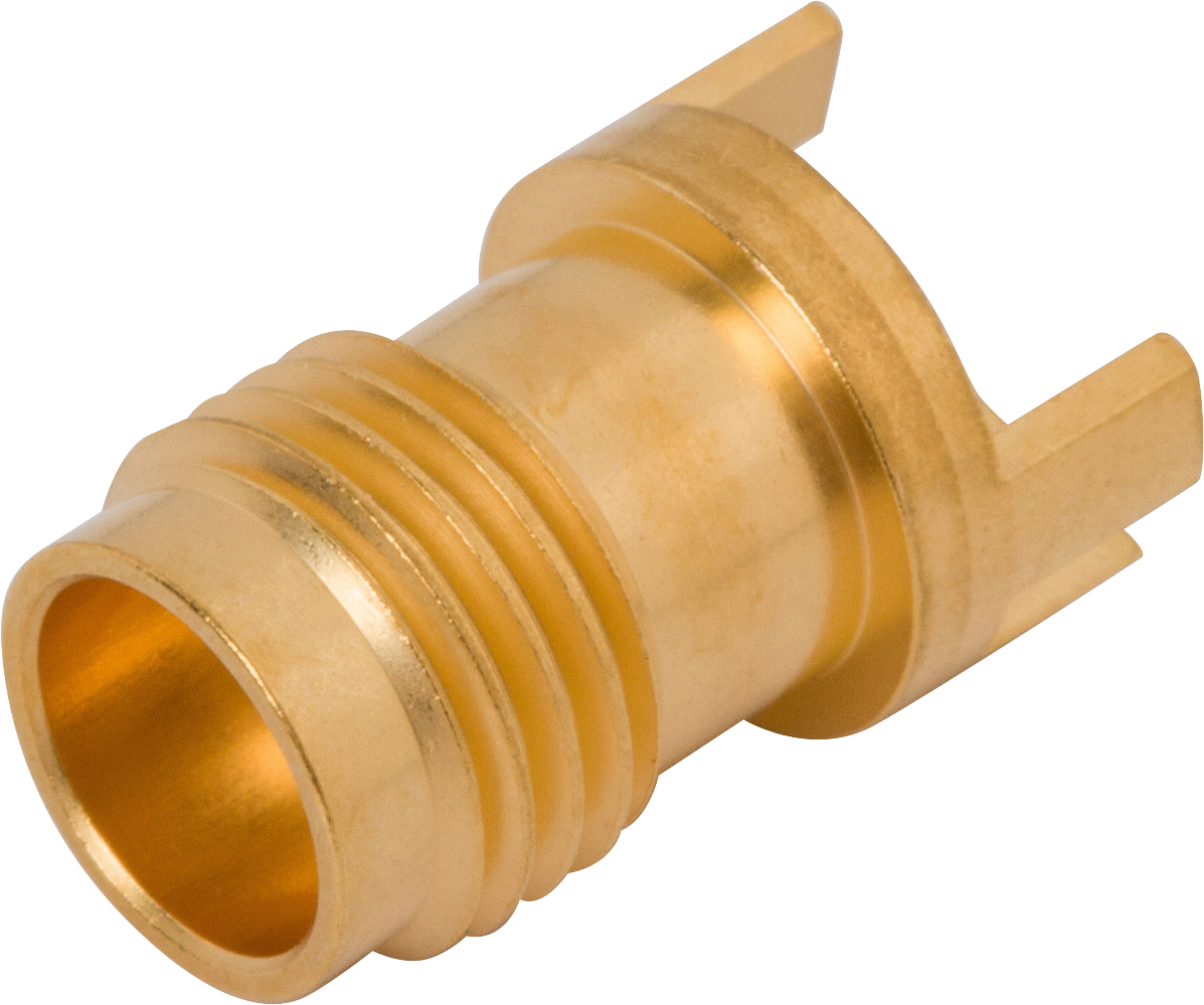

1.85mm Female PCB Edge Launch Connector, .062" PCB Thickness"
