P/N: 1521-00009

2.92mm Female Bulkhead PCB Edge Launch Connector, 4 Leg

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Orientation (Body) Straight
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Orientation (Body) Straight
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   2921-00057

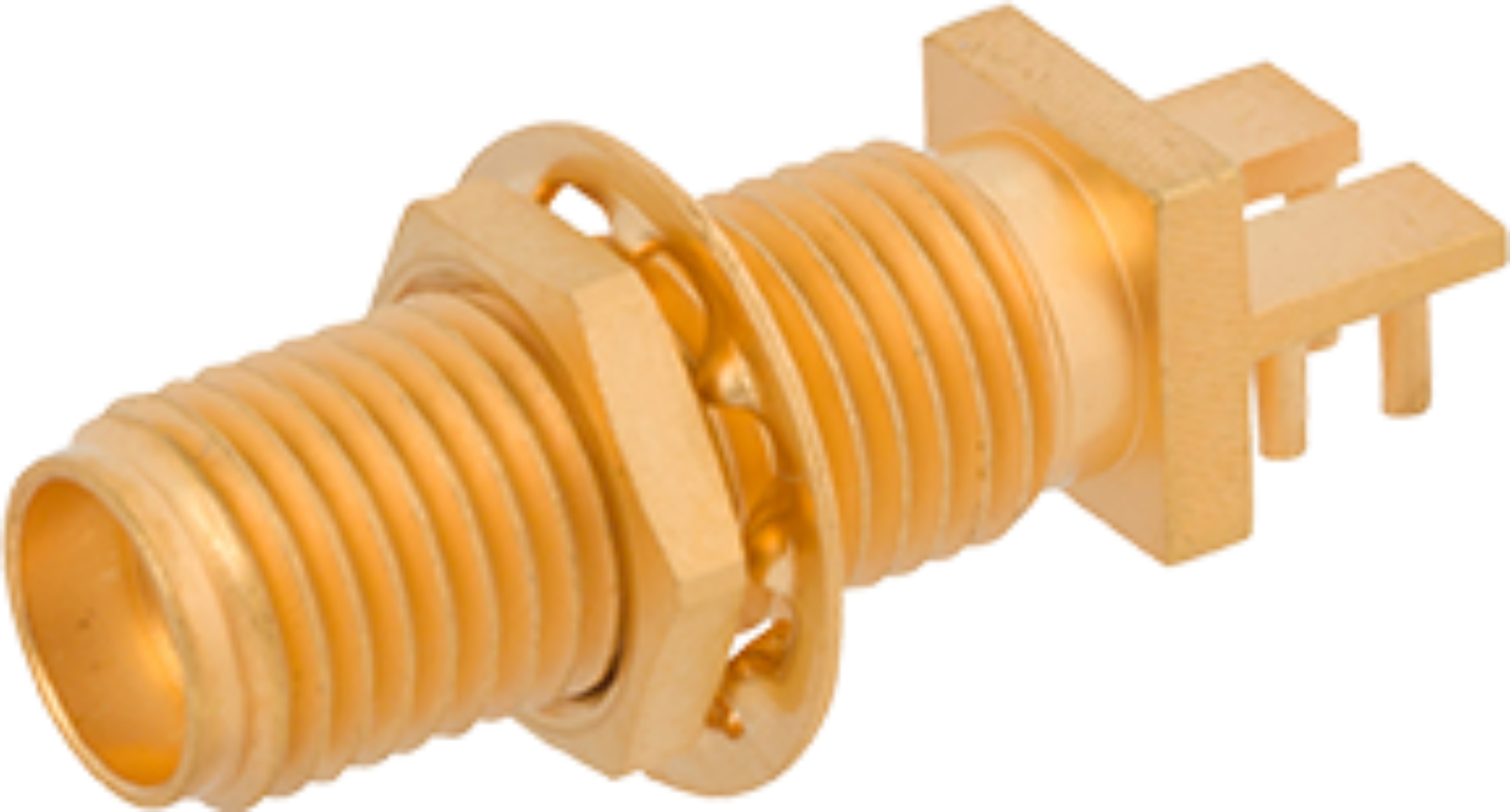

SMA Female Bulkhead PCB Edge Launch Connector, 4 Legs

Available Inventory: 0
2921-00057
SMA Connectors 2921-00057
Datasheet
Part #   1521-00010

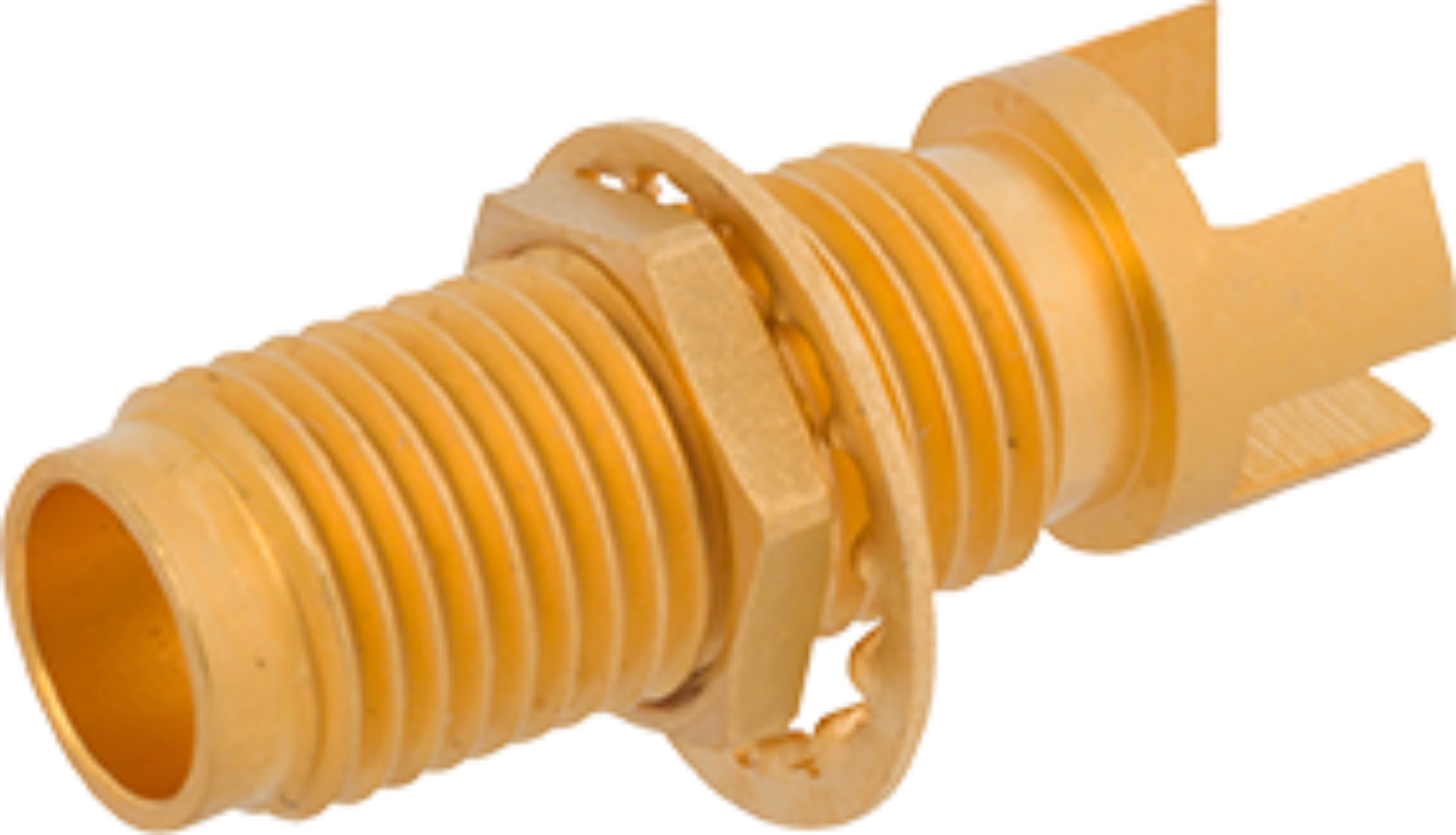

2.92mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness
