P/N: SF1621-60026

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 604
Mouser Electronics 100
TTI Inc Global Headquarters 72
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 50 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 50 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1621-60029

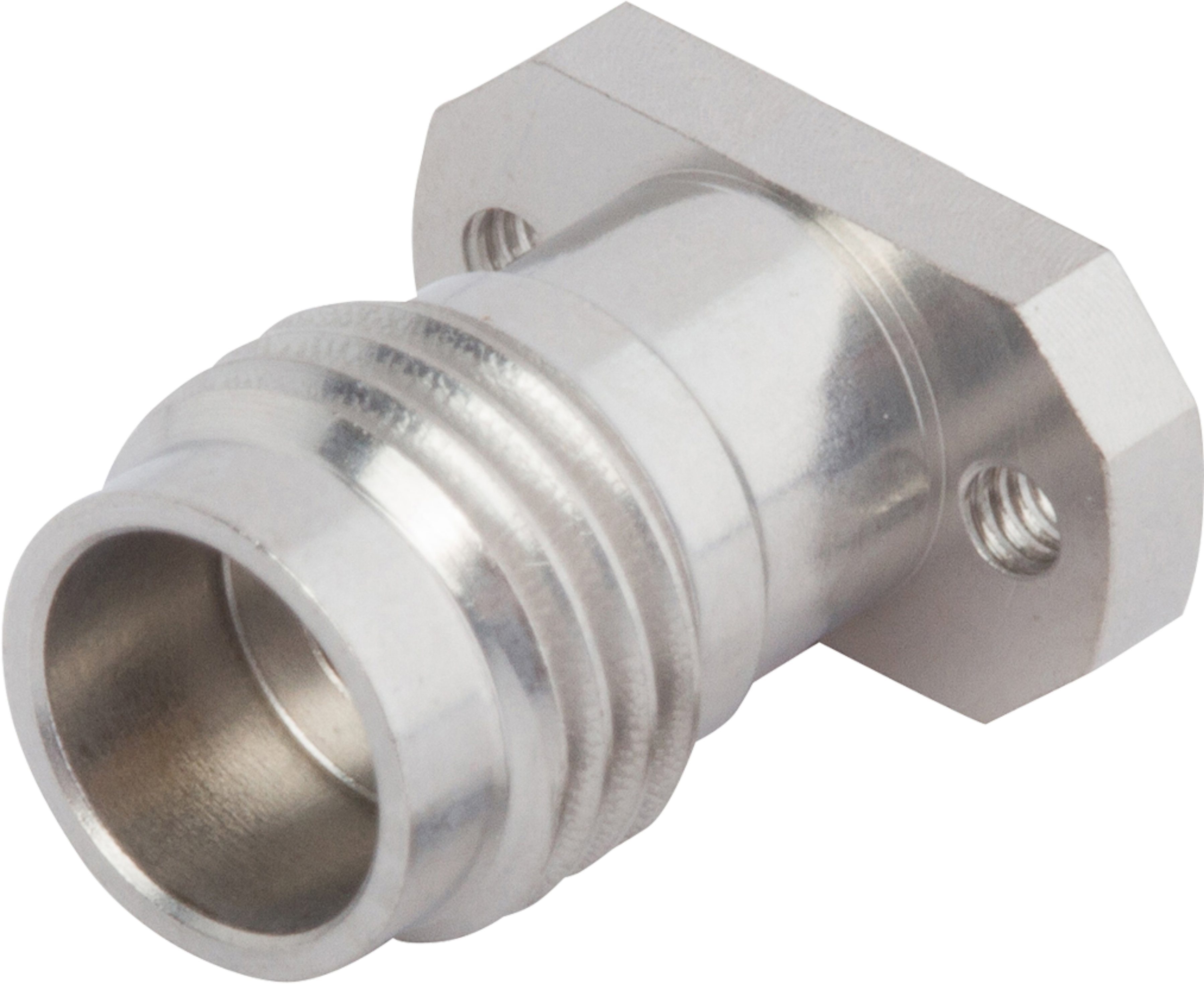

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)

Available Inventory: 1485
SF1621-60029
2.4mm Connectors SF1621-60029
Datasheet
SF1621-60026-1S
2.4mm Connectors SF1621-60026-1S
Datasheet

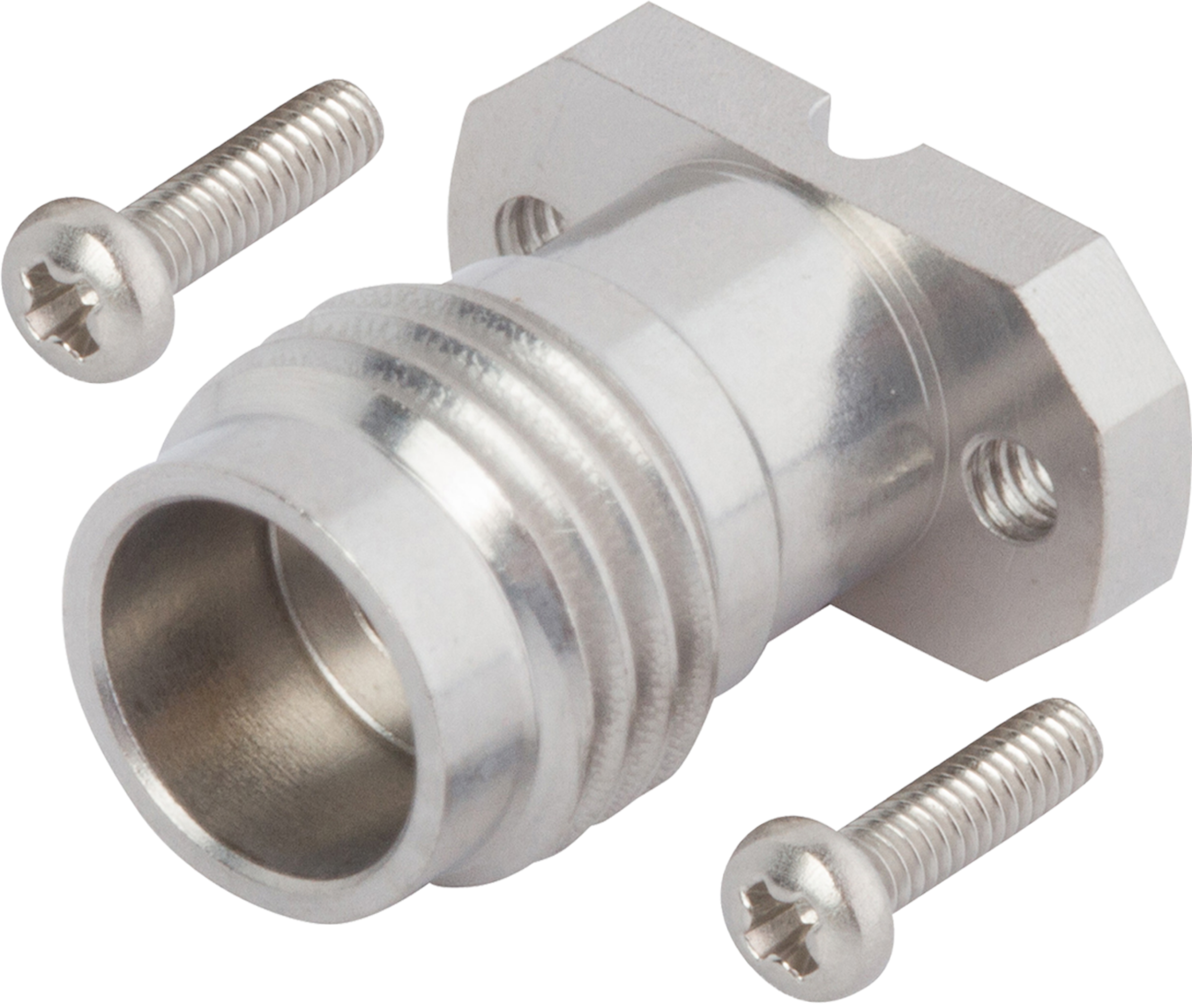

SF1621-60026-2S
