P/N: SF8806-6006

BZ Male Connector, Spring Loaded, for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Plug (Male)
Orientation (Body) Straight
Frequency 3 GHz
Coupling Push-on
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.25 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BZ
Gender Plug (Male)
Orientation (Body) Straight
Frequency 3 GHz
Coupling Push-on
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.25 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1122-6101

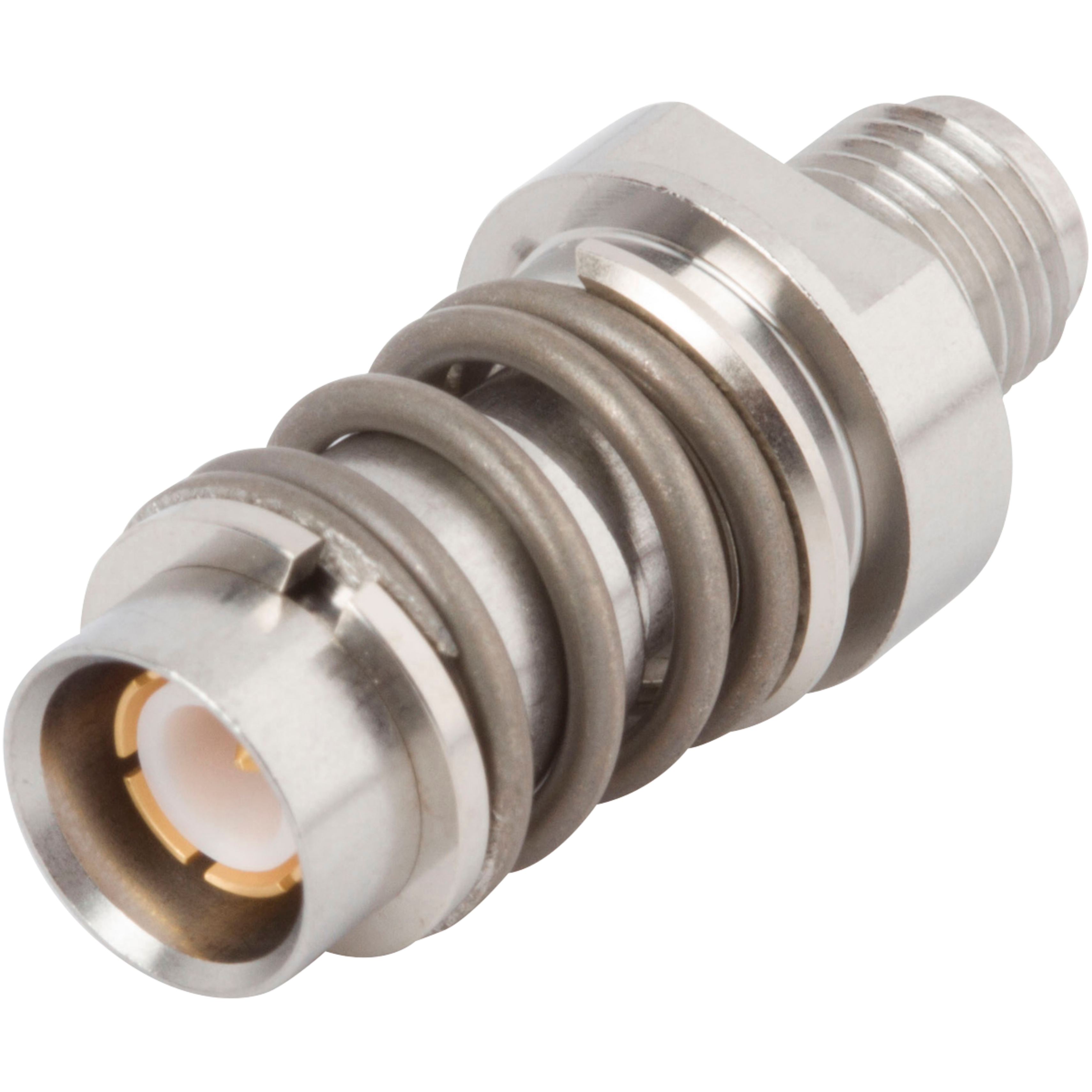

BZ Male to SMA Female Adapter, Spring Loaded

Available Inventory: 22
SF1122-6101
BZ Adapters SF1122-6101
Datasheet
Part #   SF1122-6102

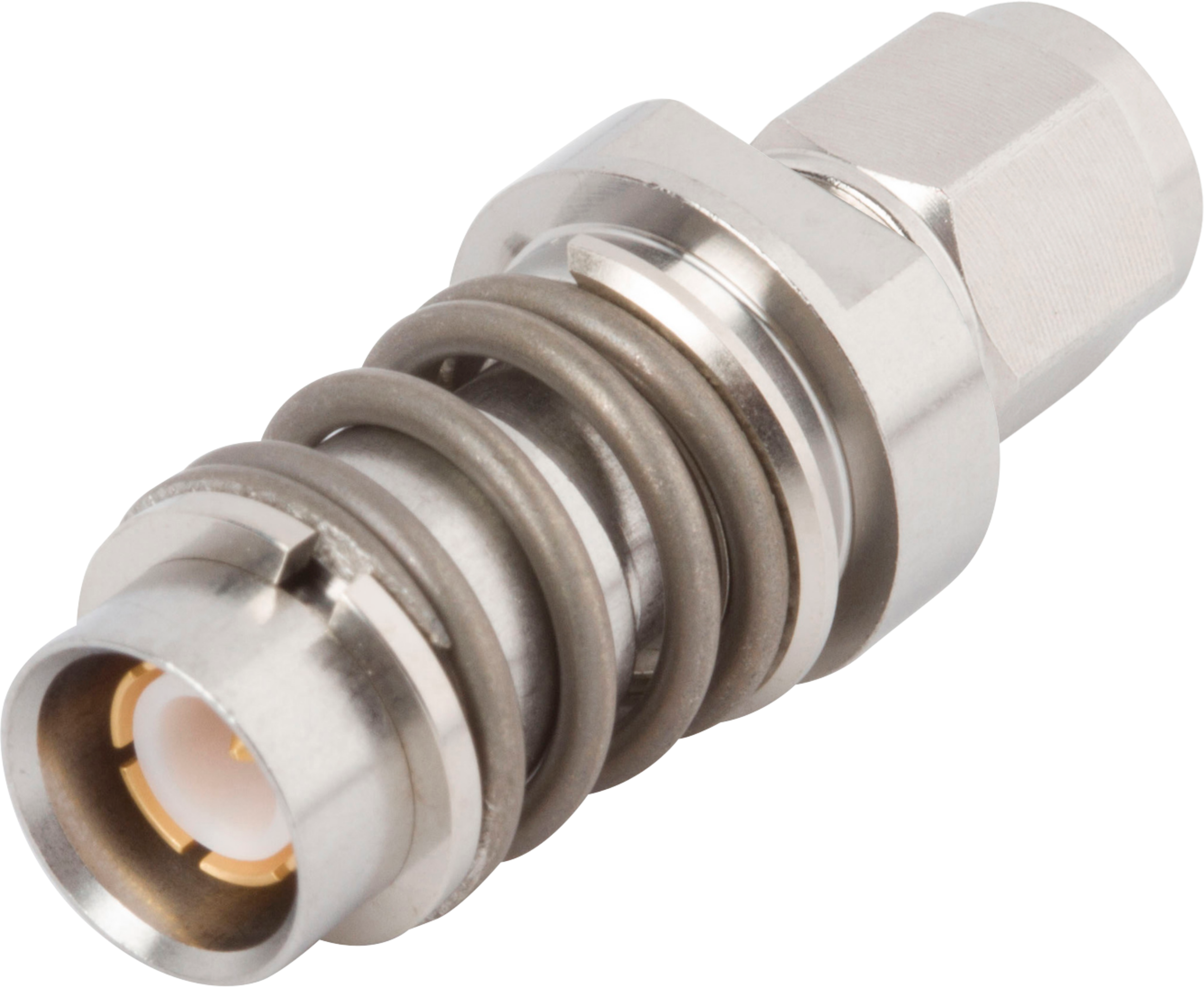

BZ Male to SMA Male Adapter, Spring Loaded

Available Inventory: 0
SF1122-6102
BZ Adapters SF1122-6102
Datasheet
Part #   SF8802-6007

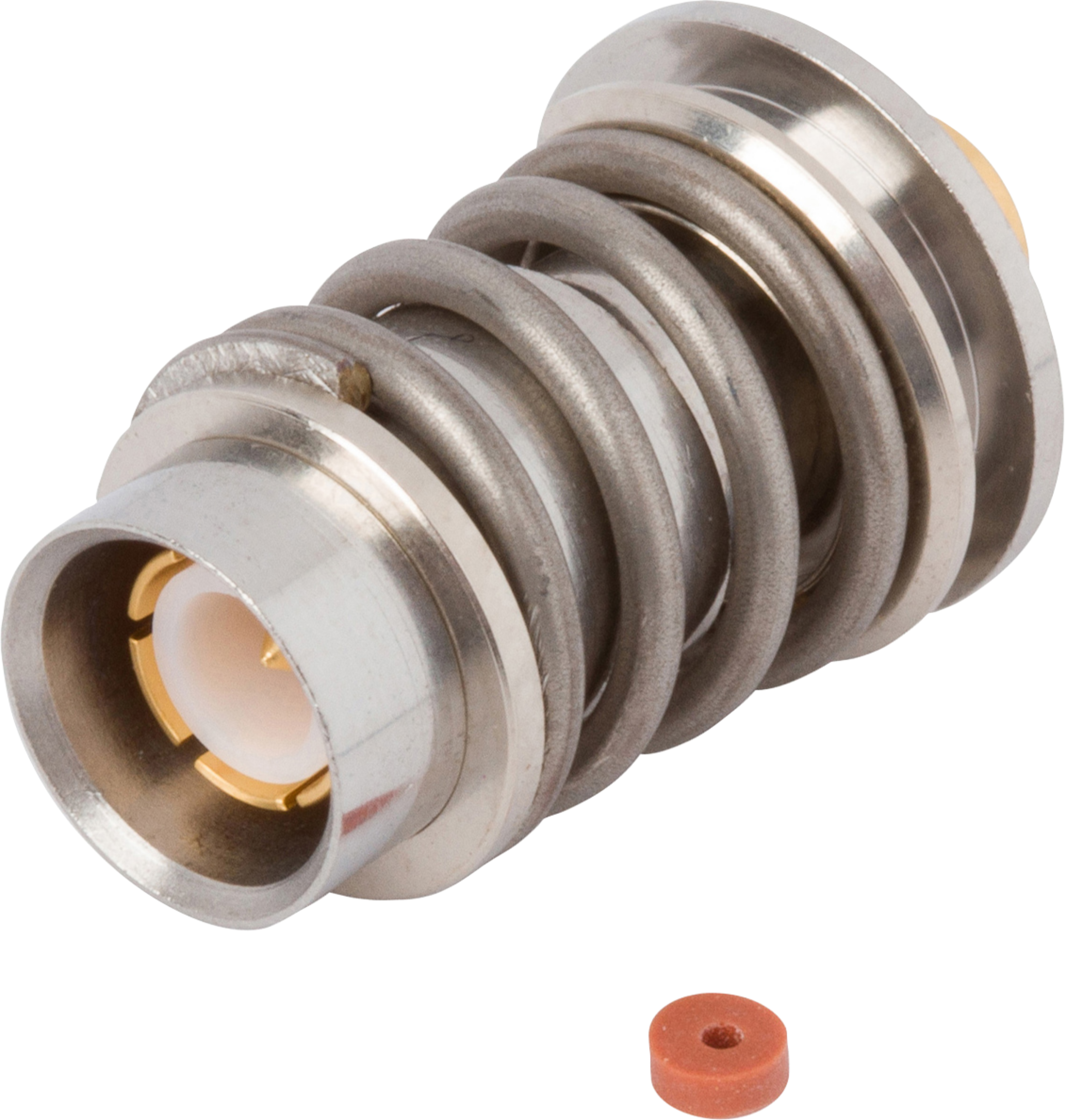

BZ Male Connector, Spring Loaded, for .141 Cable
