P/N: 7032-7161

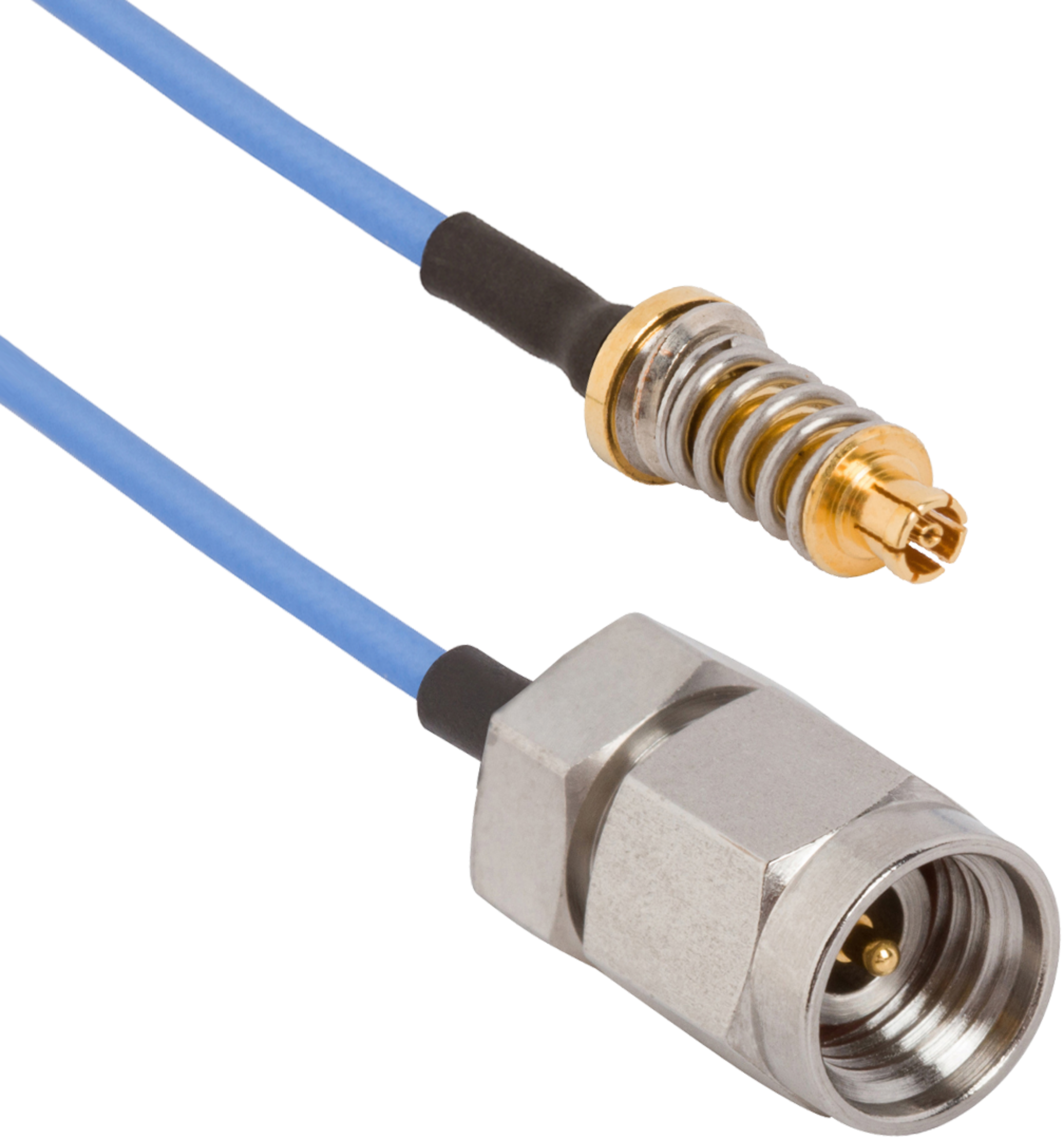

SMPM Female VITA 67.1/67.2 to 2.92mm Male 24" Cable Assembly for .047 Cable"

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Termination Style Solder
Coupling Push-on
Frequency 40 GHz
Gender Jack (Female)
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 24"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 40 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Termination Style Solder
Coupling Push-on
Frequency 40 GHz
Gender Jack (Female)
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 24"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Frequency GHz 40 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
