P/N: 7032-7164

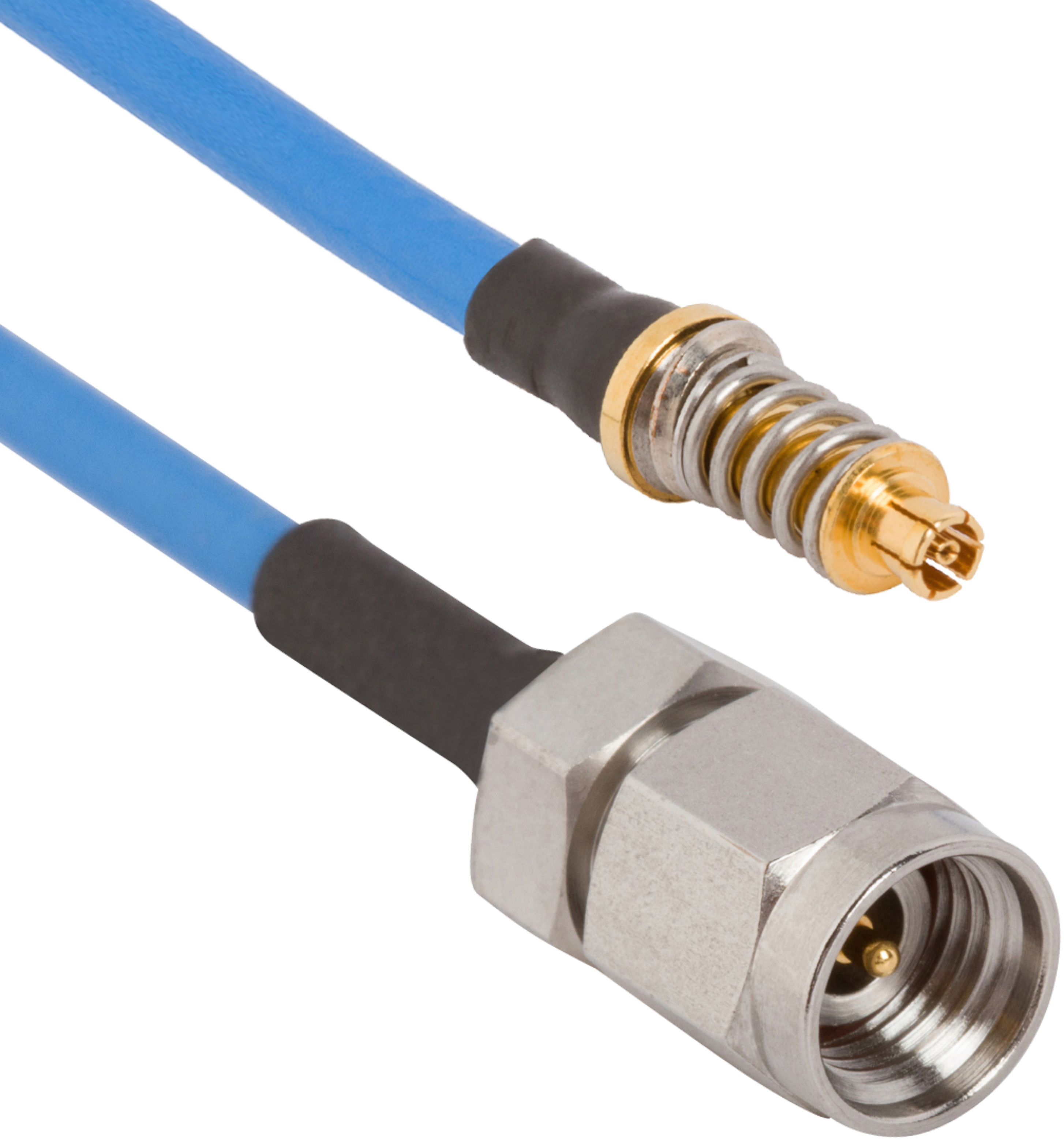

SMPM Female VITA 67.1/67.2 to 2.92mm Male 24" Cable Assembly for .085 Cable"

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Family VITA 67
Gender Jack (Female)
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Cable Length 24"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mating Cycles 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
Gender Jack (Female)
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 2.92 mm
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Cable Length 24"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mating Cycles 500
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
