P/N: SF1132-6036

SMPM VITA 67.2 Backplane Module

In stock at Qty Order
Mouser Electronics 32
Digi-Key Electronics 20
TTI Inc Global Headquarters 19
Products specifications
Attribute name Attribute value
Family VITA 67
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Frequency 26.5 GHz
Mounting Type Snap-in
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
Orientation (Body) Straight
RF Series VITA SMPM
Coupling Push-on
Frequency 26.5 GHz
Mounting Type Snap-in
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1132-6037

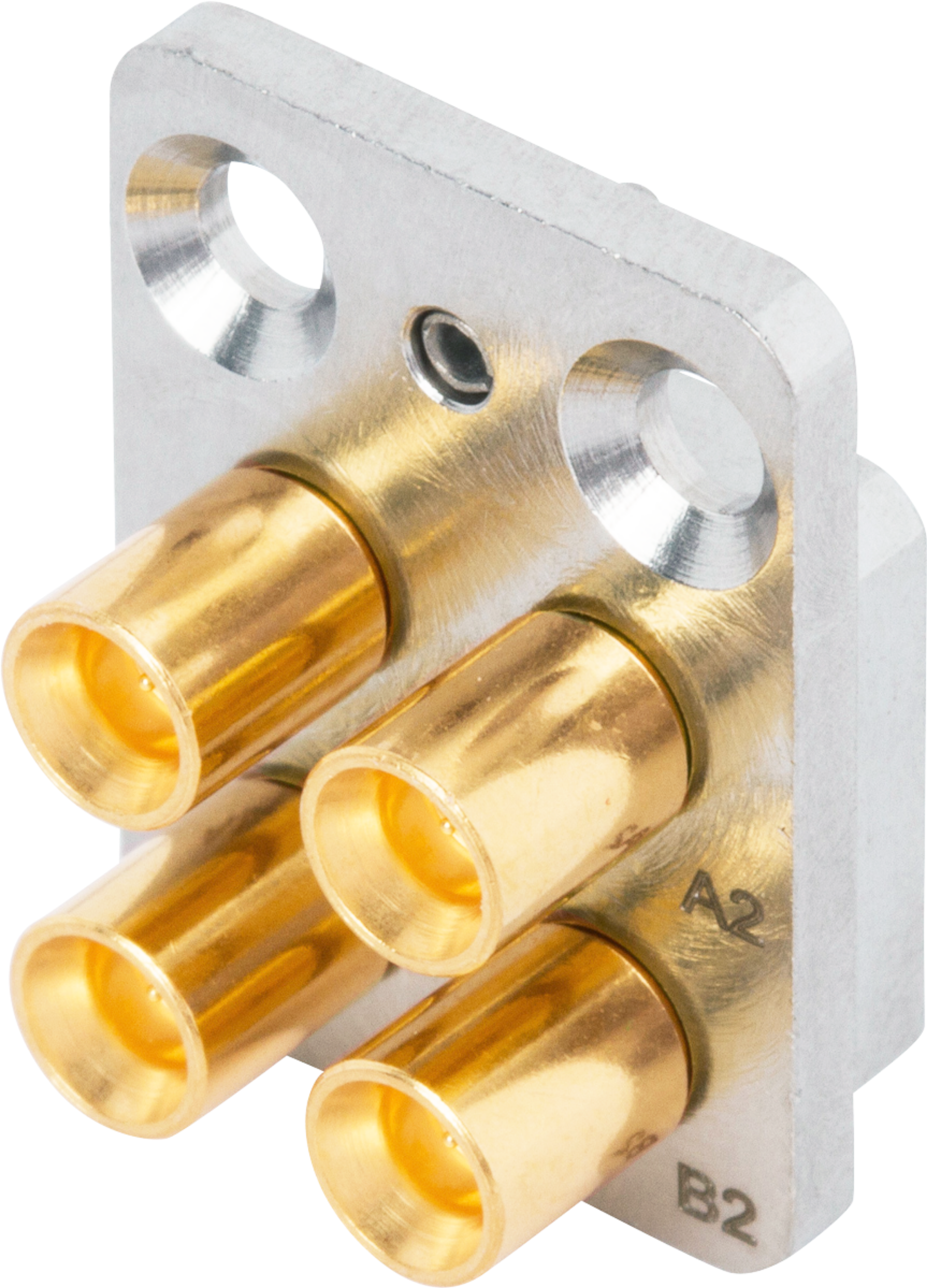

SMPM VITA 67.1 Backplane Module

Available Inventory: 370
SF1132-6037
VITA Connectors SF1132-6037
Datasheet
Part #   SF9321-60013

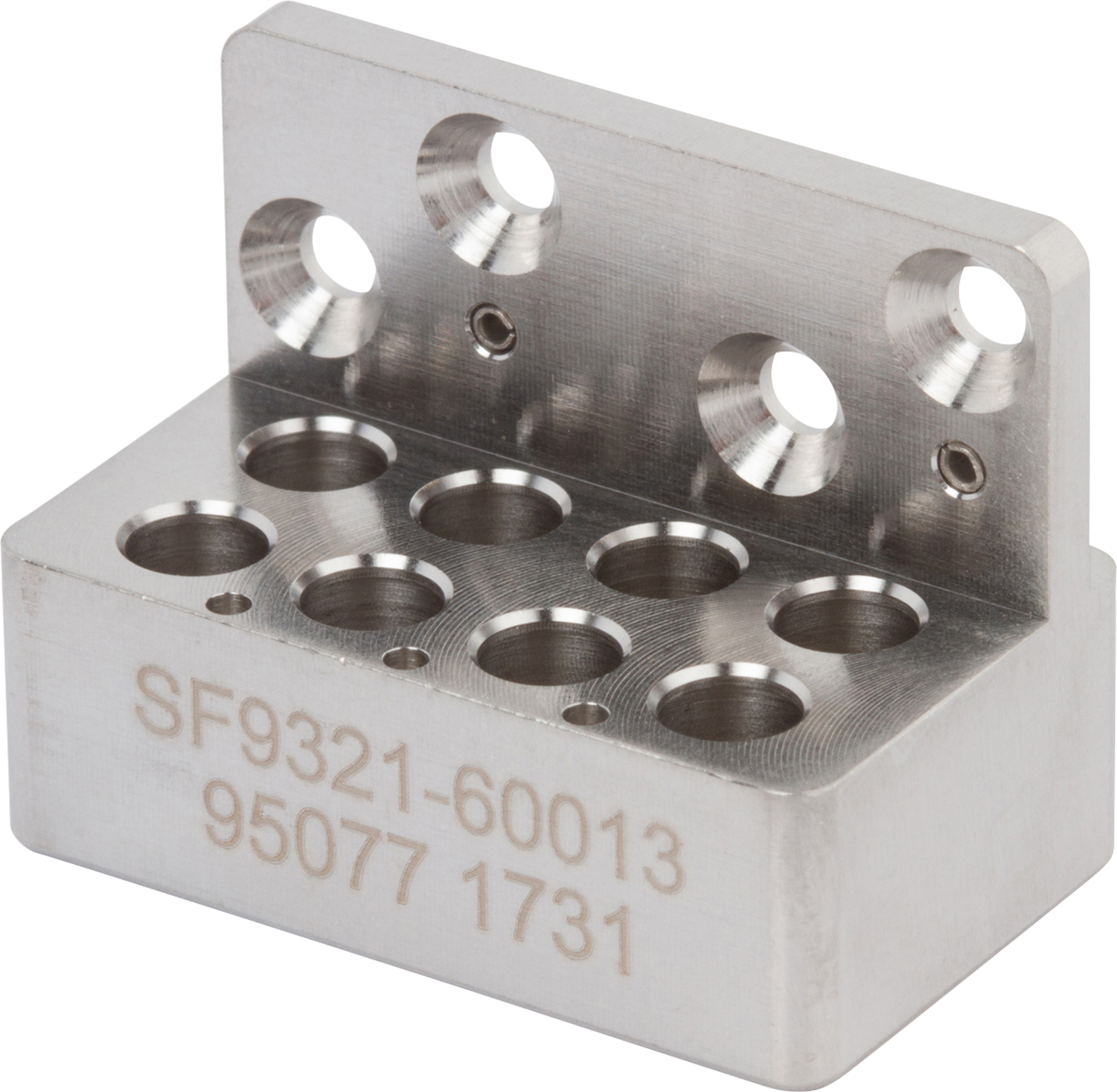

SMPM VITA 67.2 Plug-in Module

Available Inventory: 371
SF9321-60013
VITA Connectors SF9321-60013
Datasheet
Part #   SF9321-60015

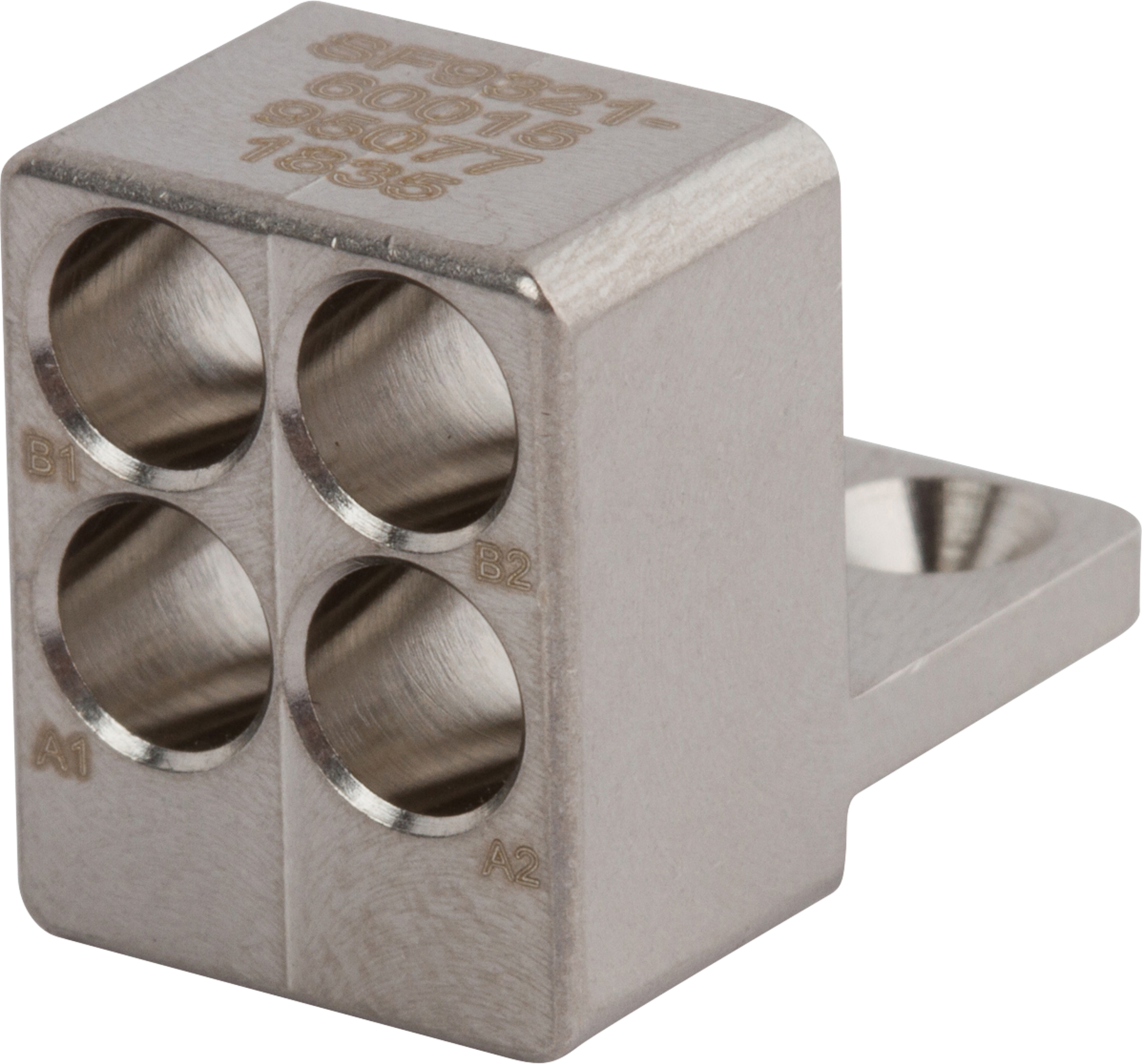

SMPM VITA 67.1 Plug-in Module
