Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67 |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Finish | Passivated |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 325 VRMS |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Insertion Force | 2.5 lbs (per contact) |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| EU RoHS Directive 2011/65/EU | Compliant These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds. |
| EU REACH Regulation (EC) No. 1907/2006 | Does not contain REACH SVHC These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:27:54 AM | |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | VITA 67 |
| RF Series | VITA SMPM |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Mounting Type | Snap-in |
| Finish | Passivated |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 325 VRMS |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Mechanical | |
| Withdrawal Force | 1.5 lbs |
| Insertion Force | 2.5 lbs (per contact) |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
Related products
3221-40019
VITA Connectors 3221-40019
3221-40022
VITA Connectors 3221-40022
Part # 7032-6728-120
SMPM Female VITA 67.1/67.2 to SMA Male 12" Cable Assembly for .047 Cable
Available Inventory: 166
7032-6728-120
VITA Cable Assemblies 7032-6728-120
Part # 7032-6729-120
SMPM Female VITA 67.1/67.2 to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 36
7032-6729-120
VITA Cable Assemblies 7032-6729-120
Part # 7032-6728-060
SMPM Female VITA 67.1/67.2 to SMA Male 6" Cable Assembly for .047 Cable
Available Inventory: 29
7032-6728-060
VITA Cable Assemblies 7032-6728-060
Part # 7032-6729-060
SMPM Female VITA 67.1/67.2 to SMA Male 6" Cable Assembly for .085 Cable
Available Inventory: 152
7032-6729-060
VITA Cable Assemblies 7032-6729-060
Part # 7032-7160
SMPM Female VITA 67.1/67.2 to 2.92mm Male 12" Cable Assembly for .047 Cable
Available Inventory: 4
7032-7160
VITA Cable Assemblies 7032-7160
Part # 7032-7163
SMPM Female VITA 67.1/67.2 to 2.92mm Male 12" Cable Assembly for .085 Cable
Available Inventory: 25
7032-7163
VITA Cable Assemblies 7032-7163
Part # 7032-7161
SMPM Female VITA 67.1/67.2 to 2.92mm Male 24" Cable Assembly for .047 Cable
Available Inventory: 10
7032-7161
VITA Cable Assemblies 7032-7161
Part # 7032-7164
SMPM Female VITA 67.1/67.2 to 2.92mm Male 24" Cable Assembly for .085 Cable
Available Inventory: 25
7032-7164
VITA Cable Assemblies 7032-7164
Part # 7032-7159
SMPM Female VITA 67.1/67.2 to 2.92mm Male 6" Cable Assembly for .047 Cable
Available Inventory: 30
7032-7159
VITA Cable Assemblies 7032-7159
Part # 7032-7162
SMPM Female VITA 67.1/67.2 to 2.92mm Male 6" Cable Assembly for .085 Cable
Available Inventory: 10
7032-7162
VITA Cable Assemblies 7032-7162
Customers Also Viewed
500-32-022
VITA Tool 500-32-022
7012-1324
SMP Cable Assemblies 7012-1324

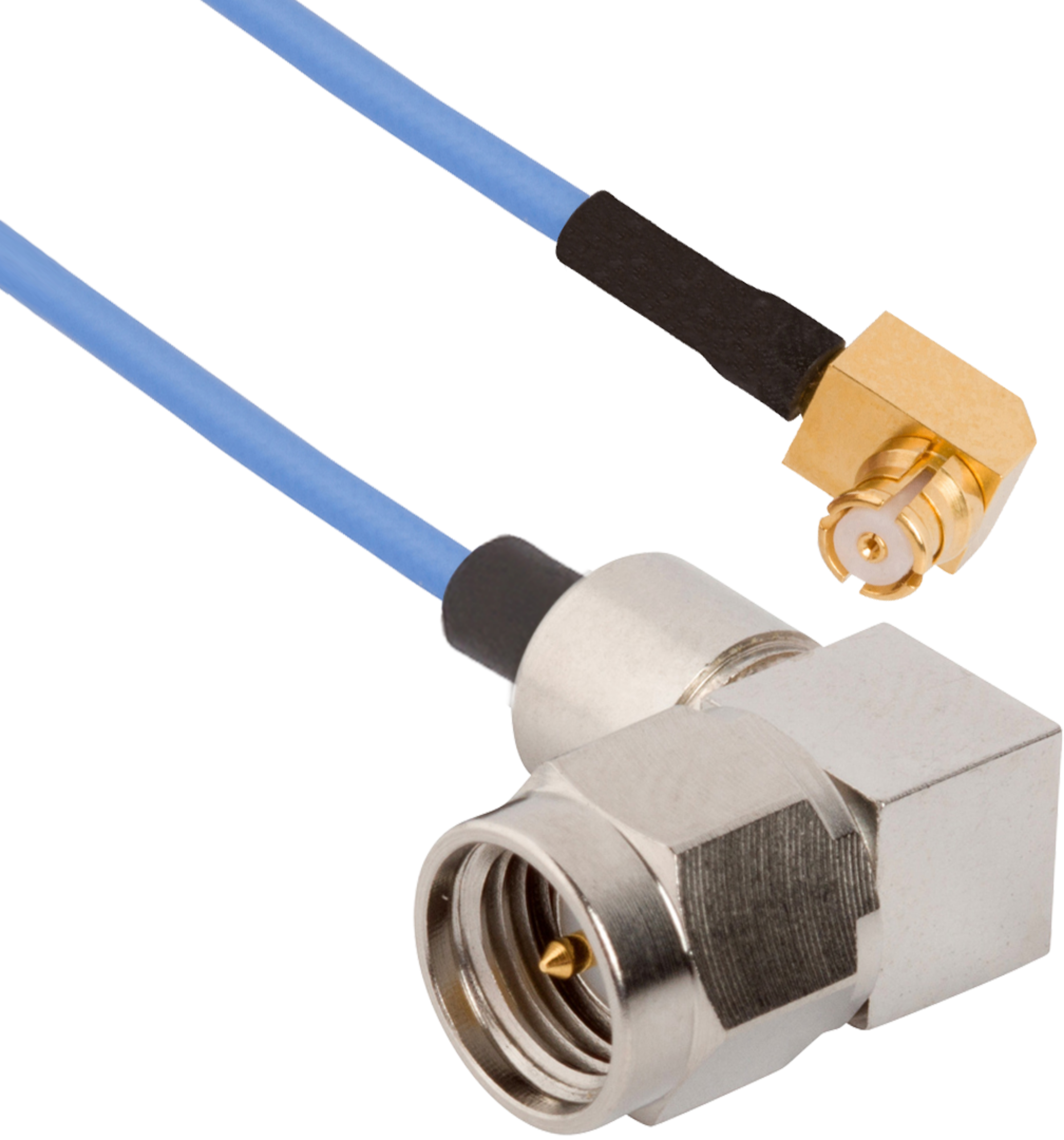

Part # 7012-1331
