P/N: 3221-40022

SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable

In stock at Qty Order
Digi-Key Electronics 499
Mouser Electronics 100
Newark 10
Microwave Components LLC 10
Heilind Electronics 4
Arrow Electronics Inc 4
TTI Inc Global Headquarters 1
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Gold
Cable Builder Attributes
Cable Builder Left Image 25853
Cable Builder Right Image 25854
Mating Connector SF9321-60013, SF9321-60015
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 325 VRMS
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Termination Style Solder
Mounting Type Snap-in
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Gold
Cable Builder Attributes
Cable Builder Left Image 25853
Cable Builder Right Image 25854
Mating Connector SF9321-60013, SF9321-60015
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 325 VRMS
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Mating Cycles 500
Mechanical
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   3221-40019

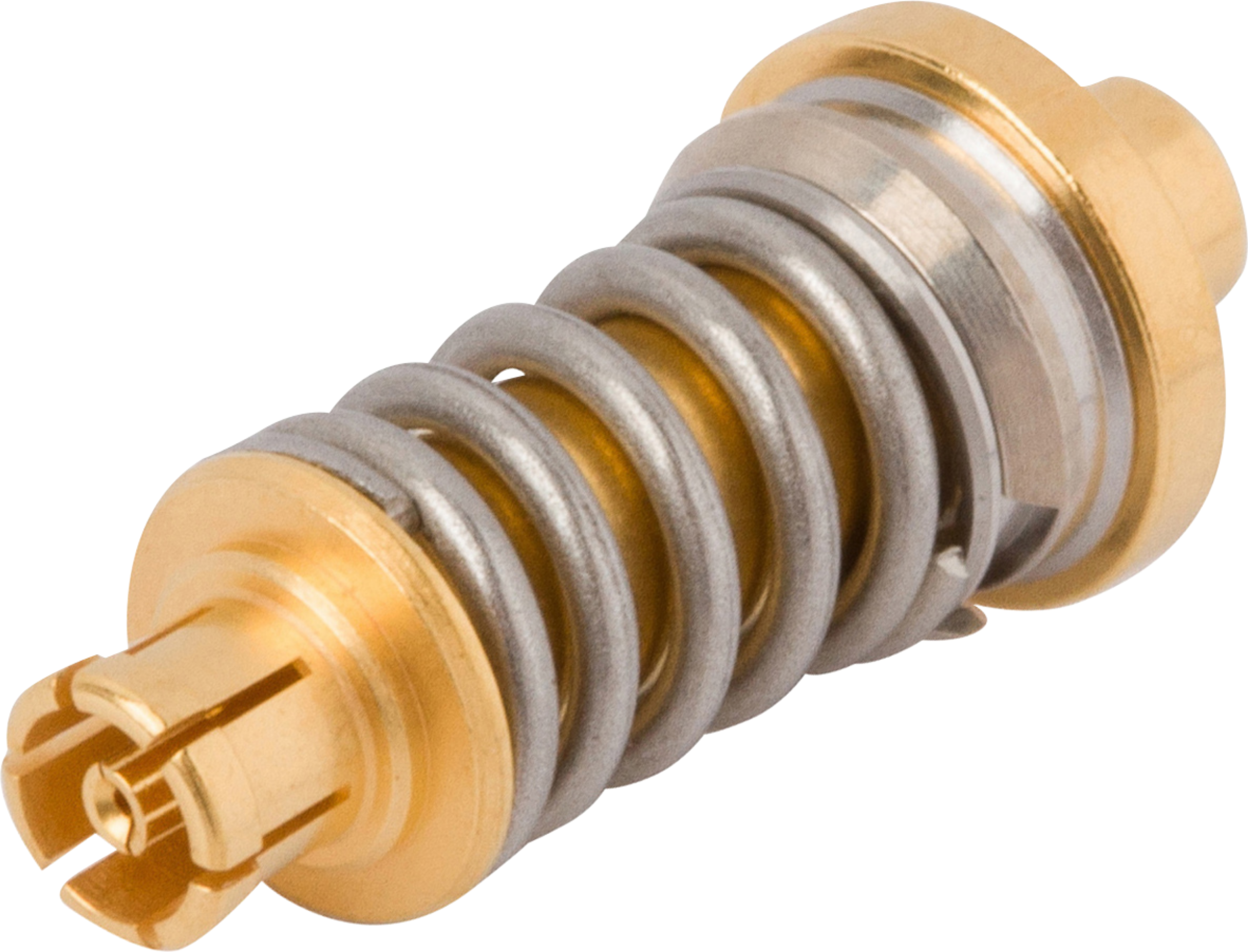

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable

Available Inventory: 804
3221-40019
VITA Connectors 3221-40019
Datasheet
7032-7162

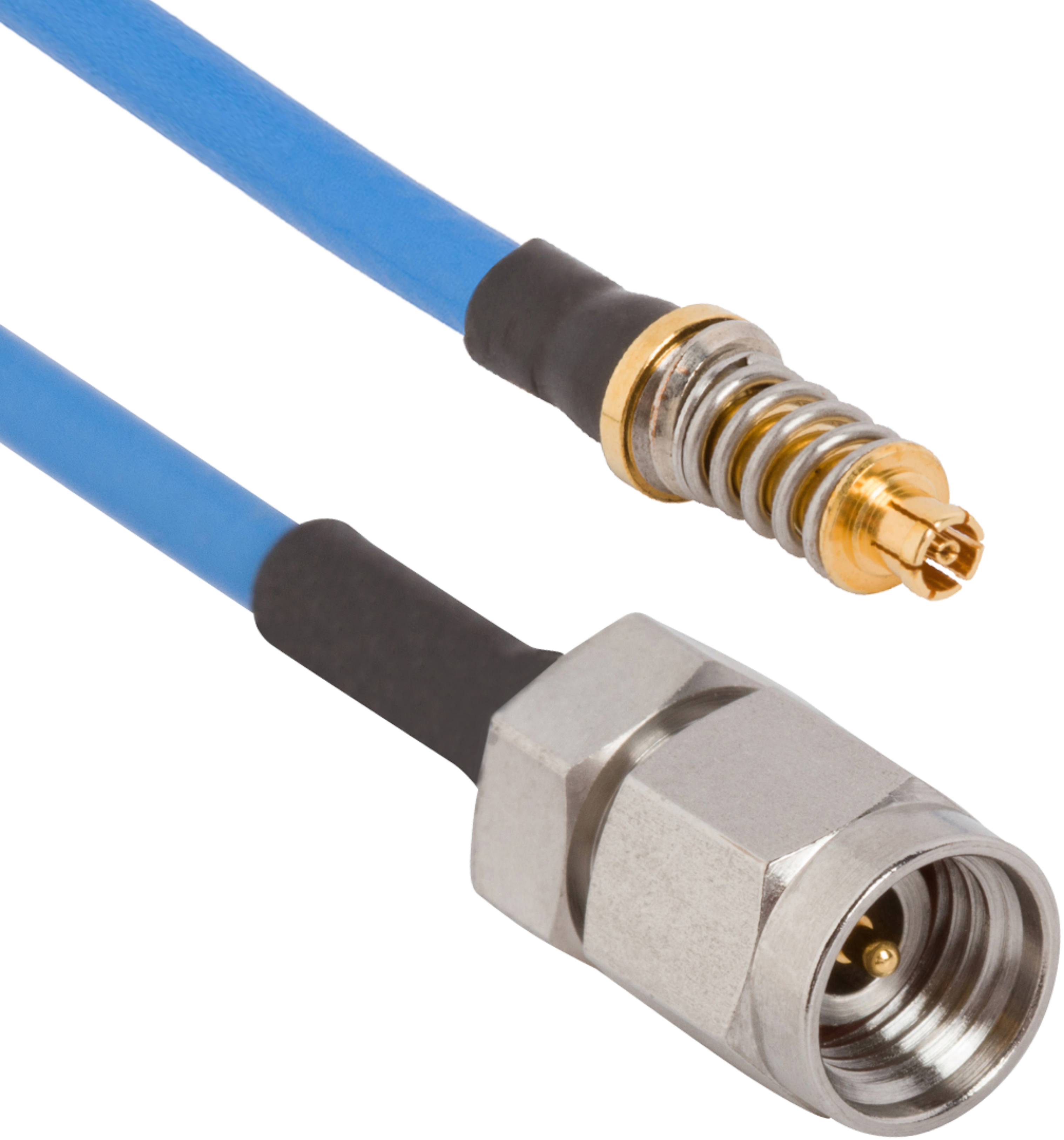

VITA Cable Assemblies 7032-7162
Datasheet
Part #   SF9321-60093

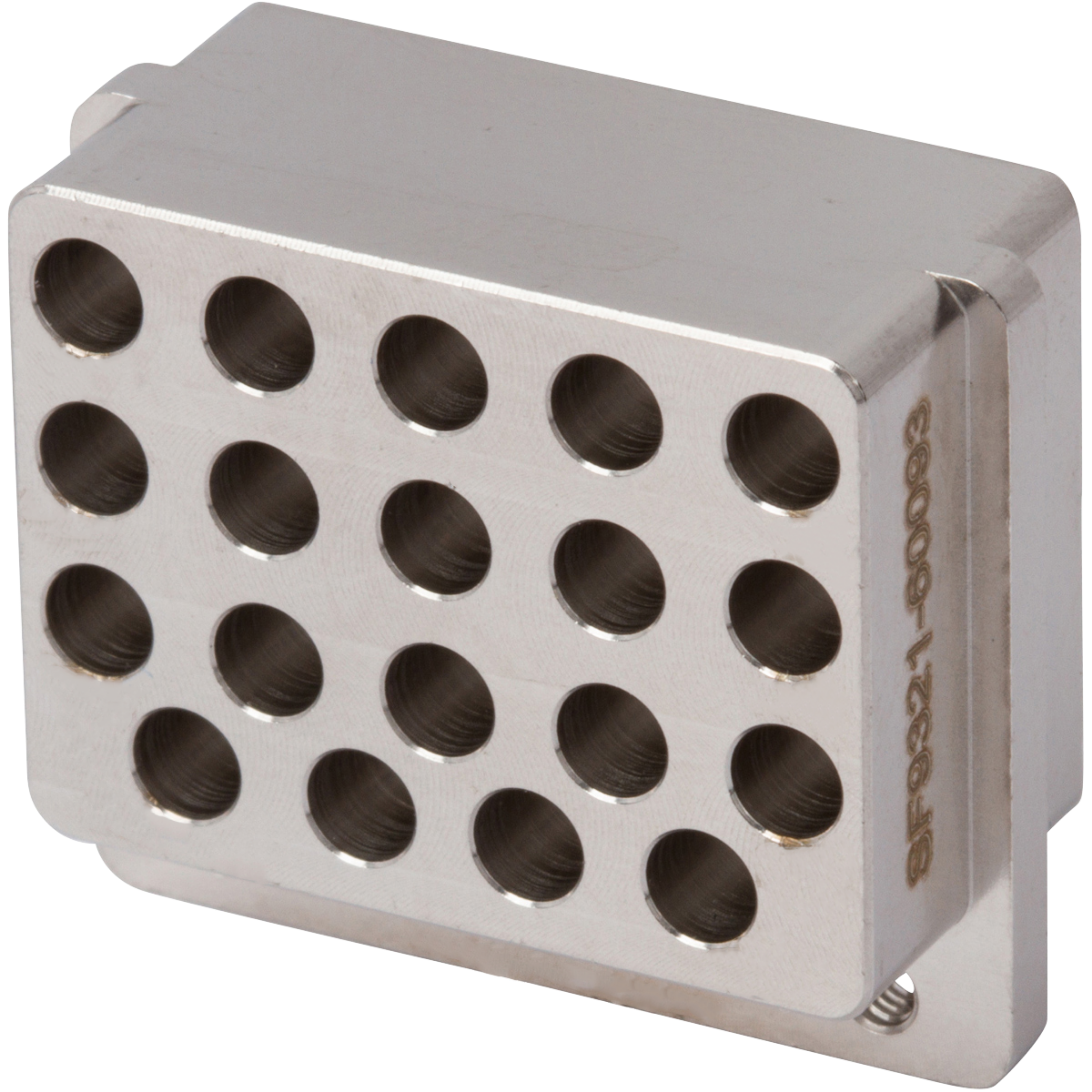

SMPS VITA 67.3 19 Port Backplane Module C
