P/N: 3221-40019

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable

In stock at Qty Order
A.E. Petsche Company 364
Microwave Components LLC 130
Mouser Electronics 100
Digi-Key Electronics 100
Heilind Electronics 10
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Coupling Push-on
Gender Jack (Female)
Family VITA 67
RF Series VITA SMPM
Number of Ports Single
Mounting Type Snap-in
Termination Style Solder
Frequency 40 GHz
Finish Gold
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25851
Cable Builder Right Image 25852
Mating Connector SF9321-60013, SF9321-60015
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Coupling Push-on
Gender Jack (Female)
Family VITA 67
RF Series VITA SMPM
Number of Ports Single
Mounting Type Snap-in
Termination Style Solder
Frequency 40 GHz
Finish Gold
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25851
Cable Builder Right Image 25852
Mating Connector SF9321-60013, SF9321-60015
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force 1.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3221-40022

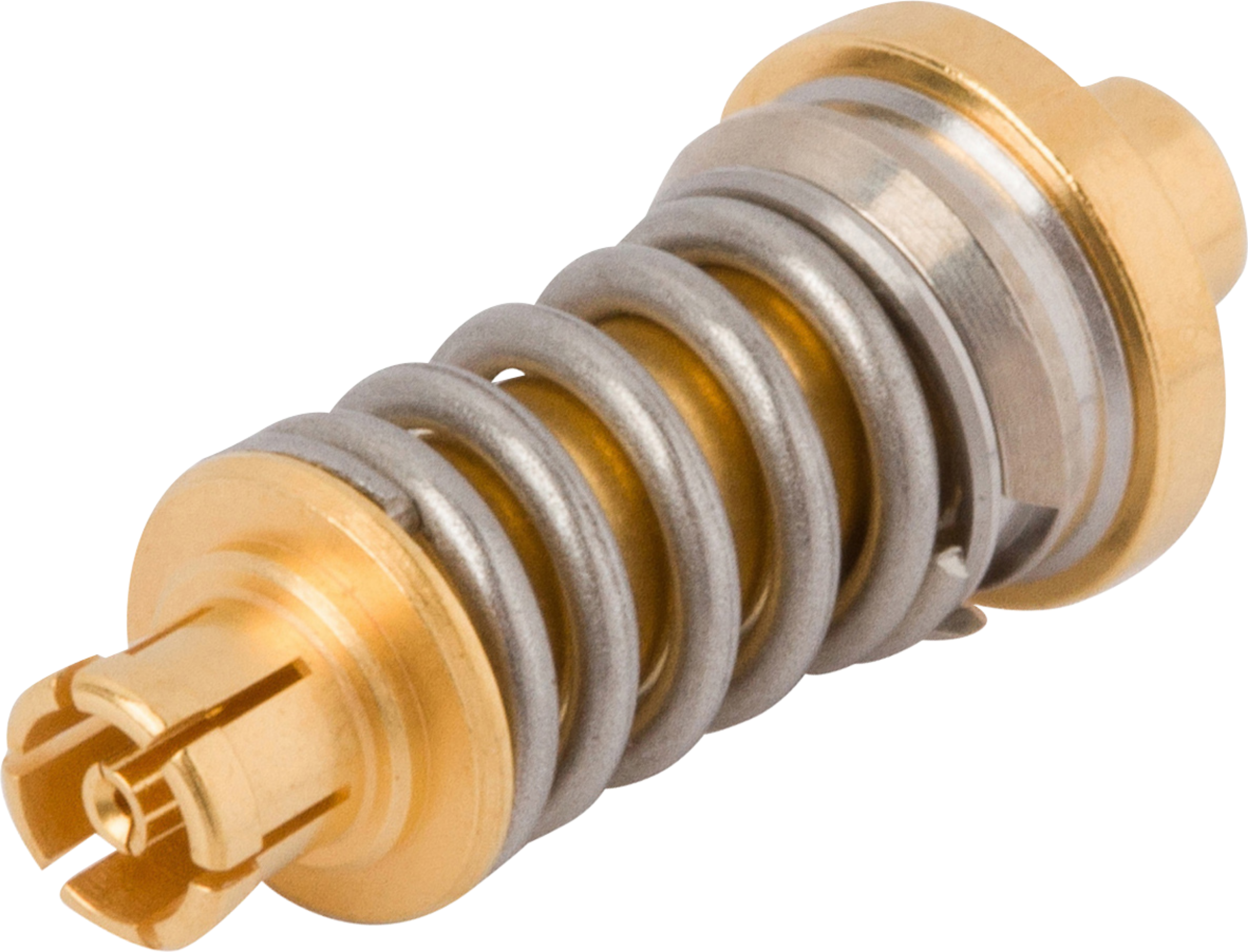

SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable

Available Inventory: 618
3221-40022
VITA Connectors 3221-40022
Datasheet
7032-7159

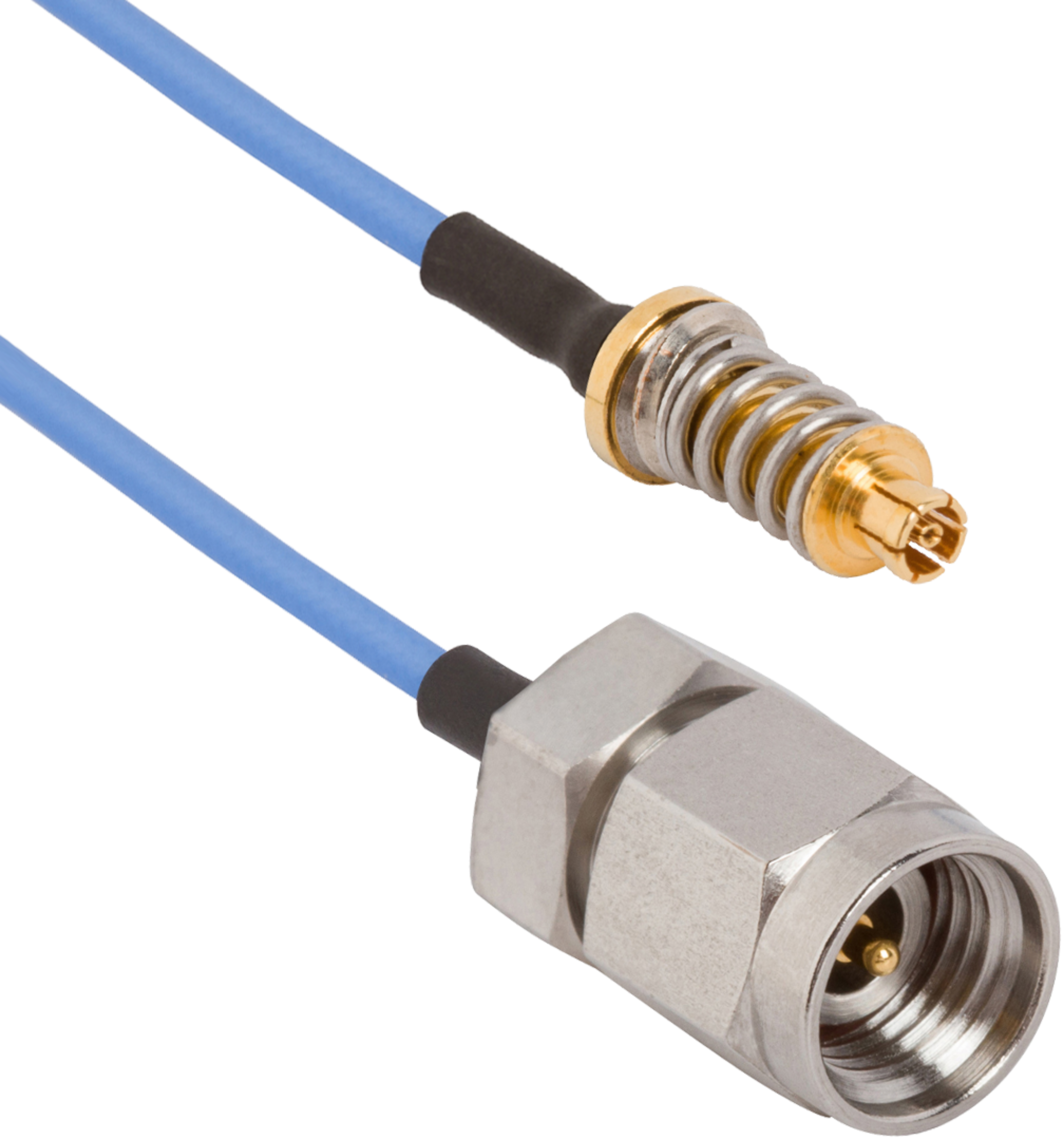

VITA Cable Assemblies 7032-7159
Datasheet
Part #   3221-40071

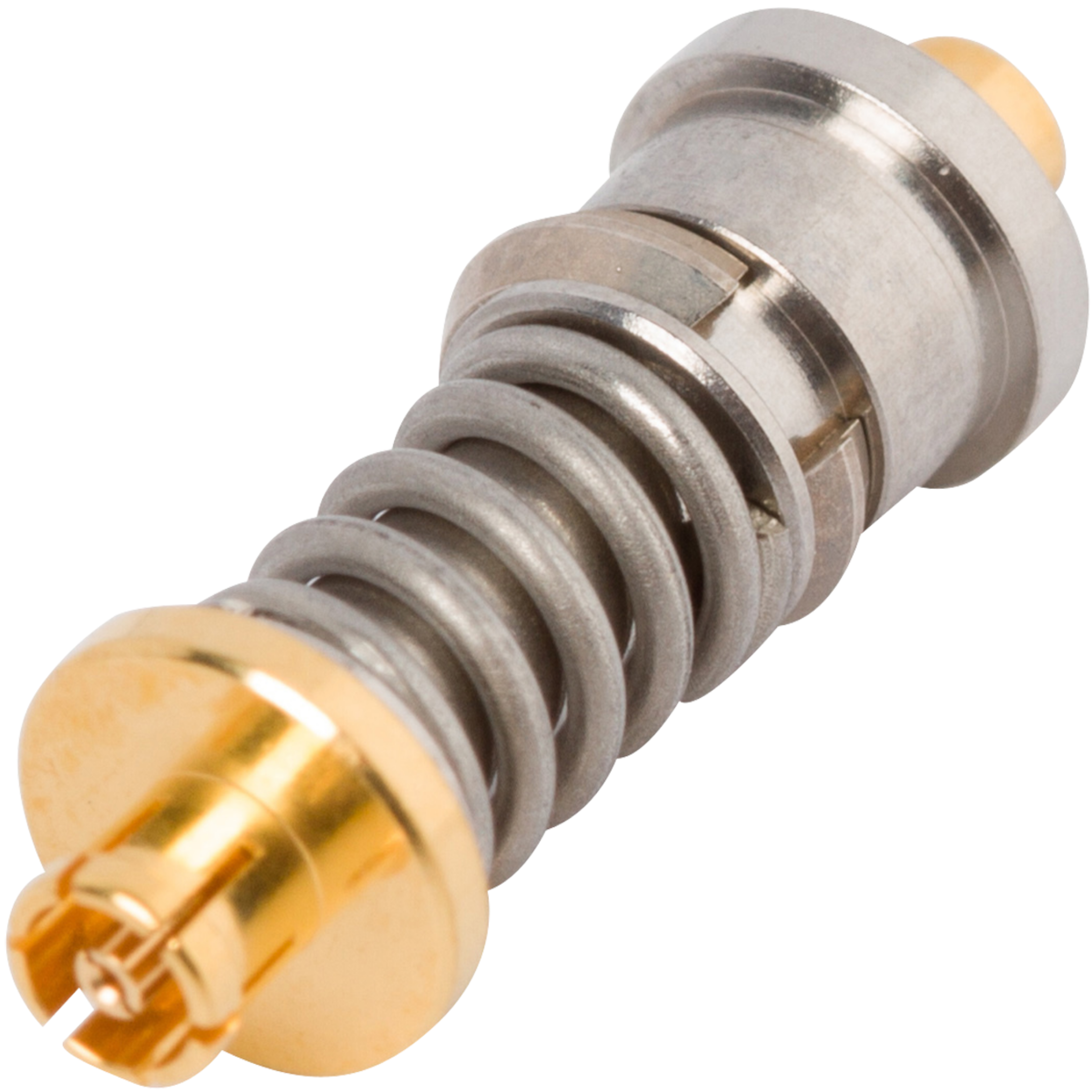

SMPM Female VITA 67.3 Backplane Contact for .047 Cable
