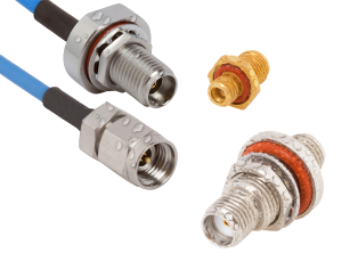

Waterproof (IP68 Rated) RF Cable Assemblies and Interconnects
SV Microwave offers a wide range of IP67 and IP68 waterproof cable assemblies and interconnect products designed to withstand rigorous environments and harsh elements. SV's waterproof cable assemblies include o-ring sealed connectors to 1 x 10-8 cc/sec, making them ideal for high pressure, harsh environment applications and for the prevention of dust, liquid or gas leakage. SV's waterproof adapters include hermetically sealed connectors to 1 x 10-8 cc/sec, making them ideal for high pressure, vacuum applications and the prevention of liquid or gas leakage. Ingress Protection ratings are used to specify the environmental protection of enclosures and casings around electronic products.
Features / Benefits:
- Eliminate outside elements (i.e. water, air, gas, etc.)
- Ingress Protection (IP) Rating: IP 67 and IP 68
- Ruggedized / Reliable
- Custom configurations available
Applications:
- RF Test and Measurement Boards
- Severe/Harsh Environments
- Military and Aerospace
- Vacuum & Vacuum Test Applications
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
2.92 mm
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Inter-mate ability | SMA |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
PN
| Impedance (Ω) | 50 |
| Frequency GHz | 18 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 3000 VRMS |
| Mating Cycles | 500 |
| Mating Torque | 12 - 15 in - lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMA
| Impedance (Ω) | 50 |
| Frequency GHz | 18 GHz (select models to 26.5 GHz) |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Inter-mate ability | 2.92mm |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMP
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Mating Cycles - SB | 1000 |
| Mating Cycles - LD | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Product Video
SF1115-6072
2.92mm Adapters SF1115-6072
Part # 7015-1050
2.92mm Female Waterproof (IP68 Rated) Bulkhead to 2.92mm Male 12" Cable Assembly for .085 Cable
Available Inventory: 29
7015-1050
2.92mm Cable Assemblies 7015-1050
Part # 7015-1074
2.92mm Female Waterproof (IP68 Rated) Bulkhead to 2.92mm Male 6" Cable Assembly for .085 Cable
Available Inventory: 45
7015-1074
2.92mm Cable Assemblies 7015-1074
Part # 7015-1051
2.92mm Male to 2.92mm Male Waterproof (IP68 Rated) 12" Cable Assembly for .085 Cable
Available Inventory: 58
7015-1051
2.92mm Cable Assemblies 7015-1051
Part # 7015-1073
2.92mm Male to 2.92mm Male Waterproof (IP68 Rated) 6" Cable Assembly for .085 Cable
Available Inventory: 39
7015-1073
2.92mm Cable Assemblies 7015-1073
SF2991-6002
SMA Adapters SF2991-6002
SF1104-6007
SMA Adapters SF1104-6007
Part # 7029-3530
SMA Female Waterproof (IP68 Rated) Bulkhead to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 136
7029-3530
SMA Cable Assemblies 7029-3530
Part # 7029-3574
SMA Female Waterproof (IP68 Rated) Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
Available Inventory: 69
7029-3574
SMA Cable Assemblies 7029-3574
Part # 7029-3531
SMA Male to SMA Male Waterproof (IP68 Rated) 12" Cable Assembly for .085 Cable
Available Inventory: 50
7029-3531
SMA Cable Assemblies 7029-3531
Part # 7029-3573
SMA Male to SMA Male Waterproof (IP68 Rated) 6" Cable Assembly for .085 Cable
Available Inventory: 17
7029-3573
SMA Cable Assemblies 7029-3573
SF1112-6162
SMP Adapters SF1112-6162
Part # SF1132-6094
SMPM Male to 2.92mm Female Bulkhead Hermetic Adapter, FD
Available Inventory: 210
SF1132-6094
SMPM Adapters SF1132-6094
SF1132-6093
SMPM Adapters SF1132-6093
