P/N: SF8711-6005

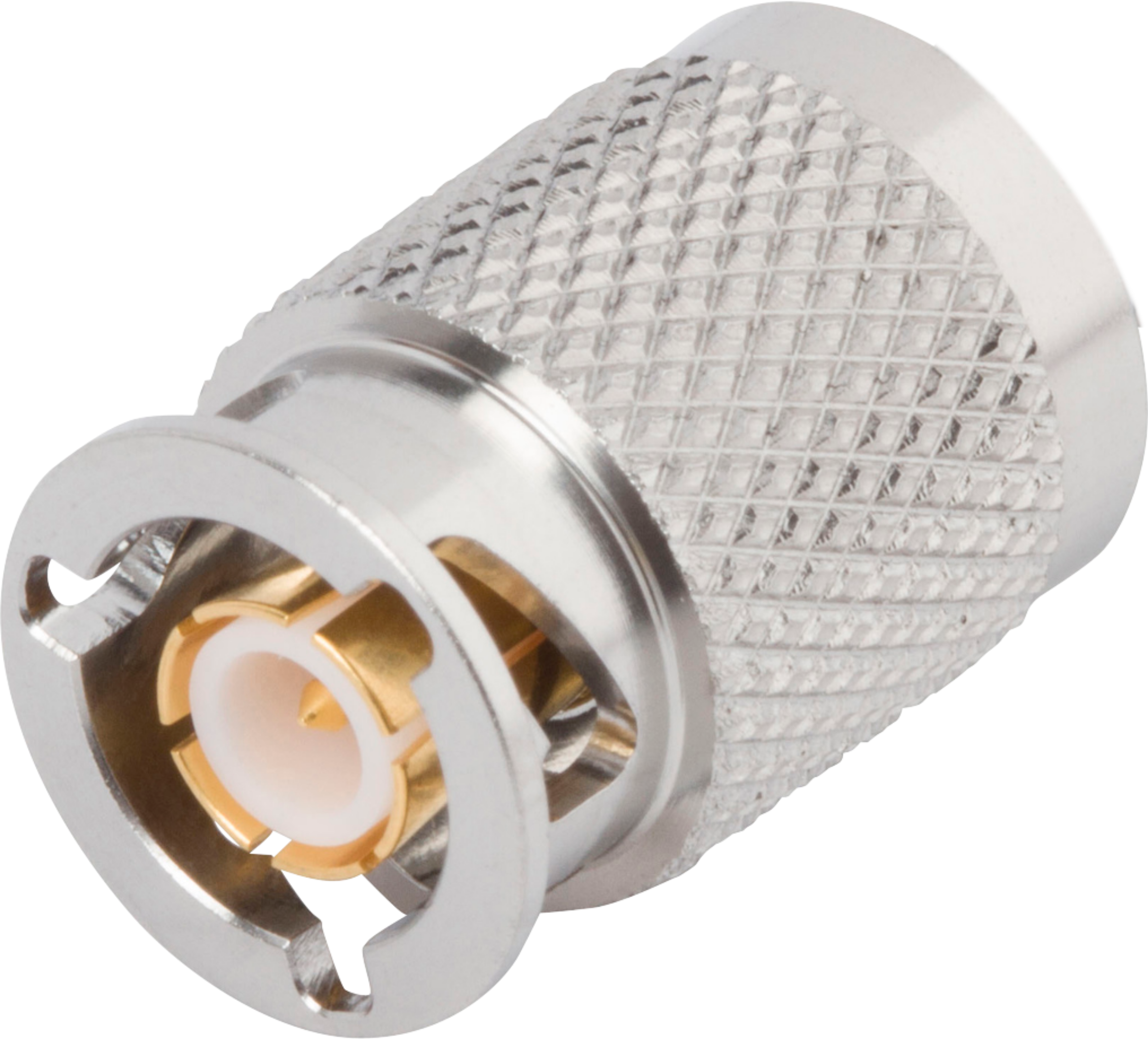

ZMA Male (110°|140°|110°) Connector for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Keyed
Keyed Subtype 110-140-110
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Number of Ports Single
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 2500 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
