P/N: SF8711-6002

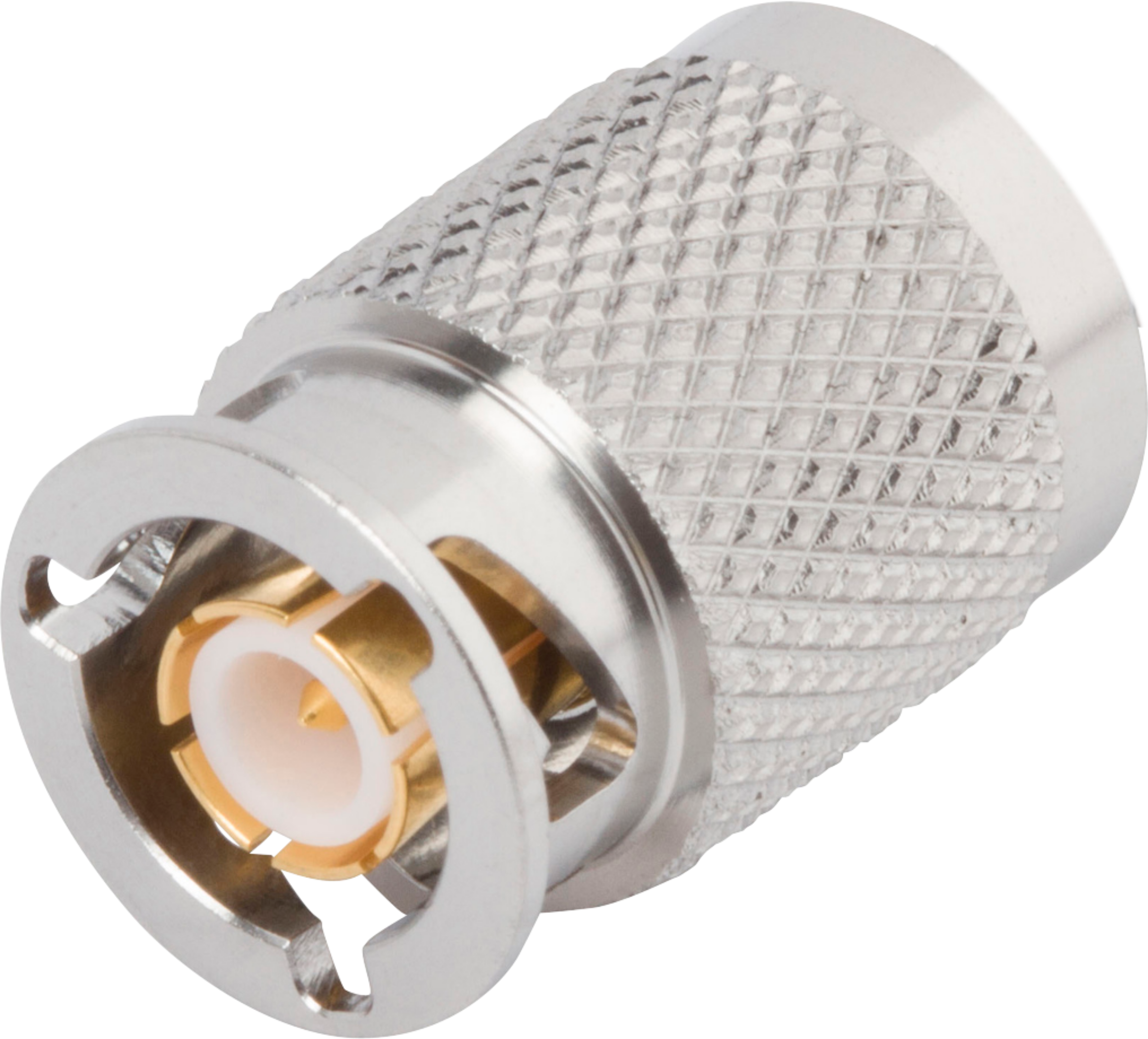

ZMA Male (90°) Connector for .085 Cable

In stock at Qty Order
Master Electronics 17
Products specifications
Attribute name Attribute value
RF Series ZMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Keyed
Keyed Subtype 90-90-90-90
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
