P/N: SF8711-6003

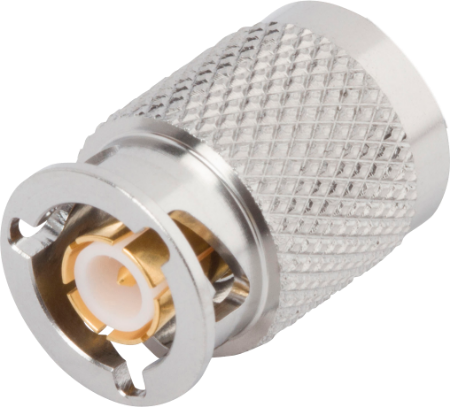

ZMA Male (120°) Connector for .085 Cable

In stock at Qty Order
Master Electronics 19
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Gender Plug (Male)
Termination Style Solder
Coupling Keyed
Keyed Subtype 120-120-120
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 2500 VRMS
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Gender Plug (Male)
Termination Style Solder
Coupling Keyed
Keyed Subtype 120-120-120
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 2500 VRMS
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF8711-6002

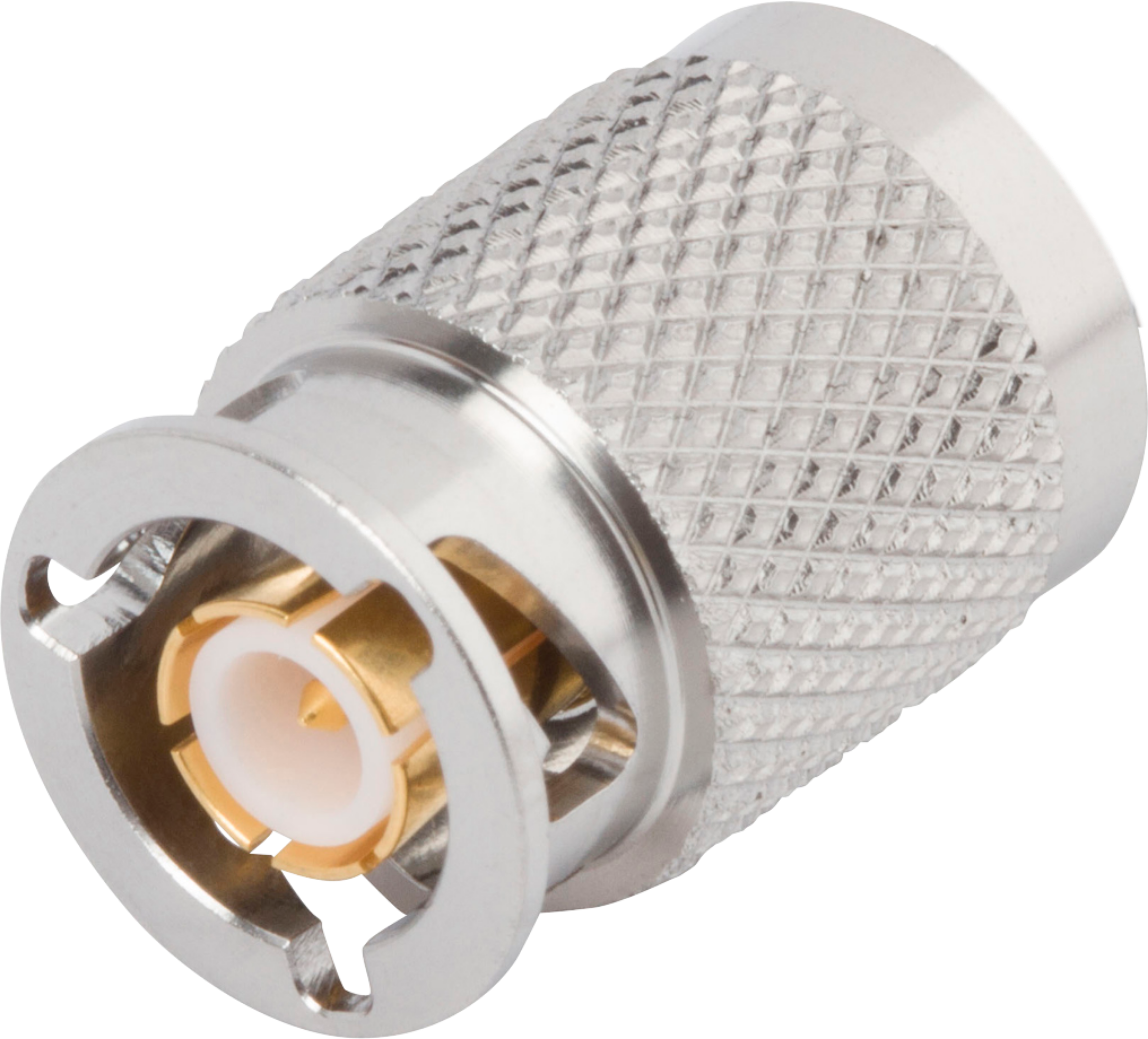

ZMA Male (90°) Connector for .085 Cable
